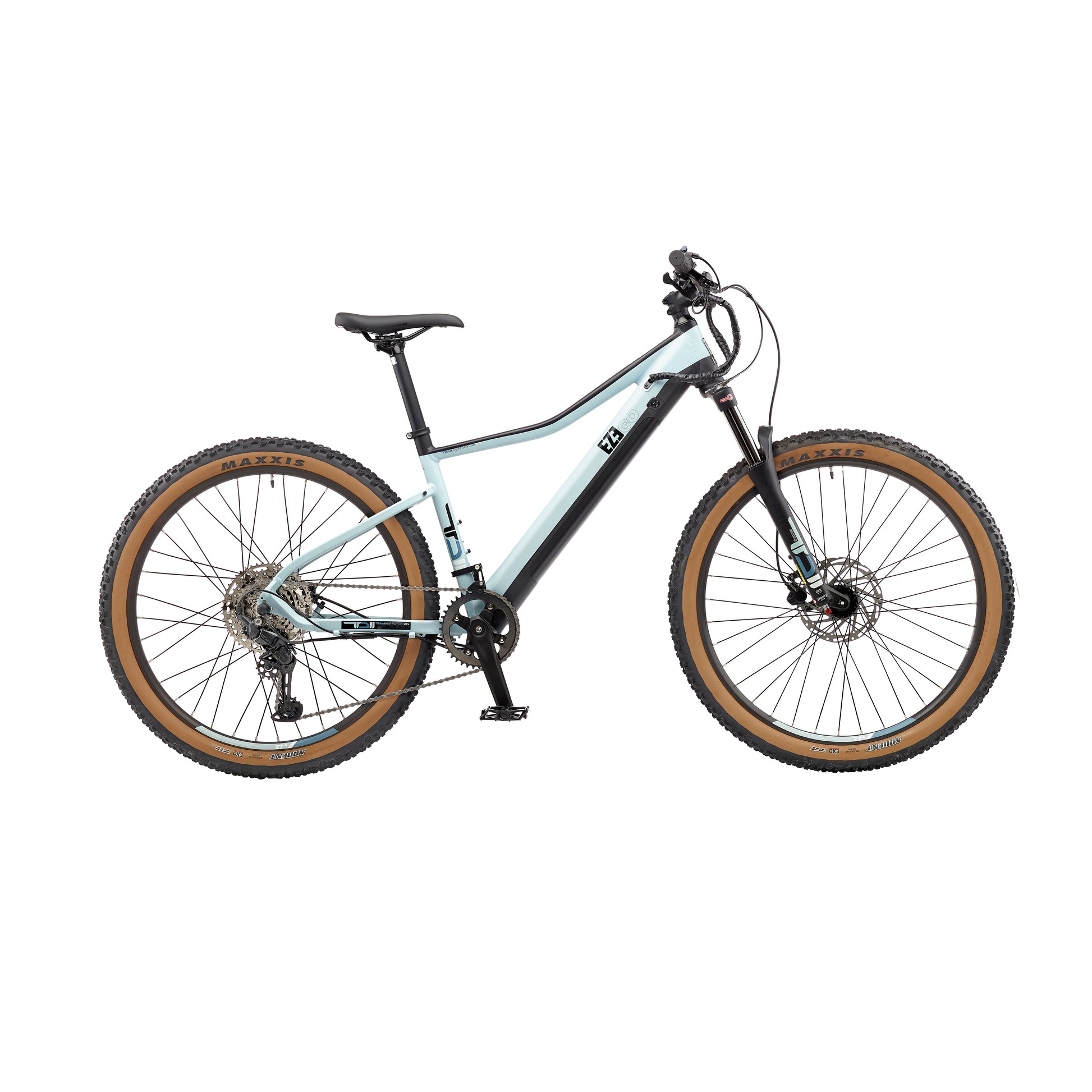

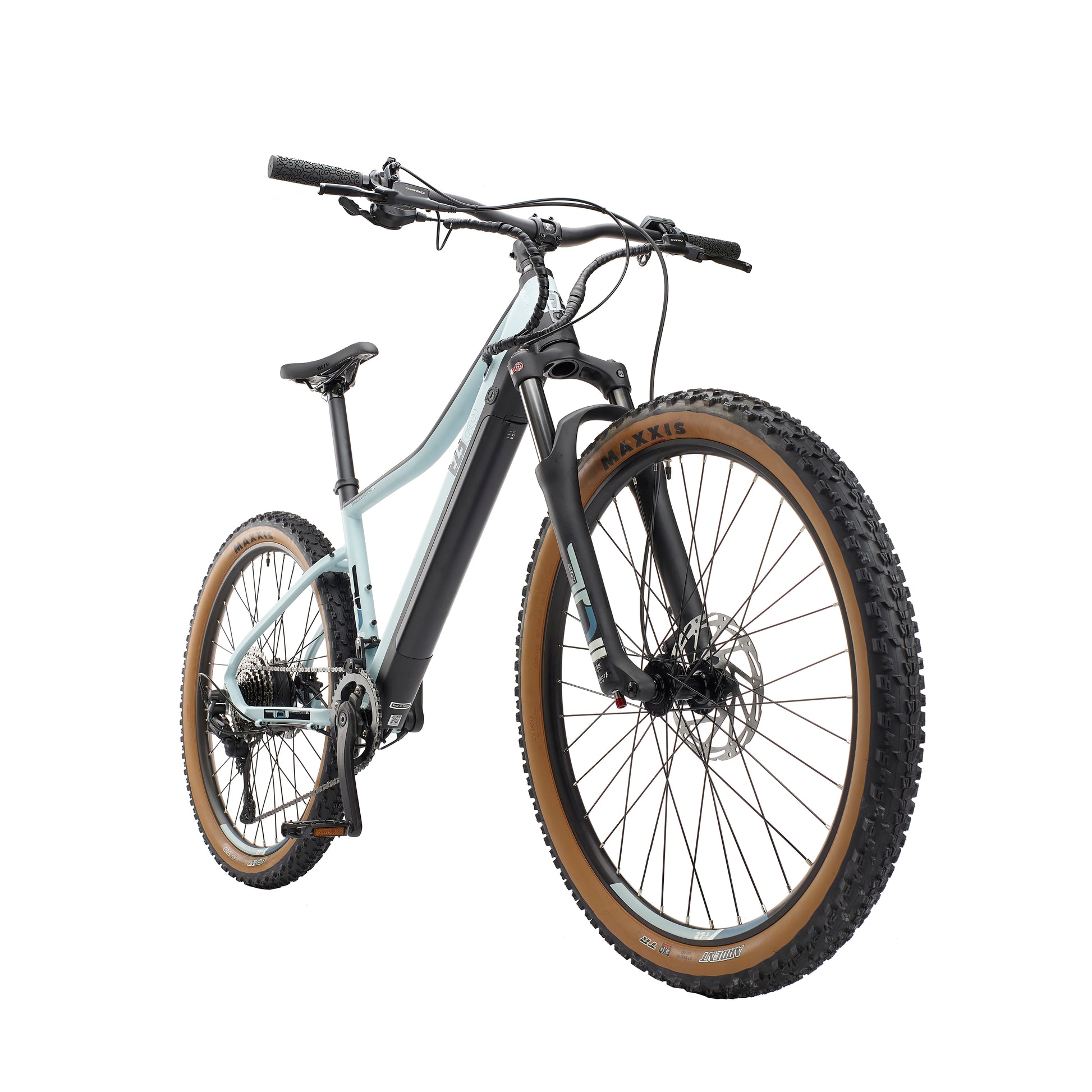

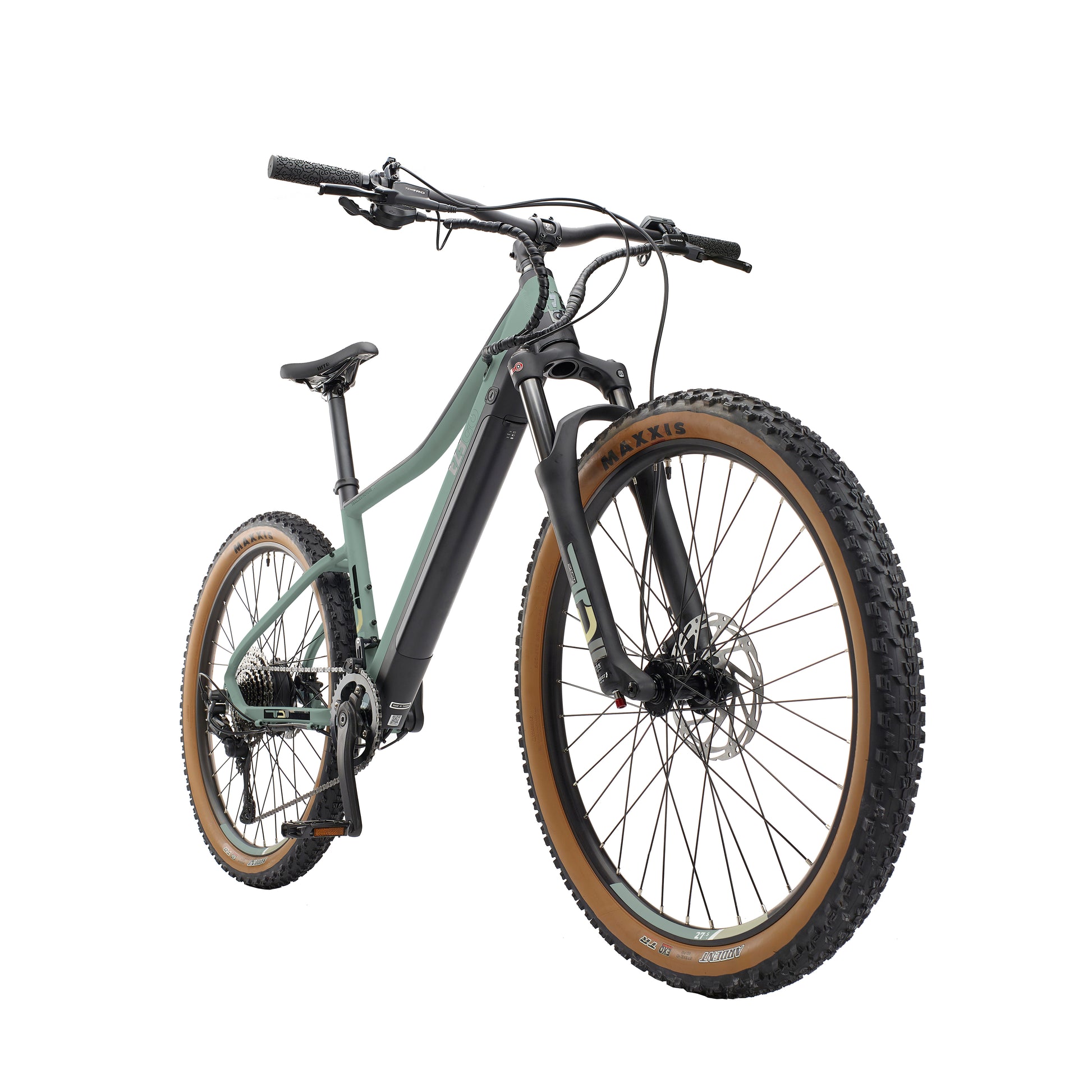

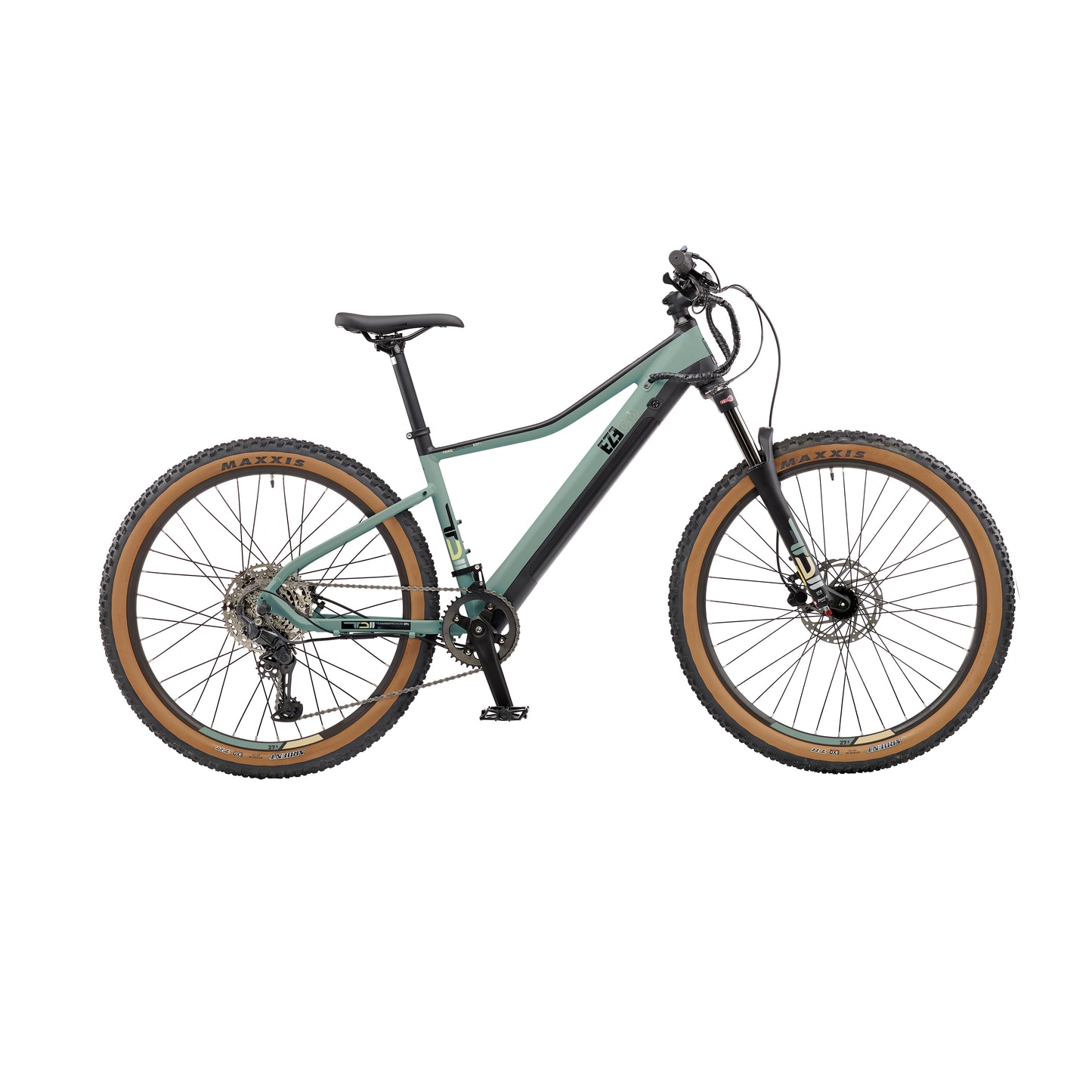

The Trail Destroyer’s big brother, and our flagship model. Deore 10 speed, 120mm travel air suspension and bigger, better Maxxis tyres. Rugged and all terrain, this e-bike does exactly as it’s name suggests. Our short stem and extra wide 780mm handlebars allow for precise handling, even over the roughest terrain, where you will be kept gripped to those tracks on real mountain bike tyres. We have also increased the spoke gauge to provide our strongest wheels yet, anticipating the punishment you would expect from a true mountain bike rider.
Electric System

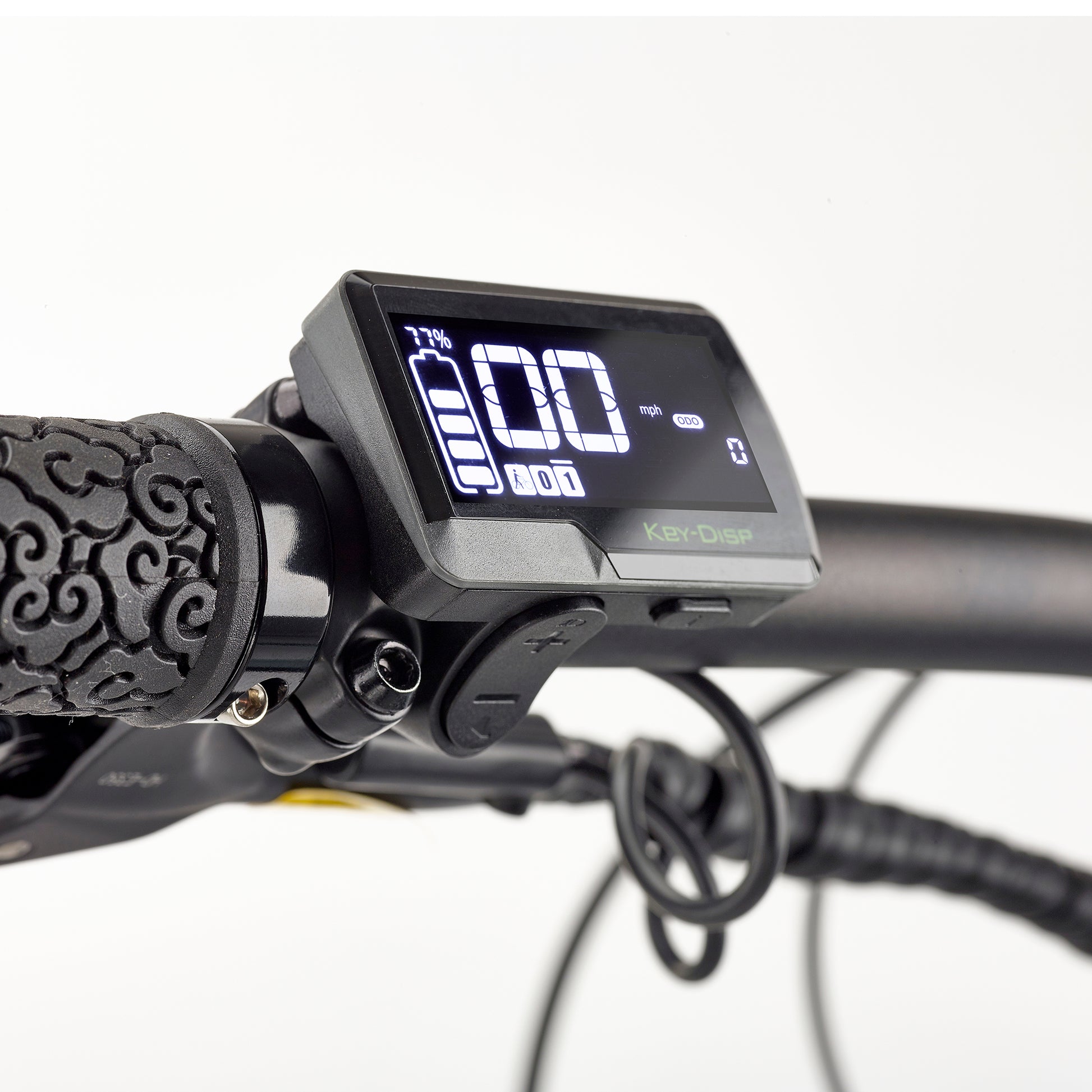

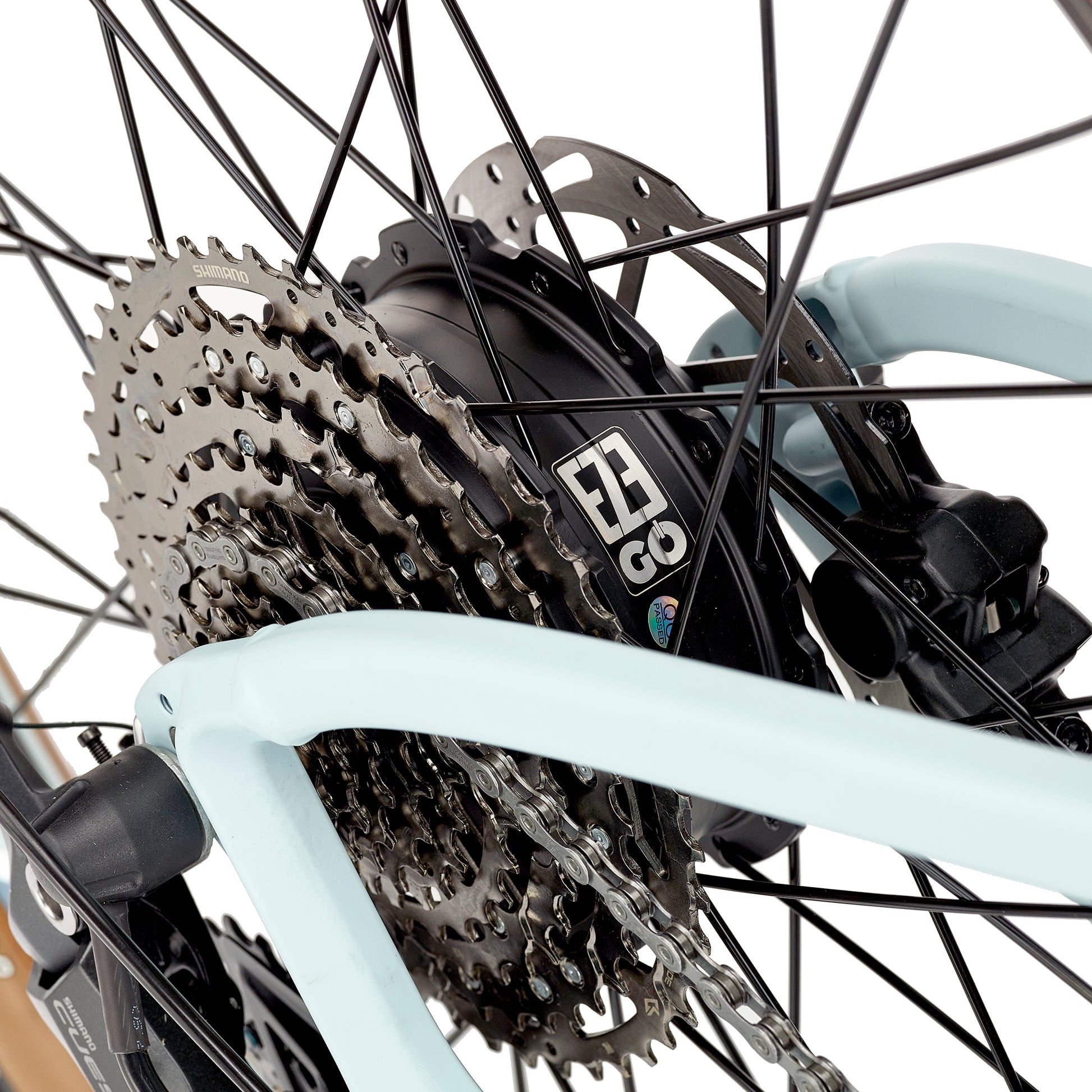

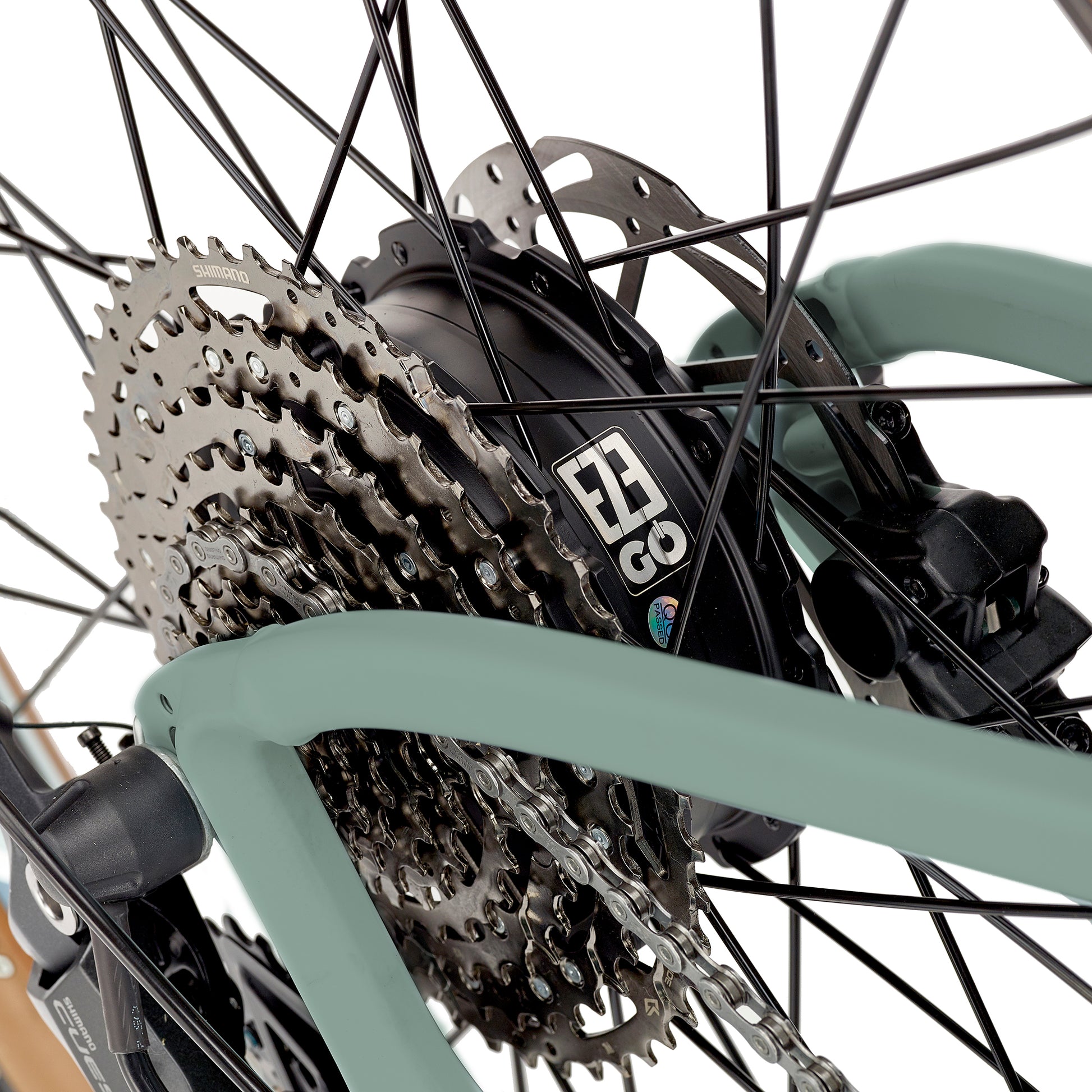

Motor 250w 36v rear hub brushless gear drive Torque Powerful 45Nm regulated to 15.5mph Battery 504Wh (14Ah) 36v internal with LG / Samsung cells Controller 540Wh (15Ah) 36v with throttle cable option Sensor 12 magnetic point speed sensor Display 5 mode LCD module with walk assist Charger 2Ah 36v smart charger - 4 hours charge time Cables Waterproof IP67 with quick connectors
Frameset

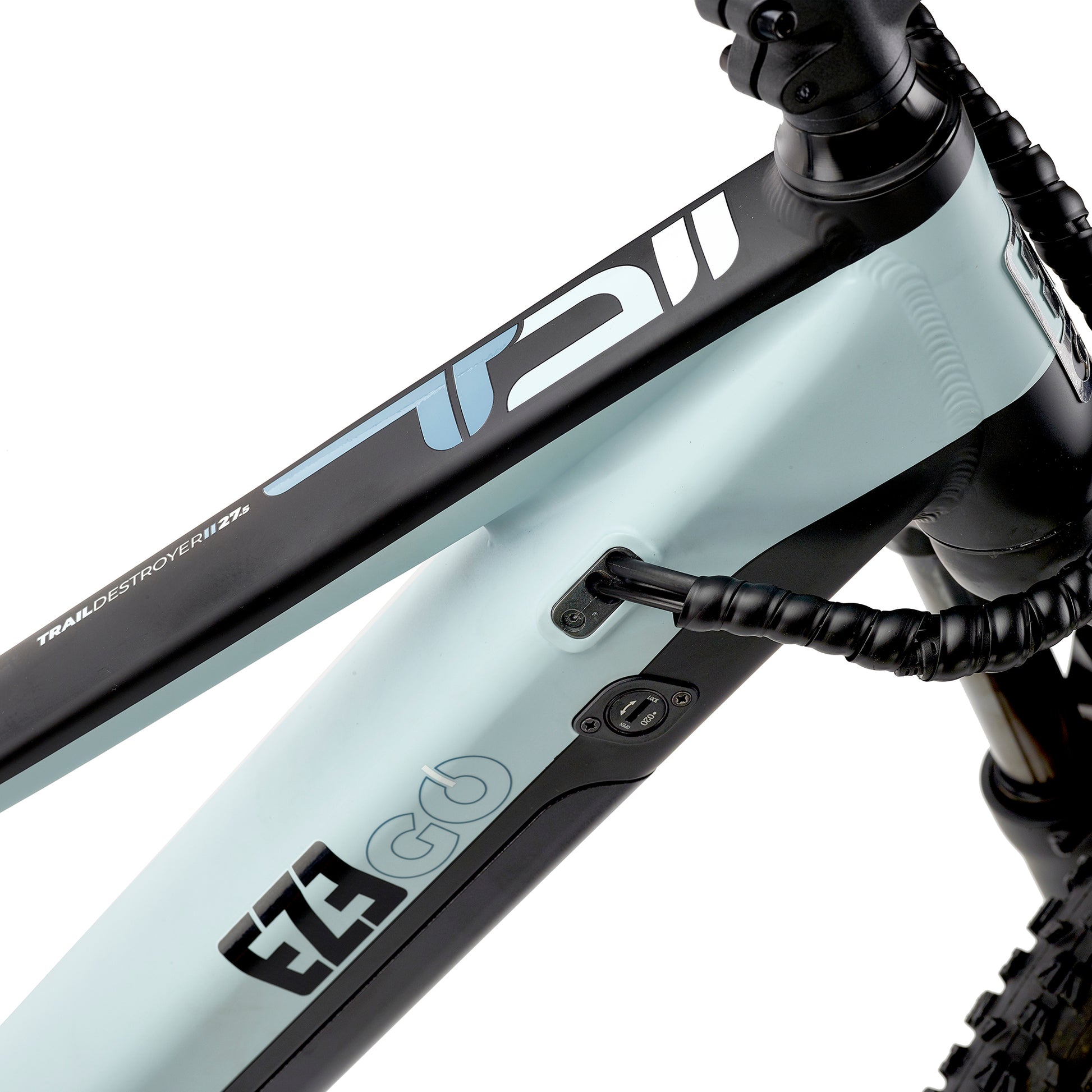

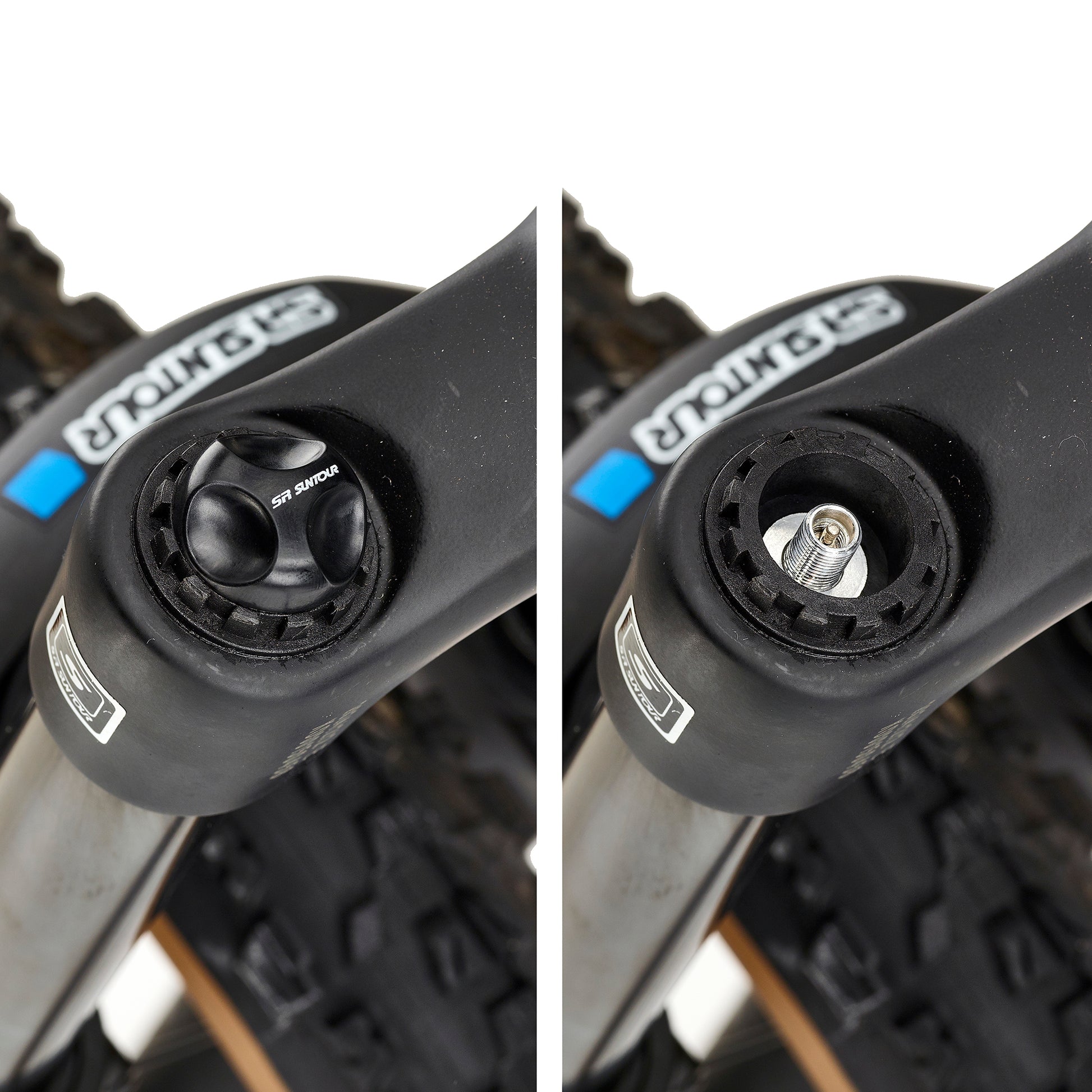

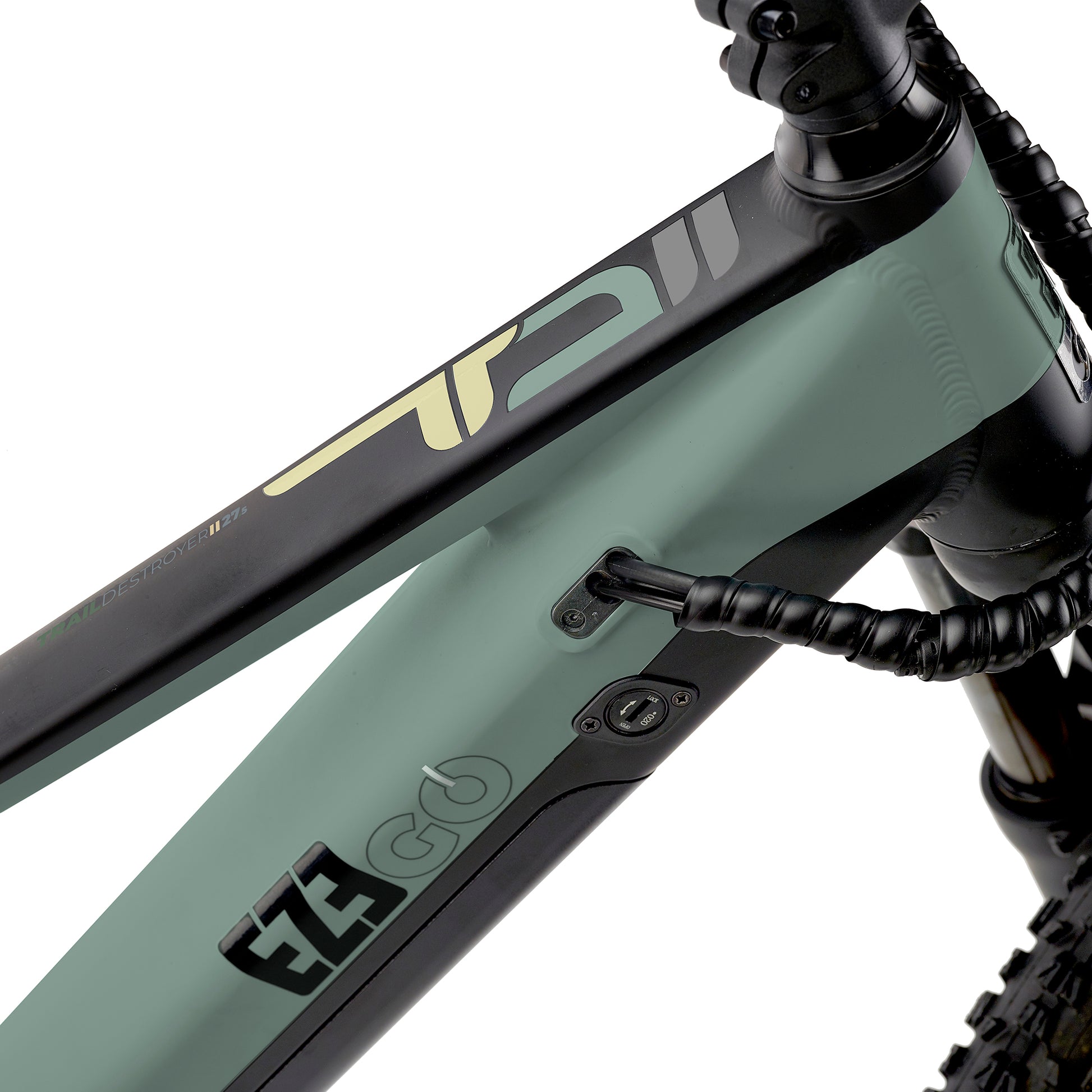

Frame Sizes 15" / 17" / 19" Colours Ice Blue / Army Green Frame Alloy eMTB with internal routed cables & battery Fork SR Suntour X1 Air Boost with Thru Axle and Remote Lockout
Components

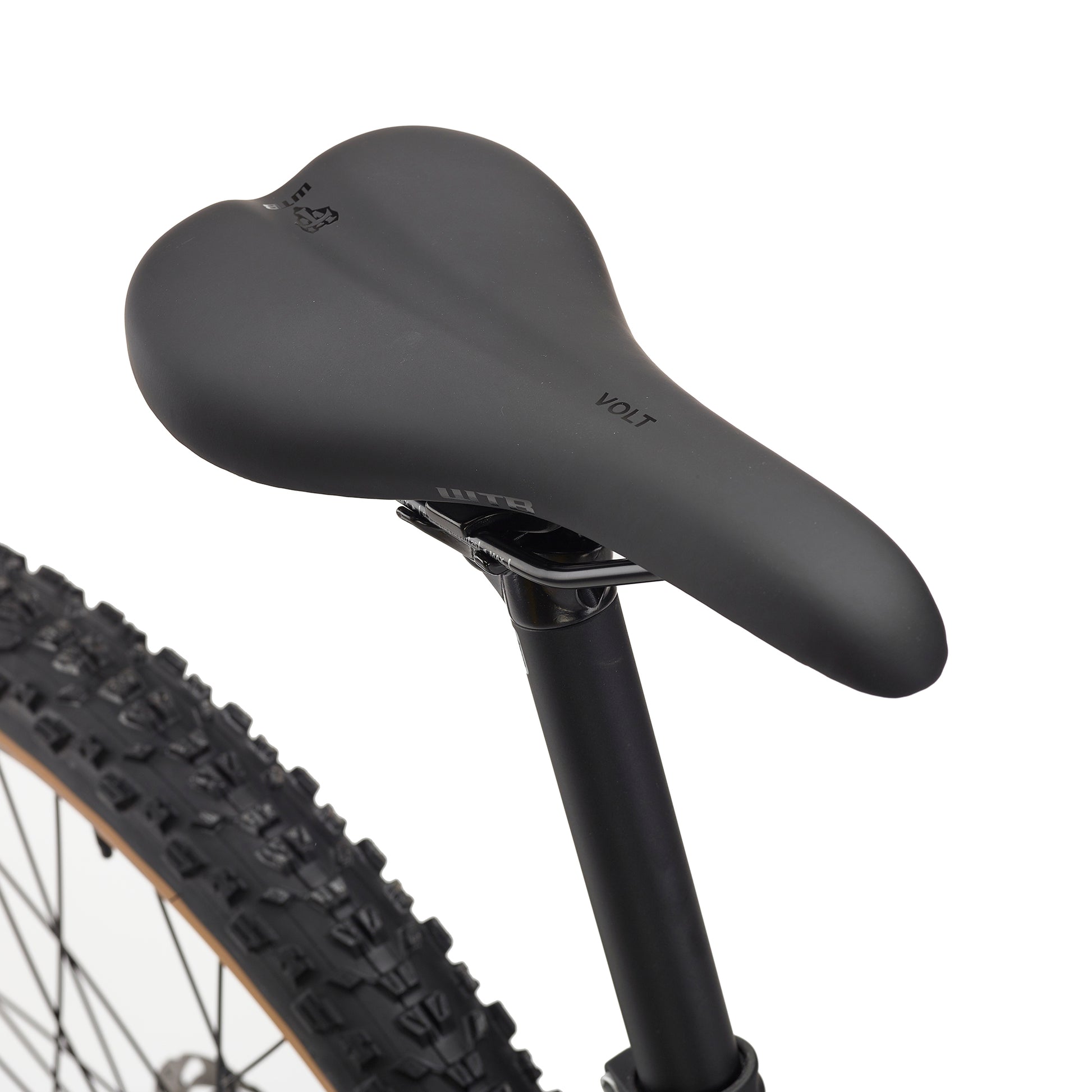

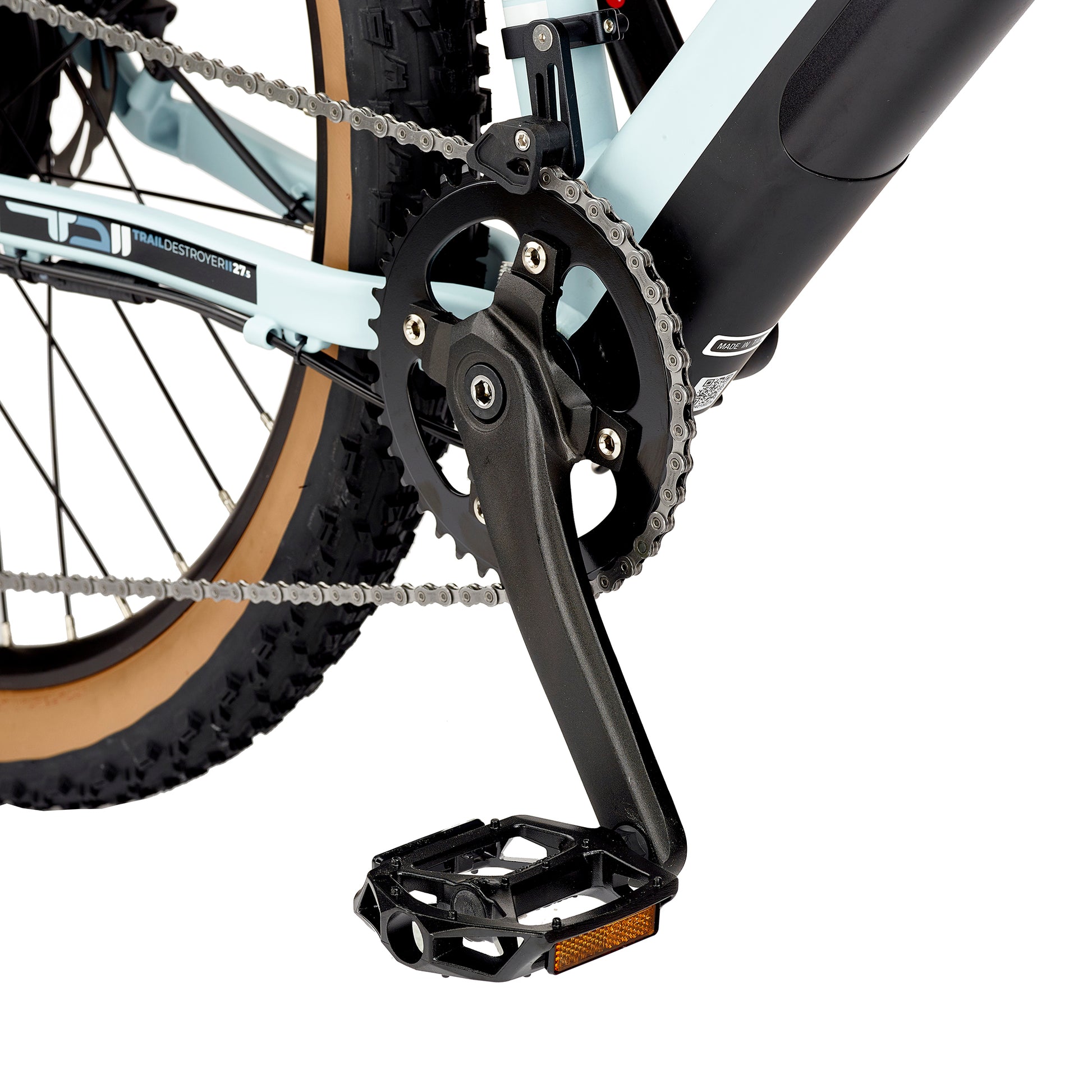

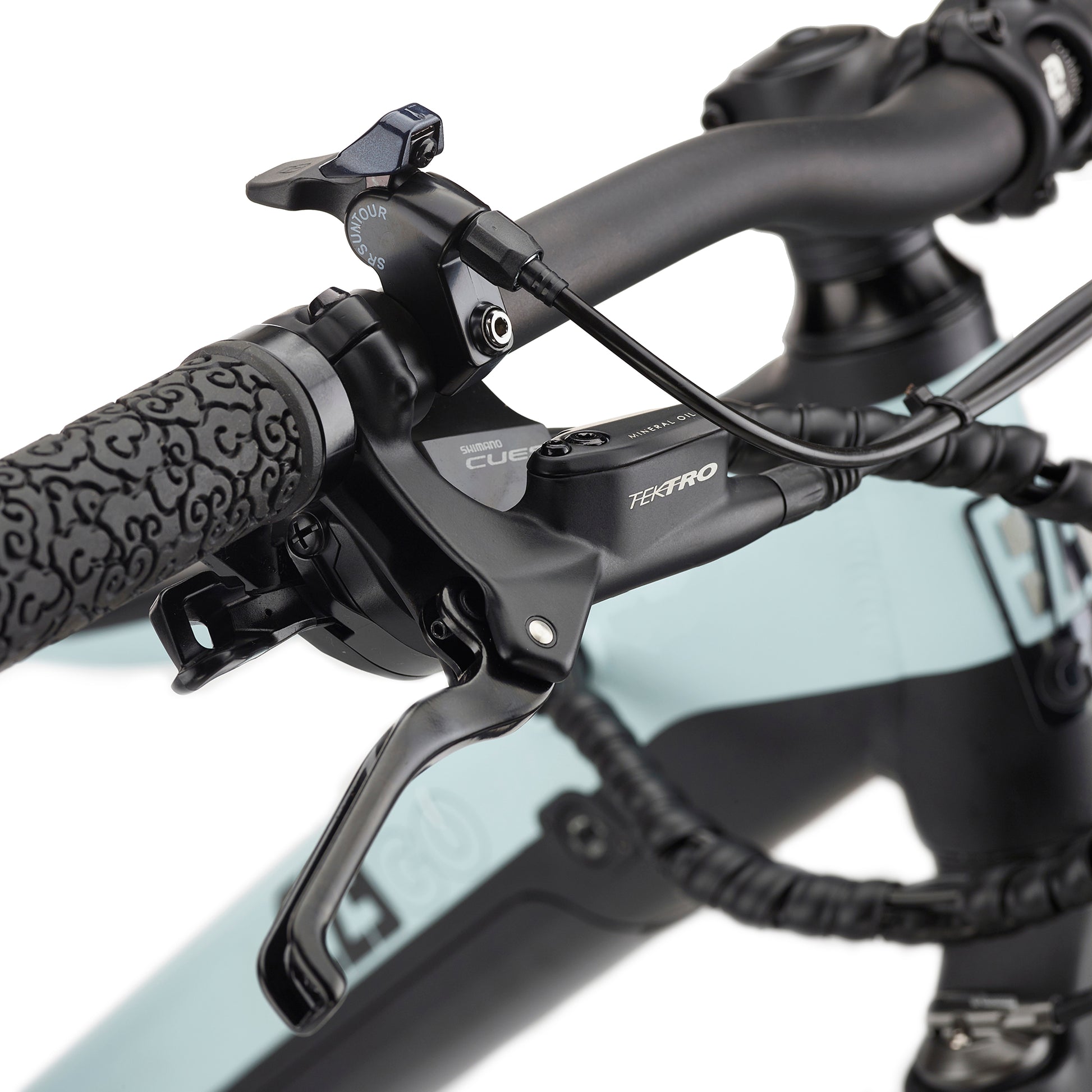

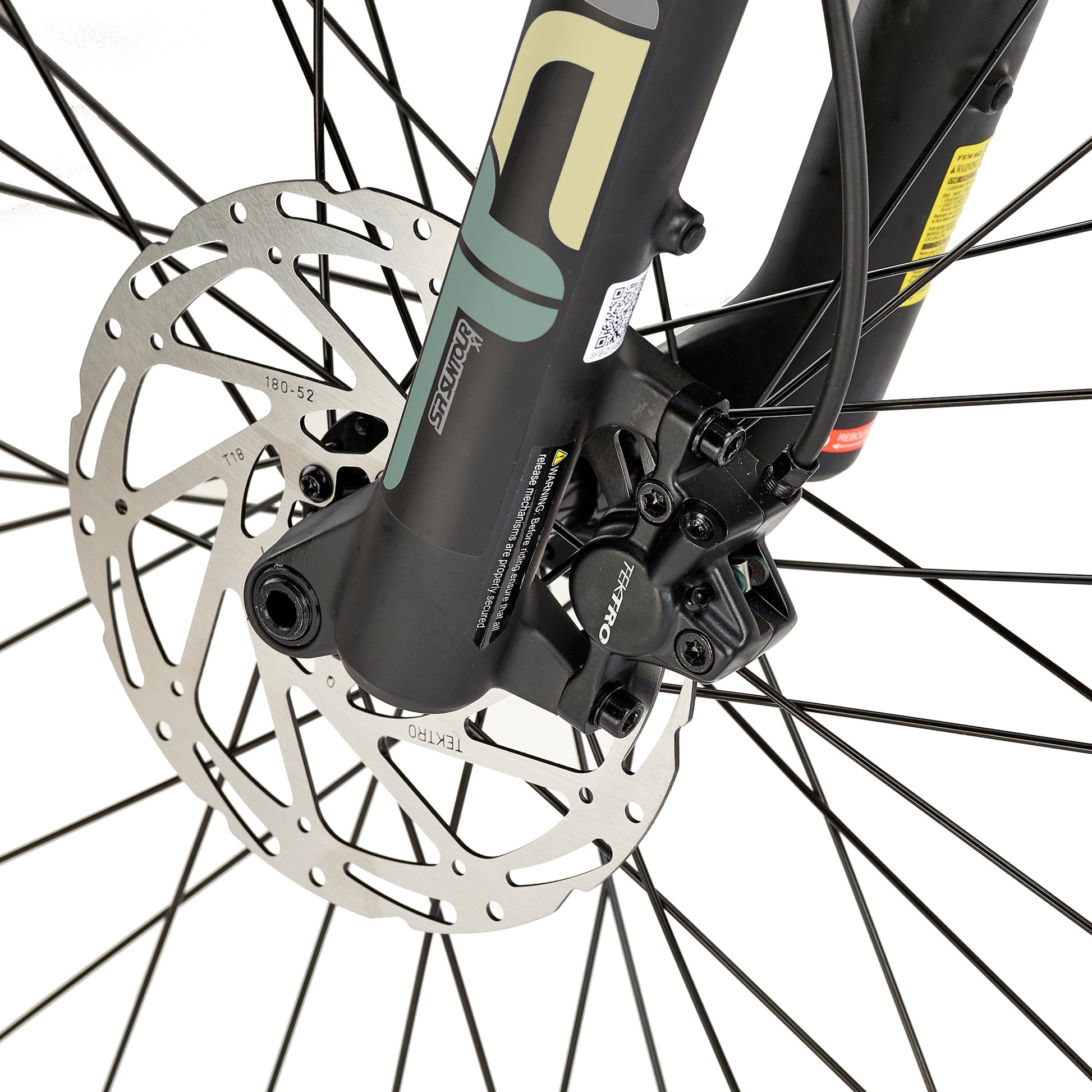

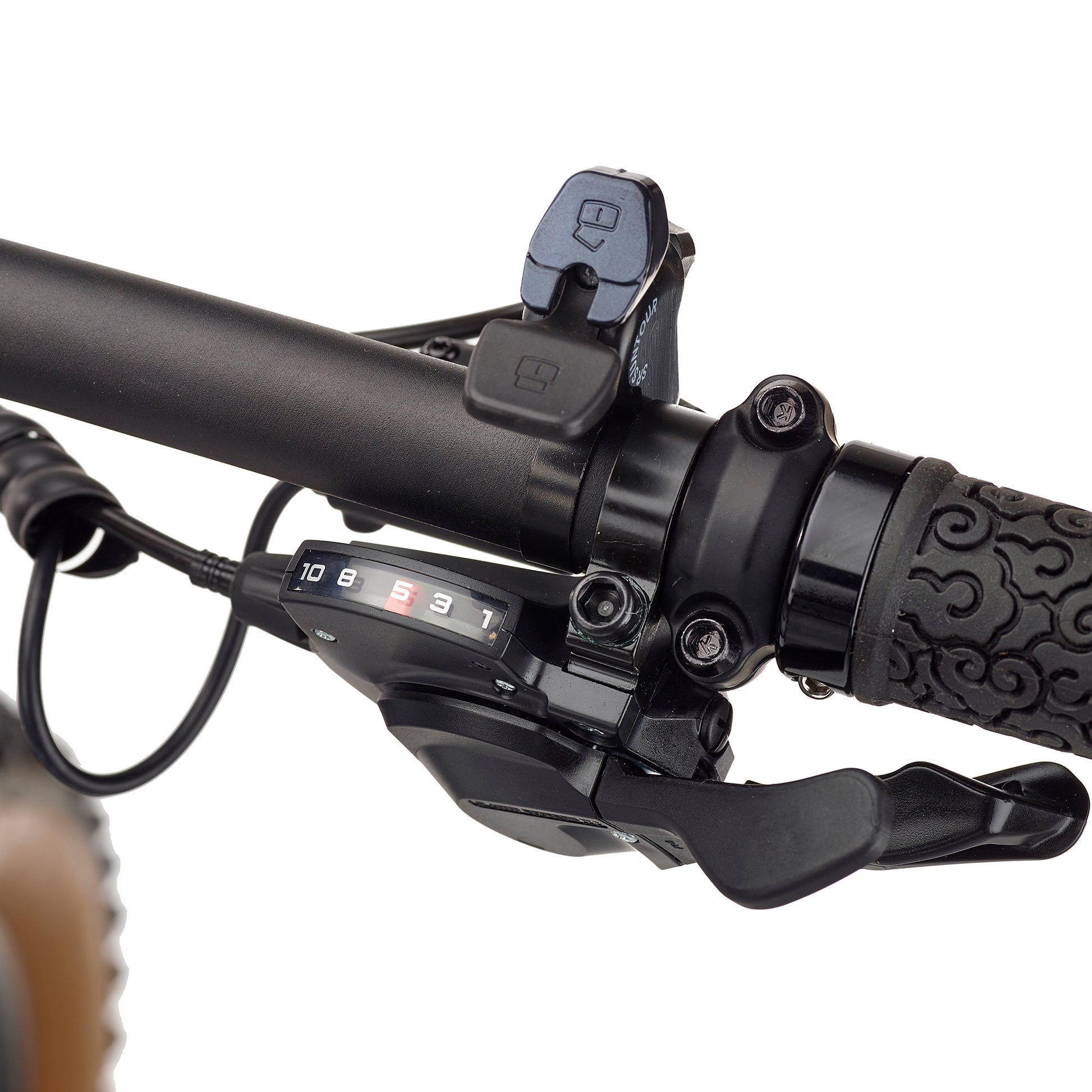

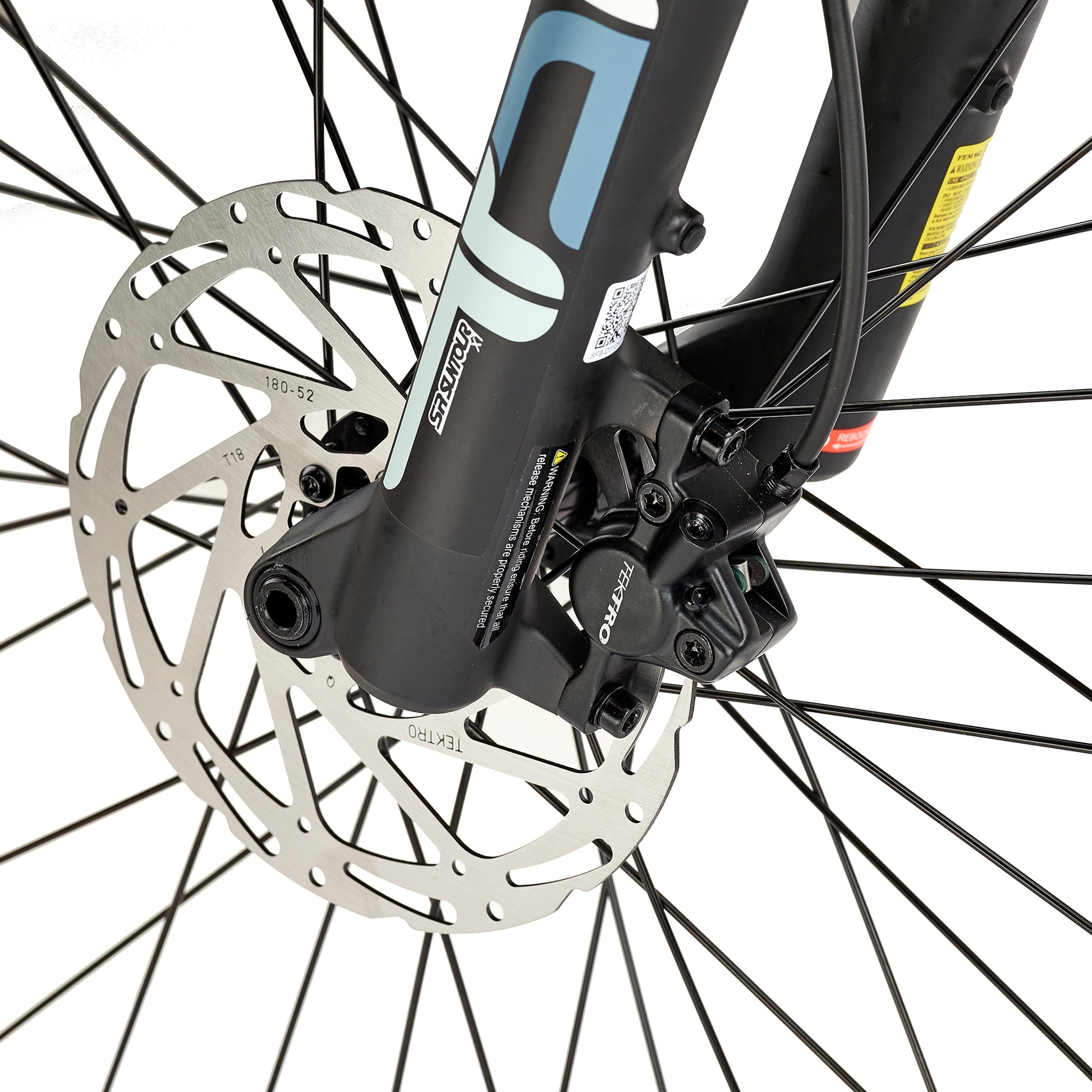

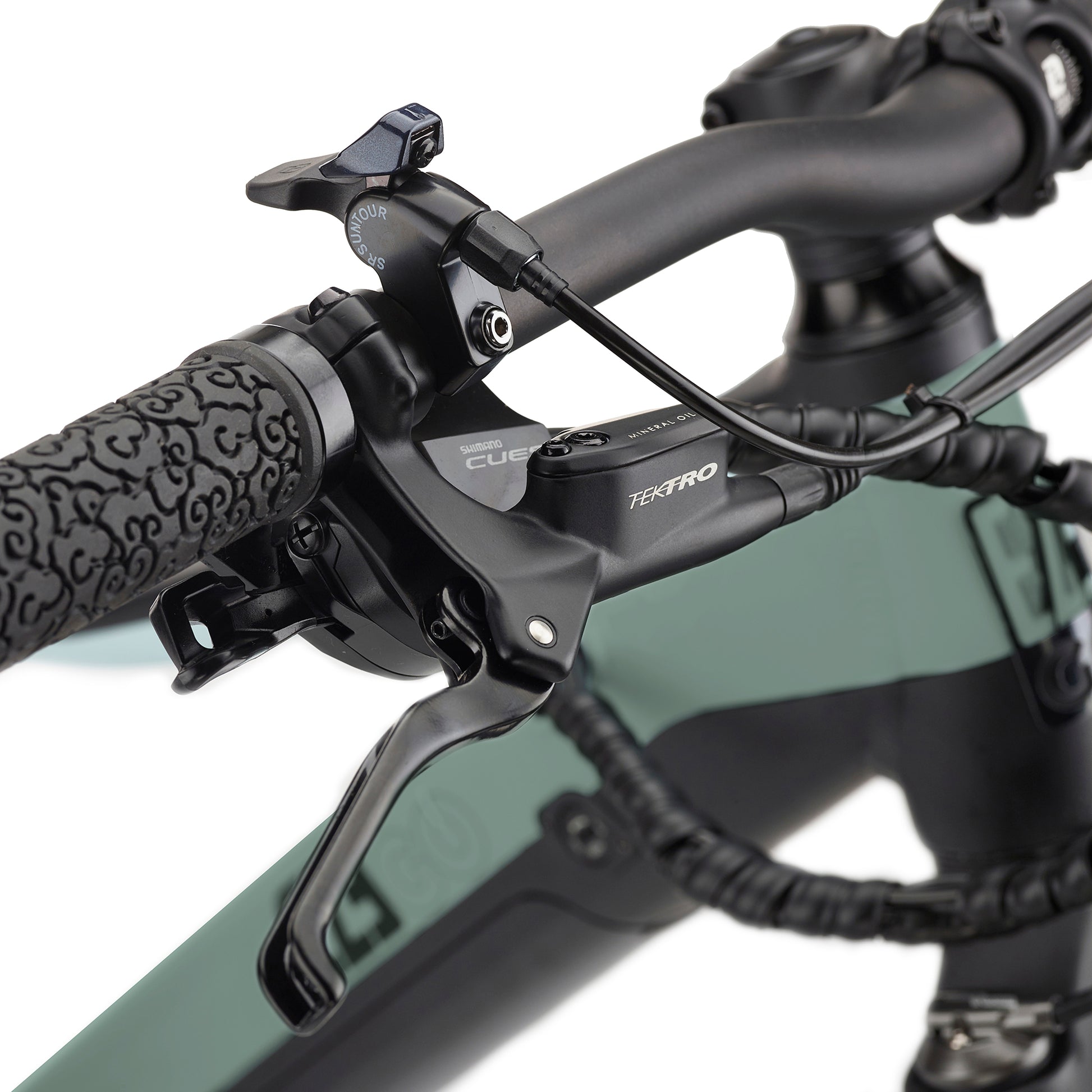

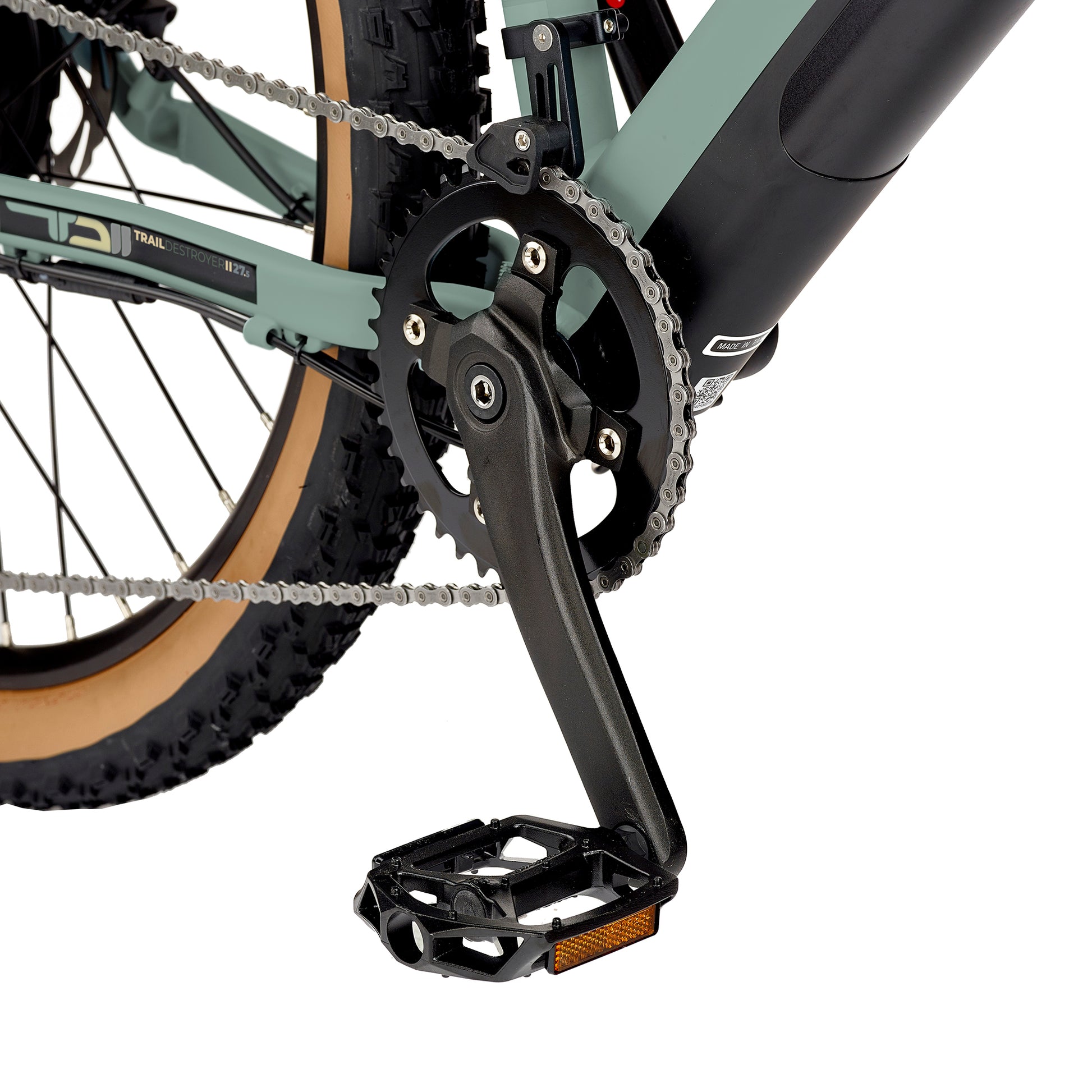

Brakes Tektro hydraulic disc brakes Brake Levers Alloy 2 finger with safety power cut-off Brake Rotors 180mm front & 160mm rear Gear Shifters Shimano CUES 10 Speed Gear Derailleur Shimano CUES Cassette Shimano CUES 11-48T Chainset Alloy 40 tooth 175mm Pedals Alloy flat Bottom Bracket Sealed cartridge Chain KMC anti-rust Tyres Maxxis Ardent 27.5 x 2.4 Tanwall TR Ready Foldable Inner Tubes High pressure Presta valve Rims Alloy double wall 36 hole Front Hub Alloy thru axle with sealed bearings Spokes Stainless with brass nipples - 13 gauge front / 12 gauge rear Saddle WTB Rocket Seat Post Alloy dual adjust 350mm Seat Clamp Alloy with allen key bolt Handlebar Alloy 780mm - 31.8 bar bore Stem Alloy 50mm Grips Velo double density MTB with lockrings Headset Alloy semi-integrated with 3 spacers
Information
Total Weight 21kgs eBike Weight 17.5kgs Battery Weight 3.5kgs Battery Life 75% after 500 cycles / 70% after 1000 cycles Assembly 99% - attach pedals, straighten / tighten handlebars
Warranty
Battery 500 cycles (approx. 2 years) Electrics 1 year Components 1 year (except wear & tear items)
Upgrades Available
Display TFT / TFT Centre Mount Charger 4Ah fast charger & car adaptor travel charger Pedals Alloy lightweight
