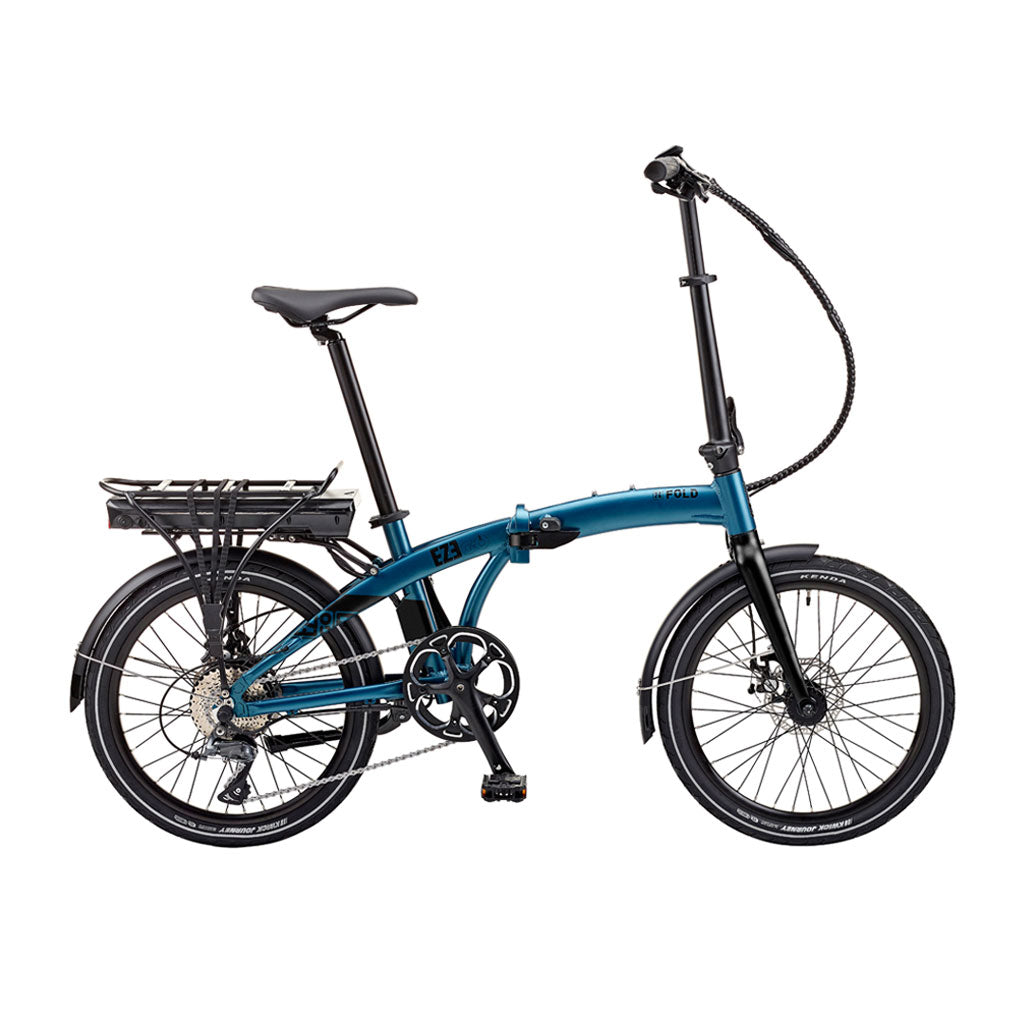

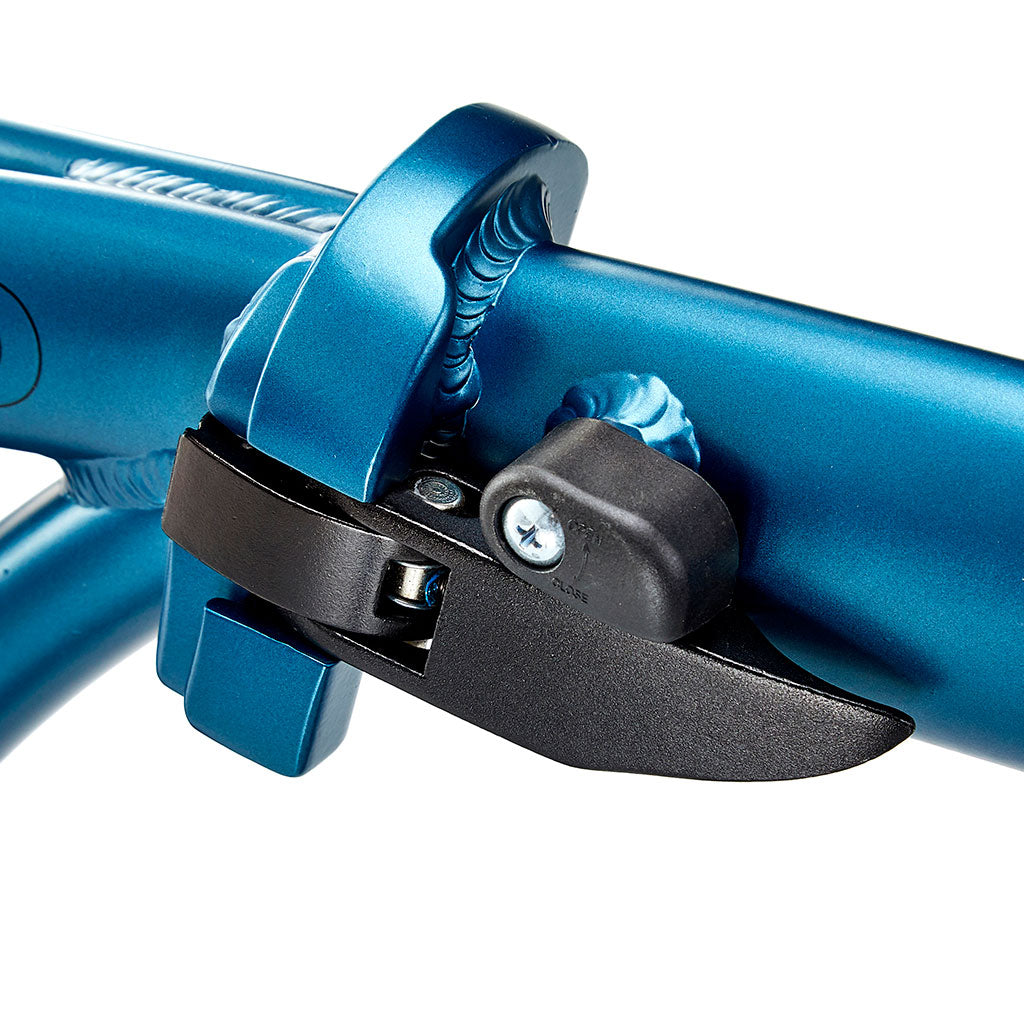

The Fold does as the name suggests. This nippy little e-bike has quick release mechanisms to fold the frame, the handlebar, and to lower the saddle, to bring this bike down to a tiny 83cm x 67cm x 47cm in 4 simple steps.
One of the lightest in it’s class, all the components on the Fold have been carefully selected for optimal performance and low weight.
Electric System

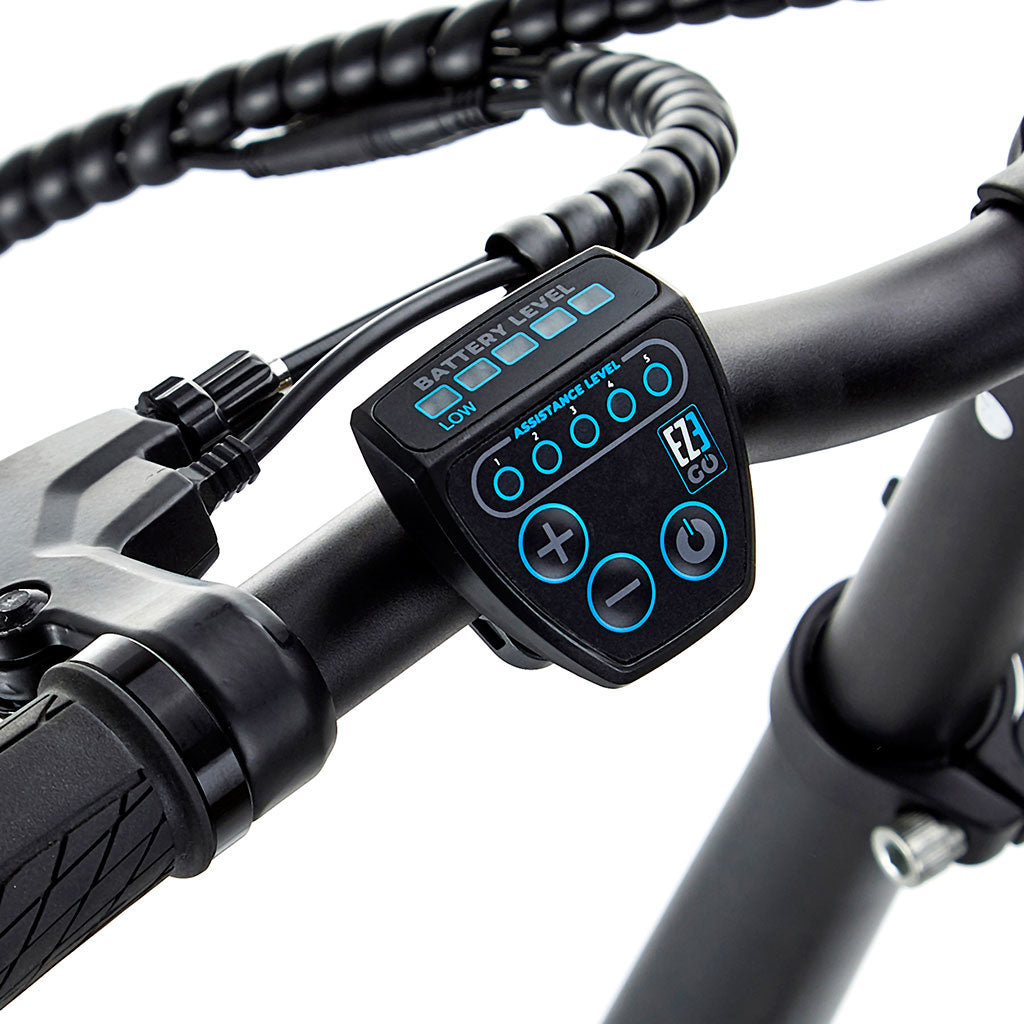

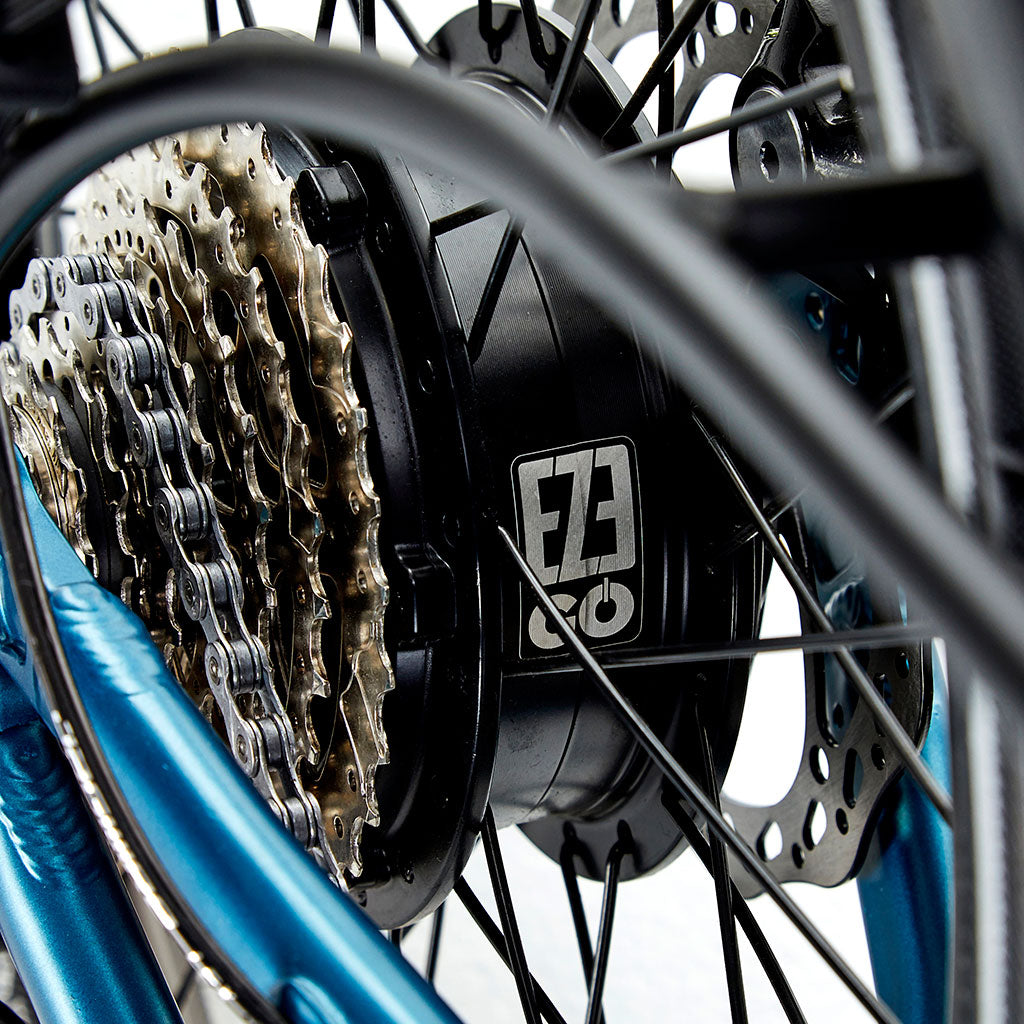

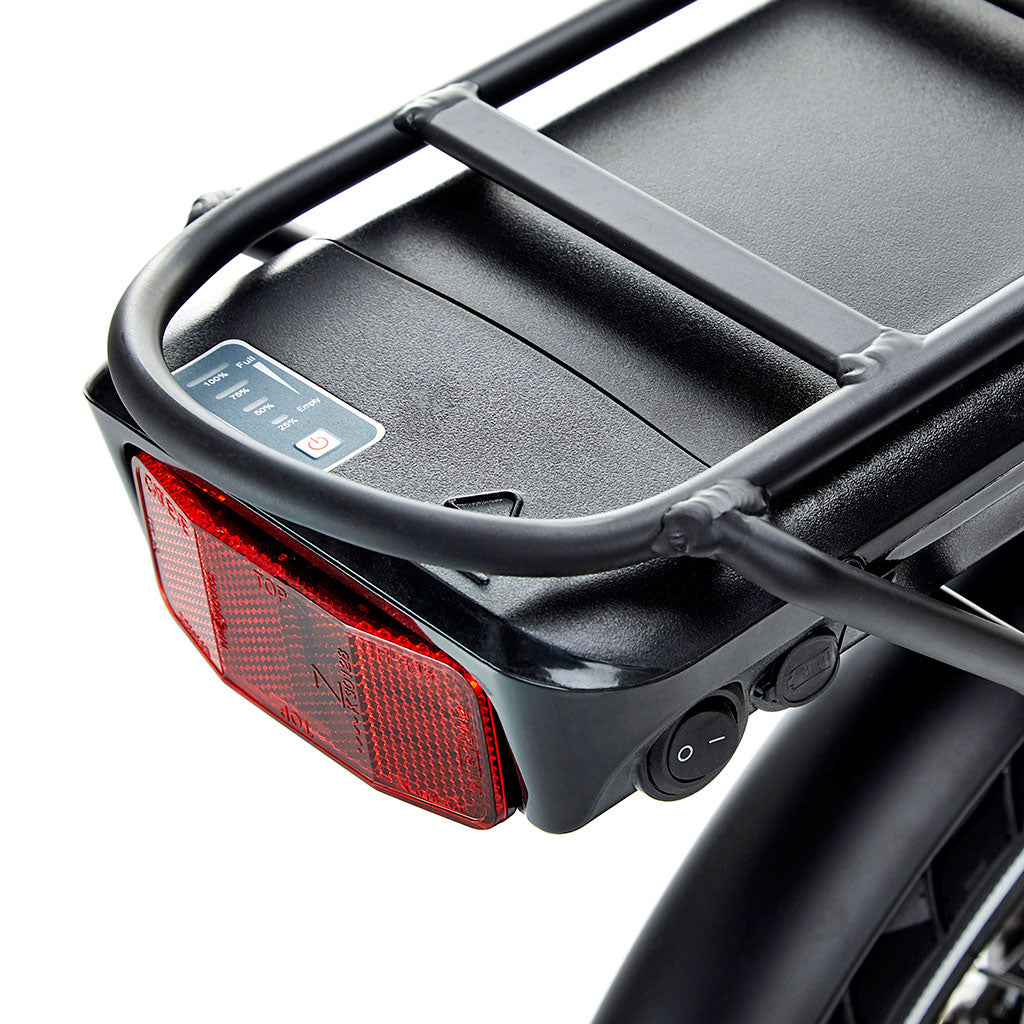

Motor 250w 36v rear hub brushless gear drive Torque Powerful 45Nm regulated to 15.5mph Battery 374Wh (11.6Ah) or 460wh (12.8Ah) 36v with BRANDED cells Range 32 or 40 miles based on average conditions Controller 540Wh (15Ah) 36v with throttle cable option Sensor 12 magnetic point speed sensor Display 5 mode LED module with walk assist Charger 2Ah 36v smart charger - 4 hours charge time Cables Waterproof IP67 with quick connectors
Components

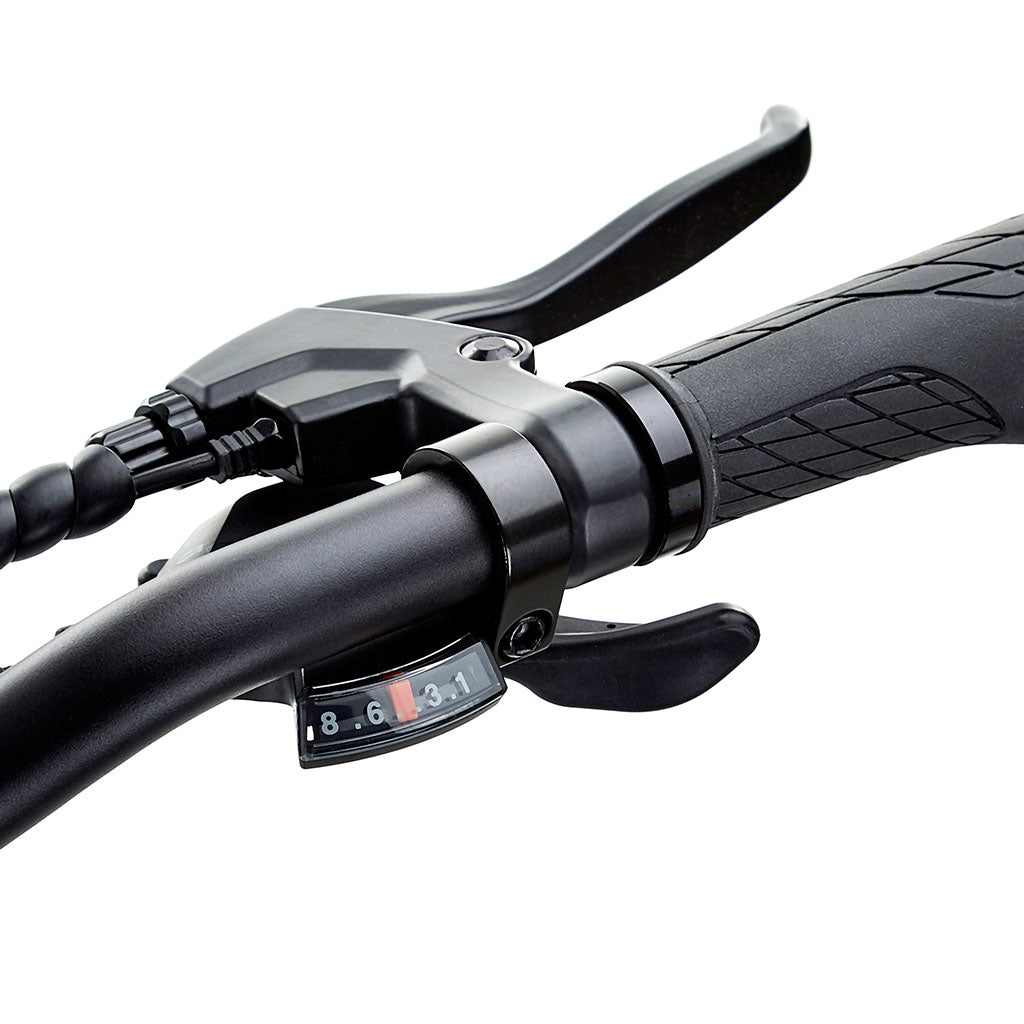

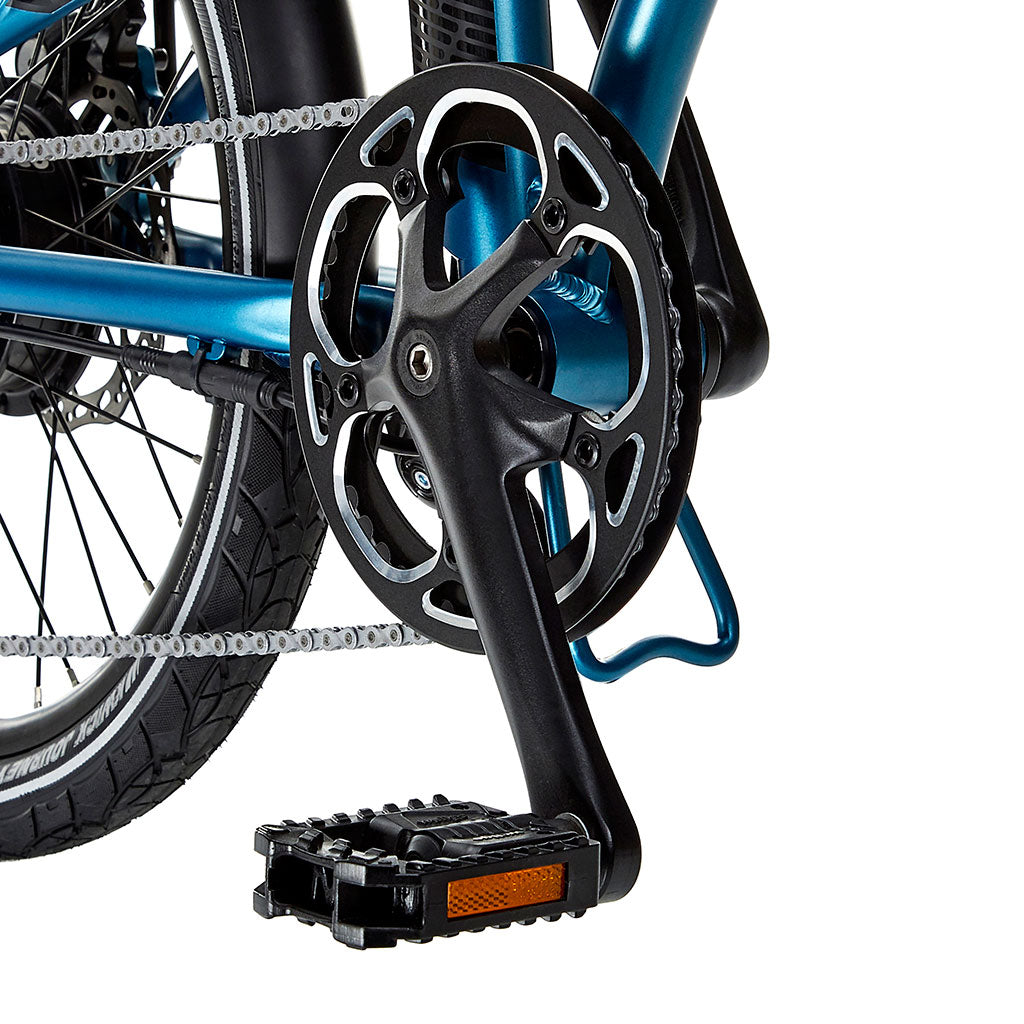

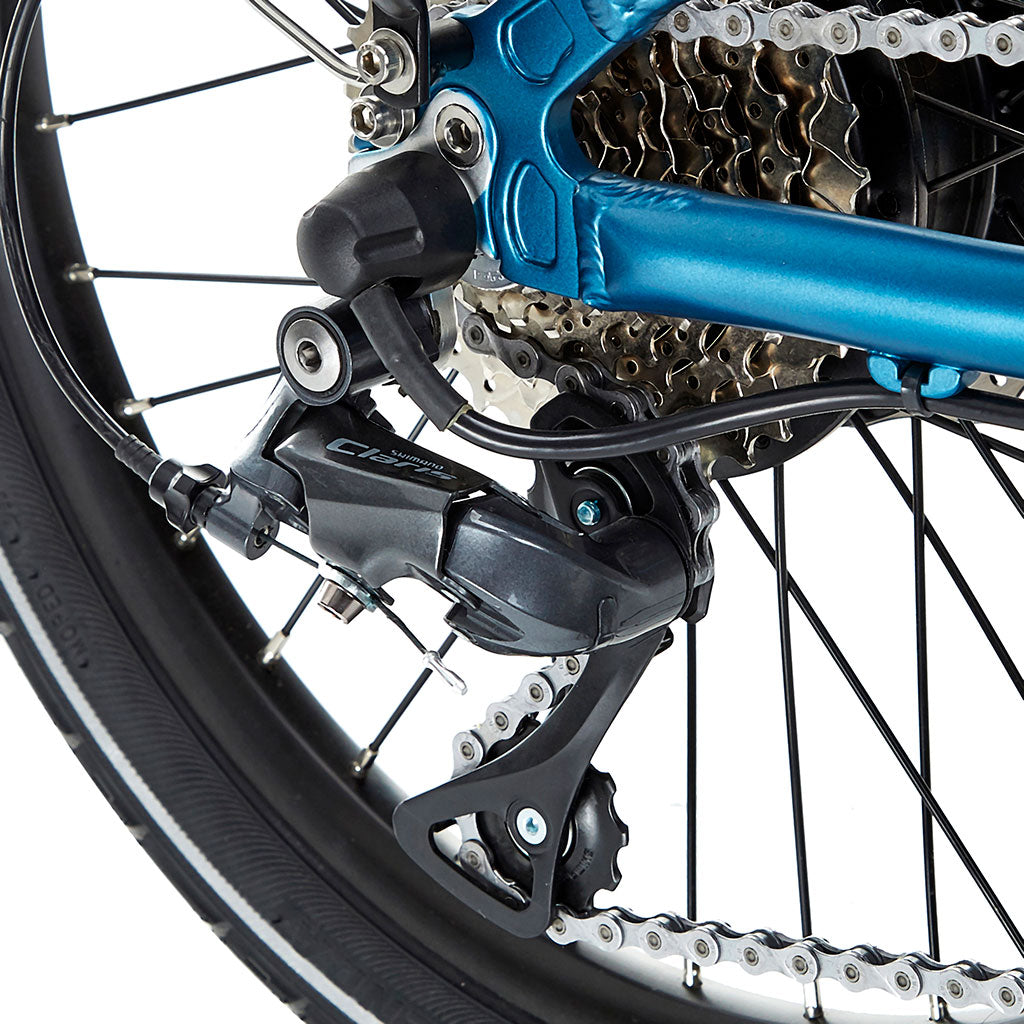

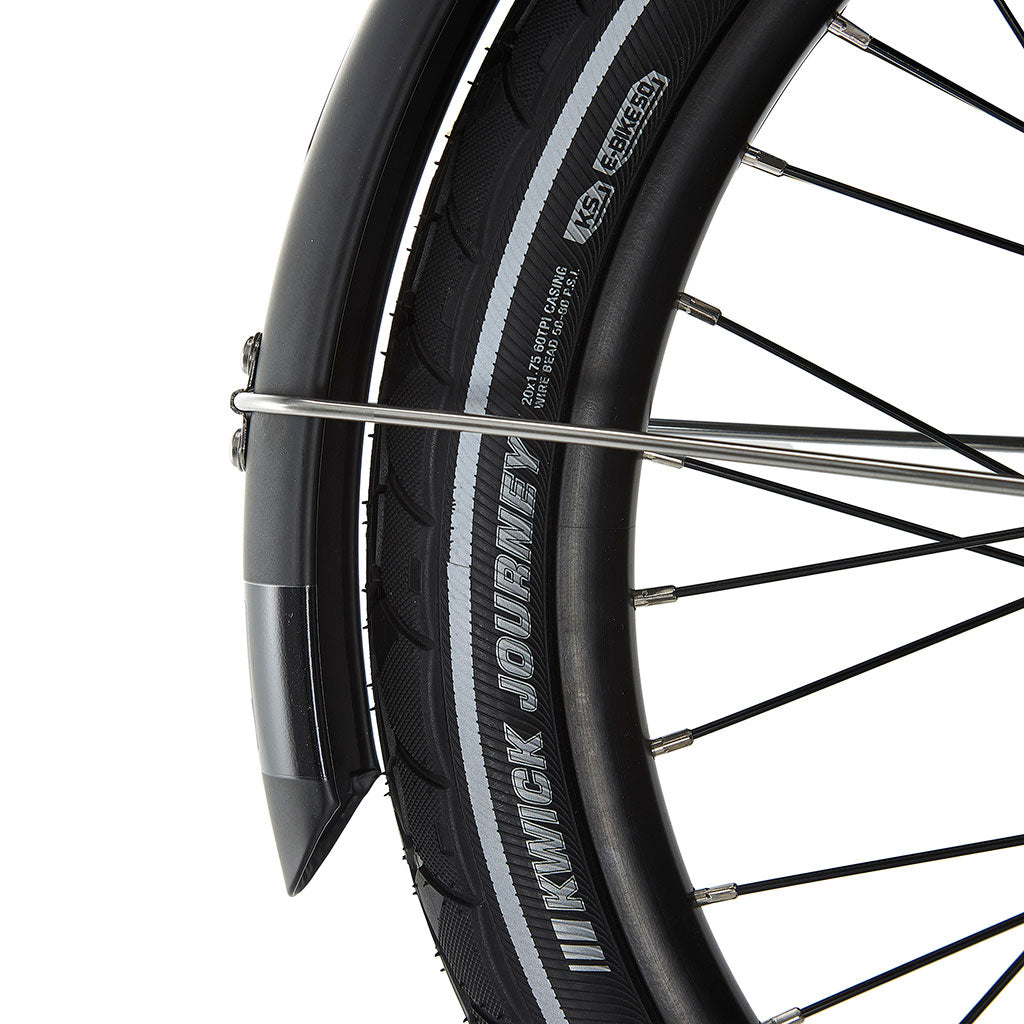

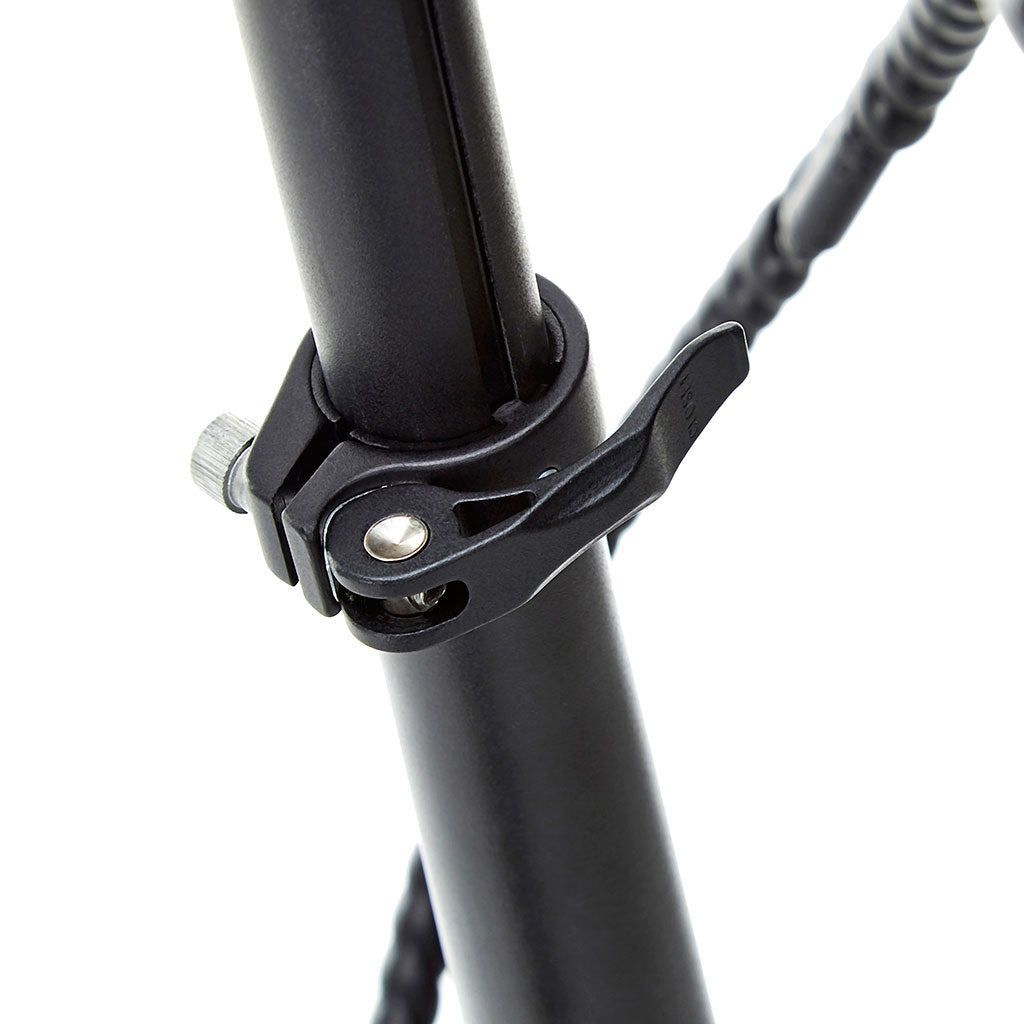

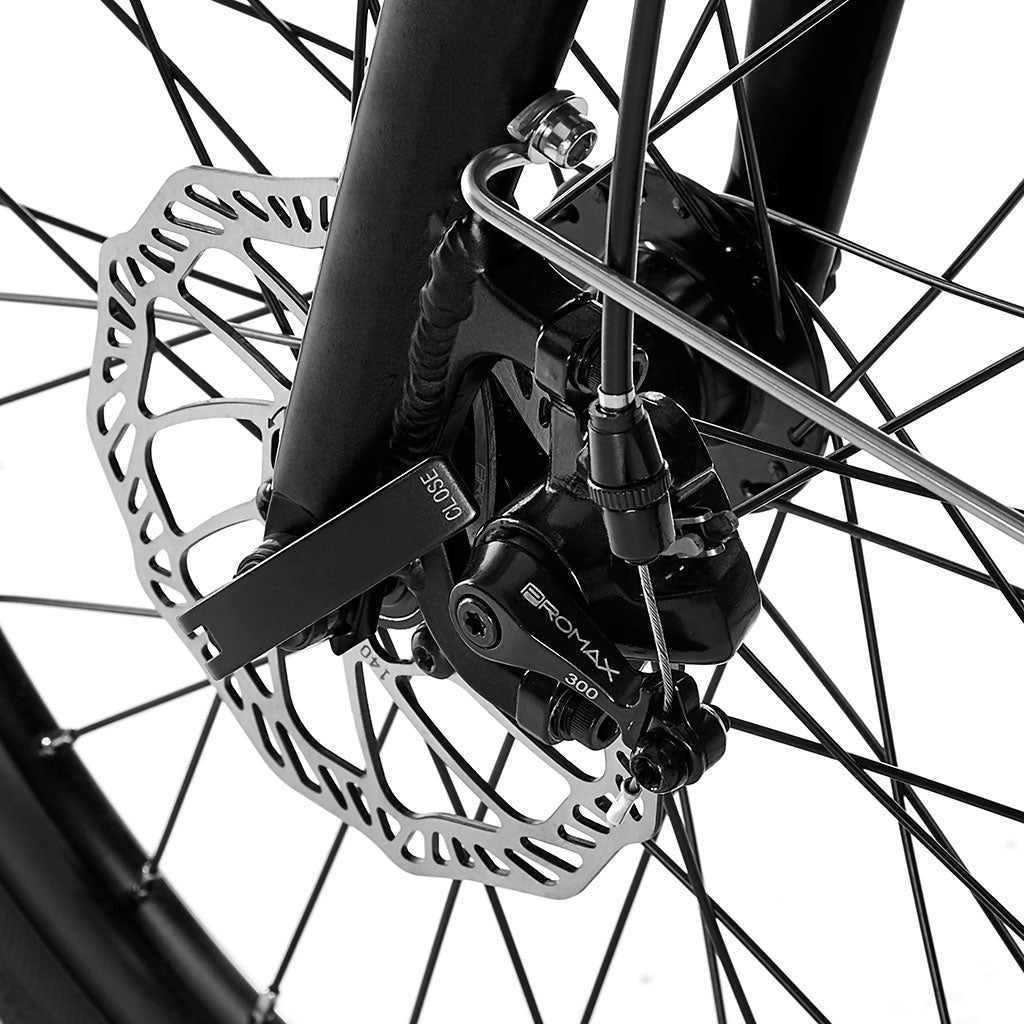

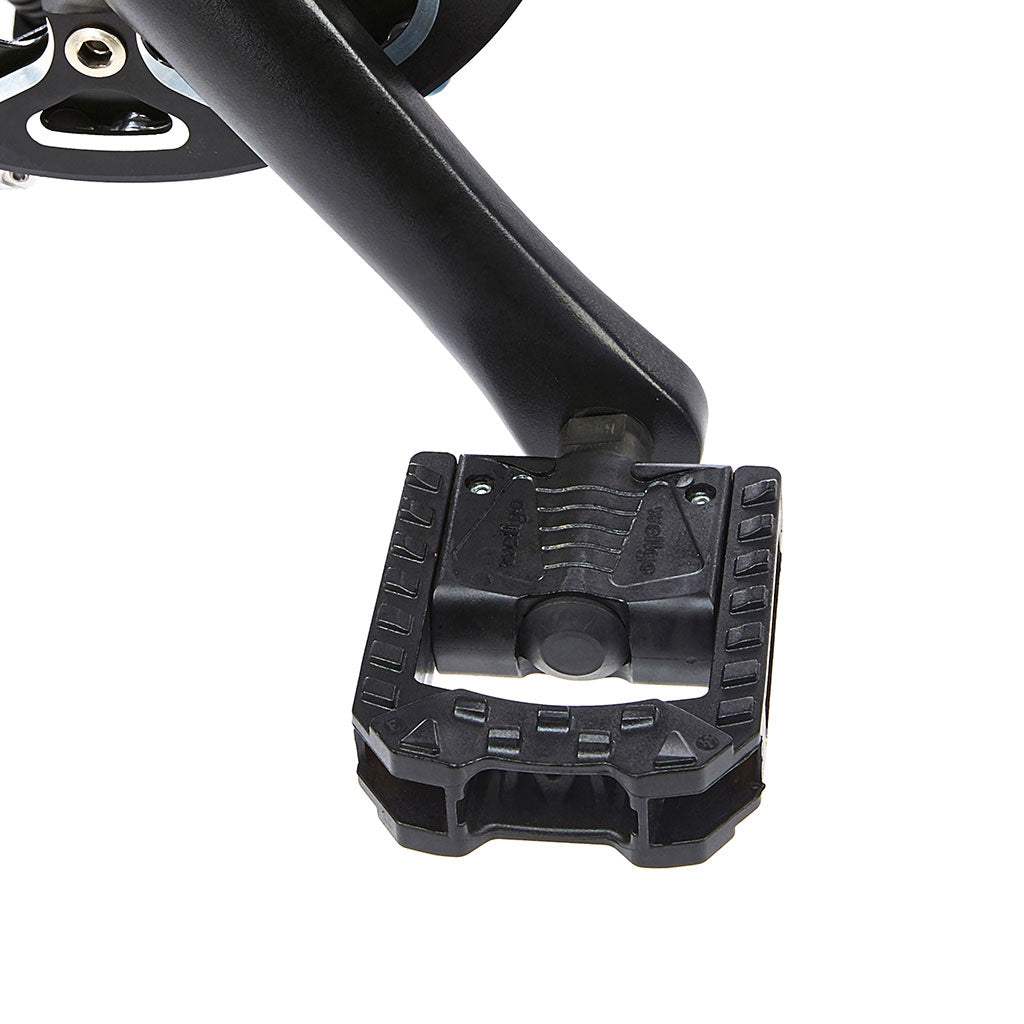

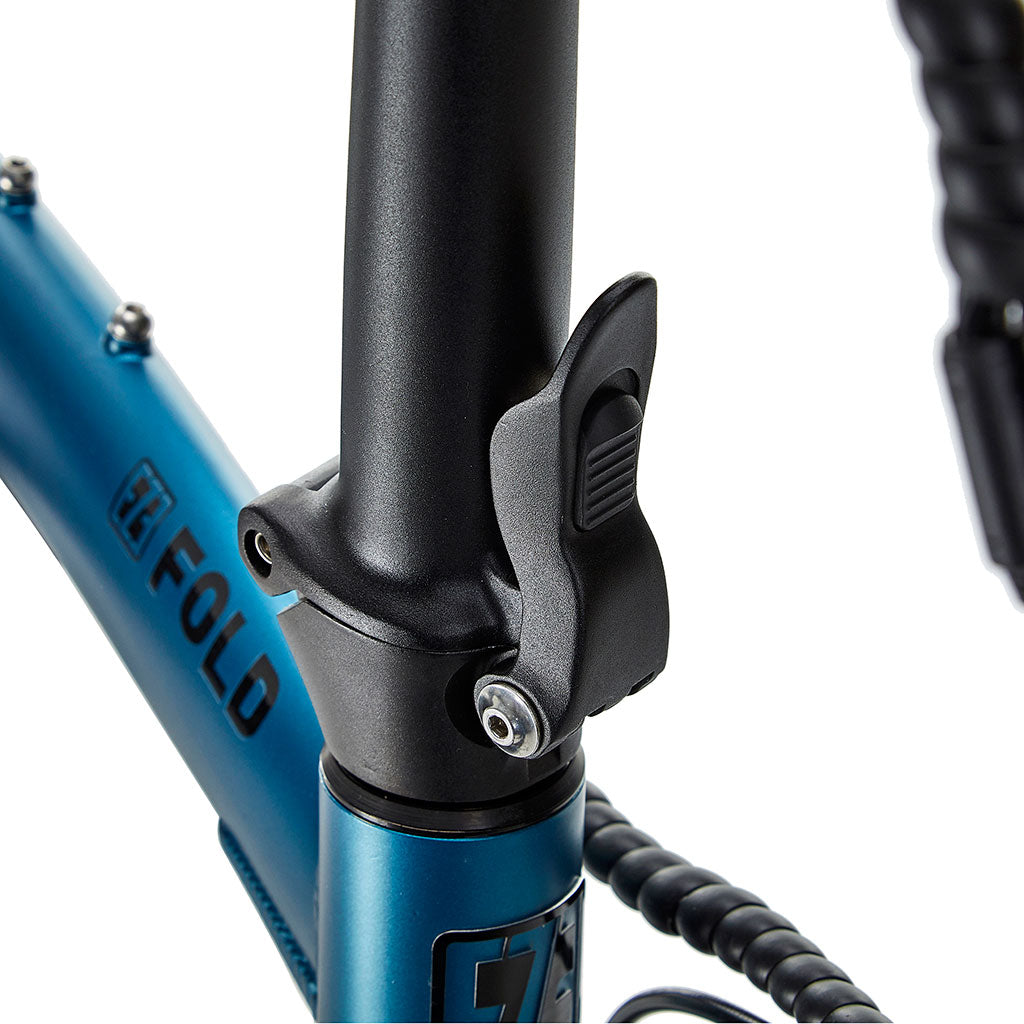

Frame Size 13" - suitable up to 35" inside leg Frame Alloy folding with internal routed cables Fork Alloy - lightset compatible Brakes Promax mechanical disc brakes Brake Levers Alloy 3 finger with safety power cut-off Brake Rotors 140mm front & 160mm rear Gear Shifters Shimano ALTUS RapidFire Plus Gear Derailleur Shimano CLARIS 8 Speed Cassette Shimano 11-34 tooth Chainset Alloy 44 tooth 170mm with CNC finish Pedals Quick folding Bottom Bracket Sealed cartridge Chain KMC X8 anti-rust Tyres Kenda Kwick Journey 20" x 1.75" puncture protect Inner Tubes High pressure Presta valve Rims Alloy double wall 36 hole Front Hub Alloy quick release with sealed bearings Spokes Stainless with brass nipples - 14 gauge front / 13 gauge rear Saddle Velo sports urban Seat Post Alloy dual adjust 550mm Seat Clamp Alloy with quick release Handlebar Alloy 600mm - 31.8 bar bore Stem Alloy oversize telescopic folding Grips Velo double density Palmwing with lockrings Headset Alloy semi-integrated Mudguards Alloy with adjustable stays Rear Carrier Alloy rear pannier with bungees straps Kickstand Alloy
Information

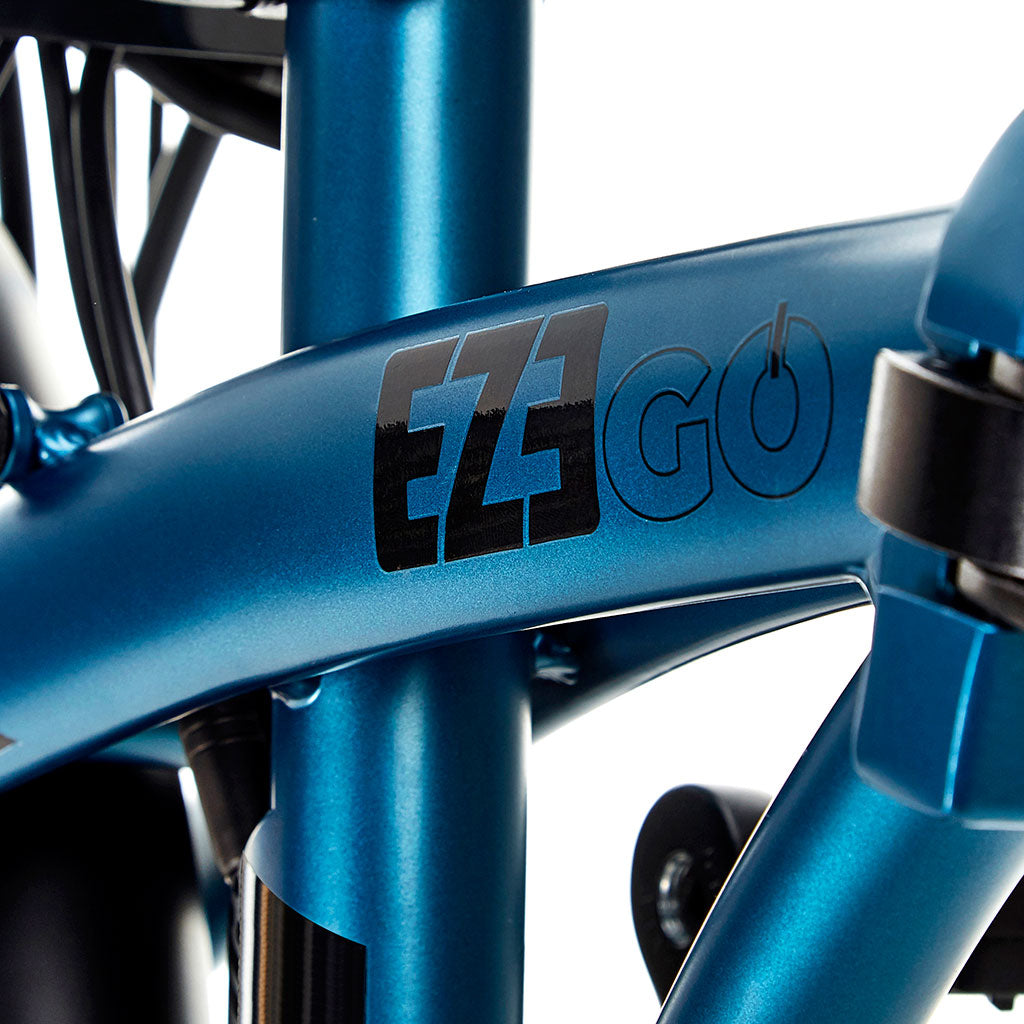

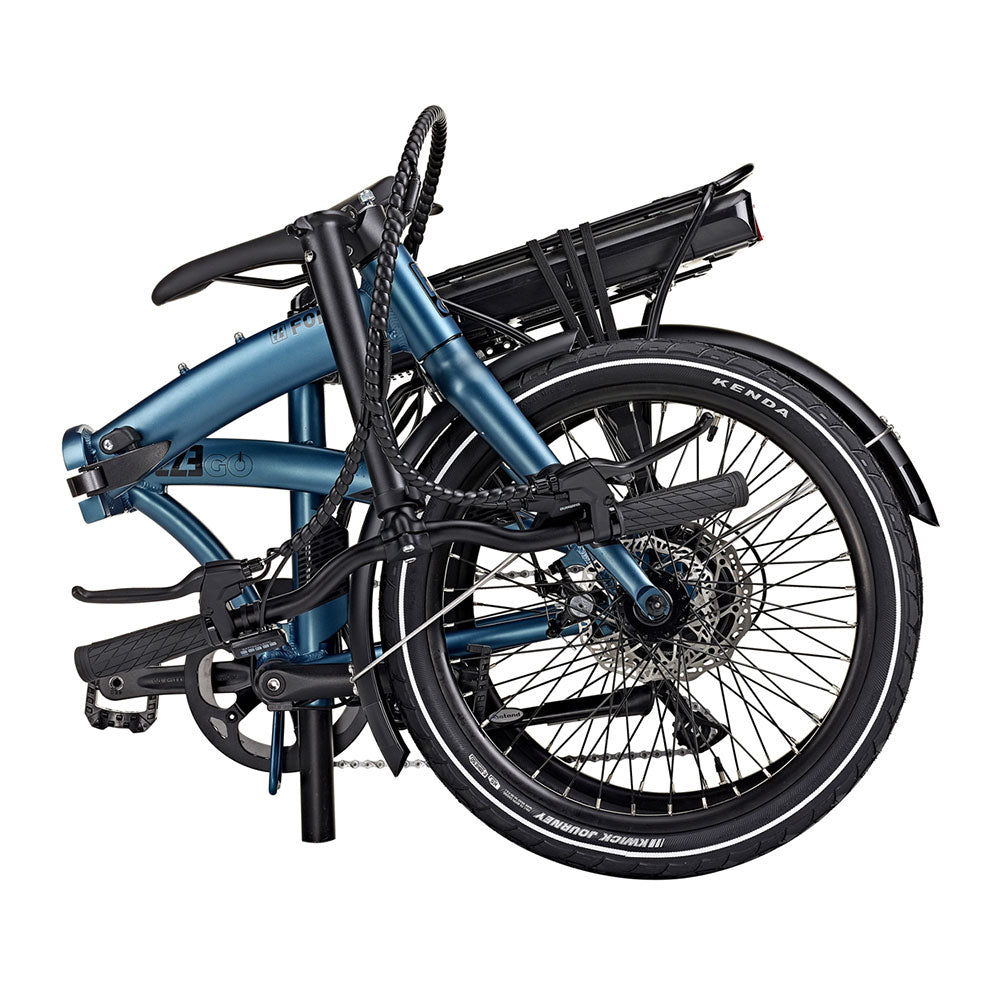

Total Weight 19.5kgs eBike Weight 16kgs Battery Weight 3.5kgs Battery Life 75% after 500 cycles / 70% after 1000 cycles Colour Matt metallic teal frame with black fork Assembly 99% - attach pedals, straighten / tighten handlebars Folded Dimesnions 83cm x 67cm x 47cm in 4 simple steps
Warranty
Battery 500 cycles (approx. 2 years) Electrics 1 year Components 1 year (except wear & tear items)
Upgrades Available
Battery 504wh (14Ah) Display LCD or TFT Charger 4Ah fast charger & car adaptor travel charger Carry Strap 2 piece strap
