X26/X24/X20

Specs

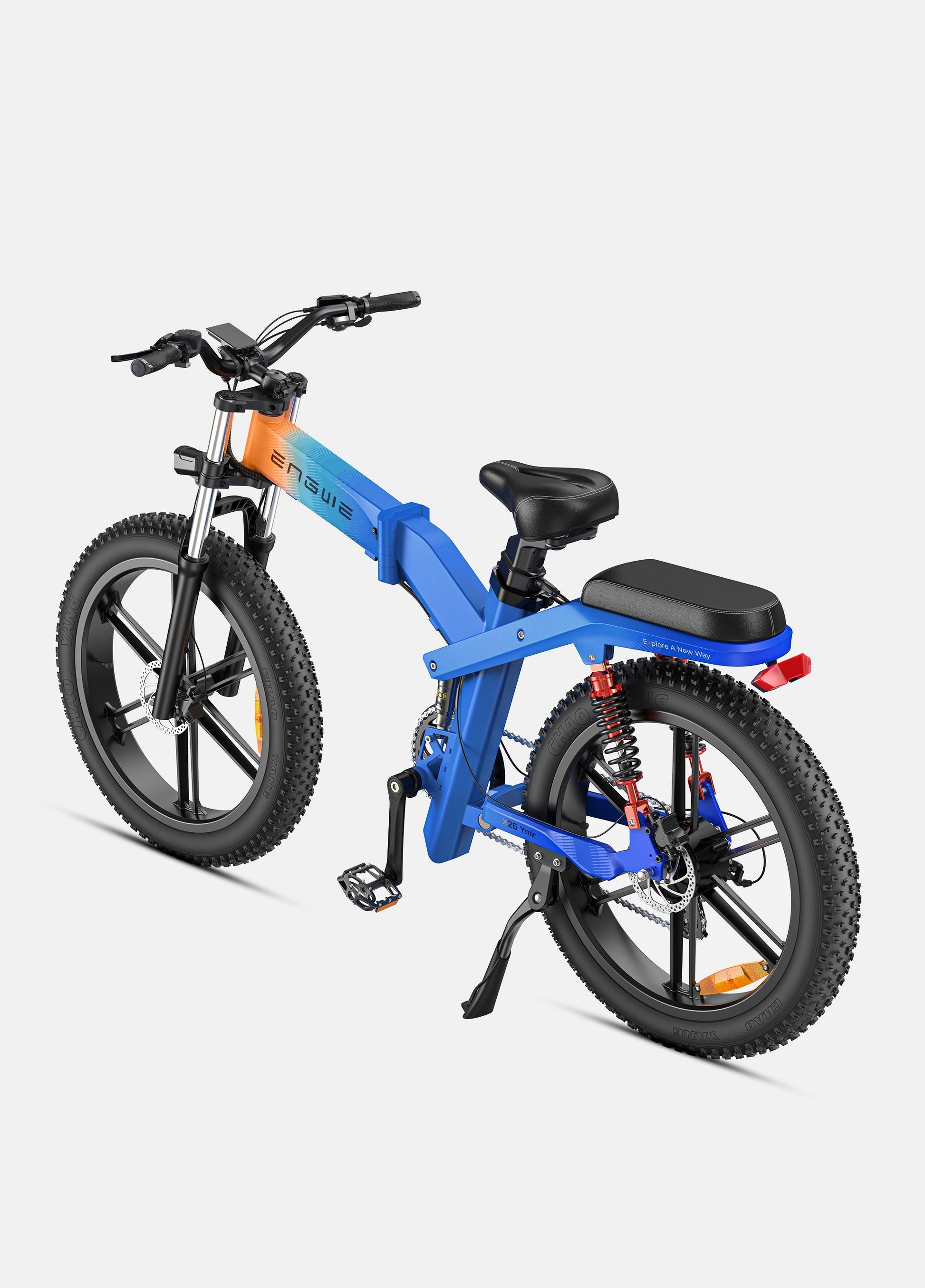

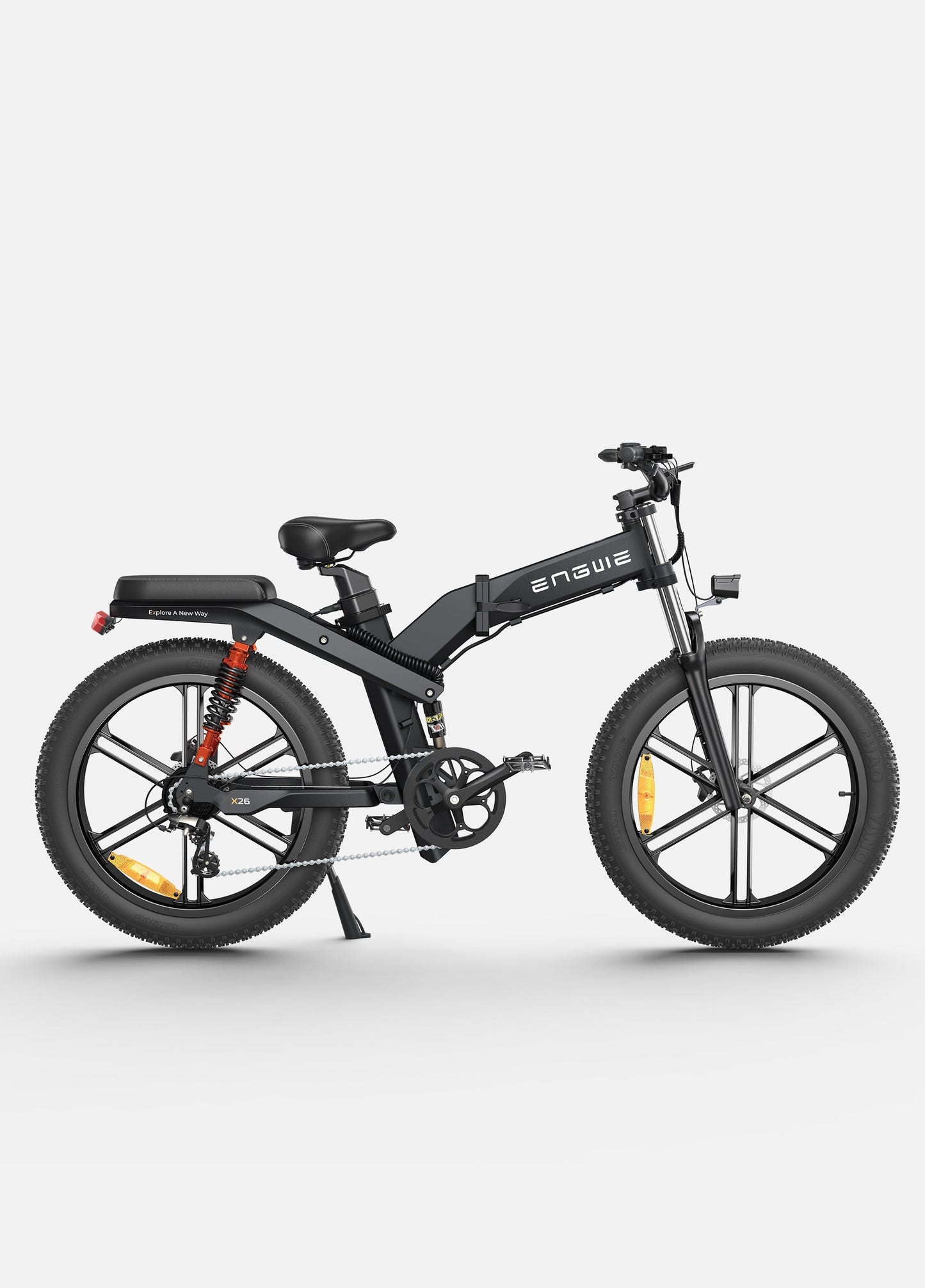

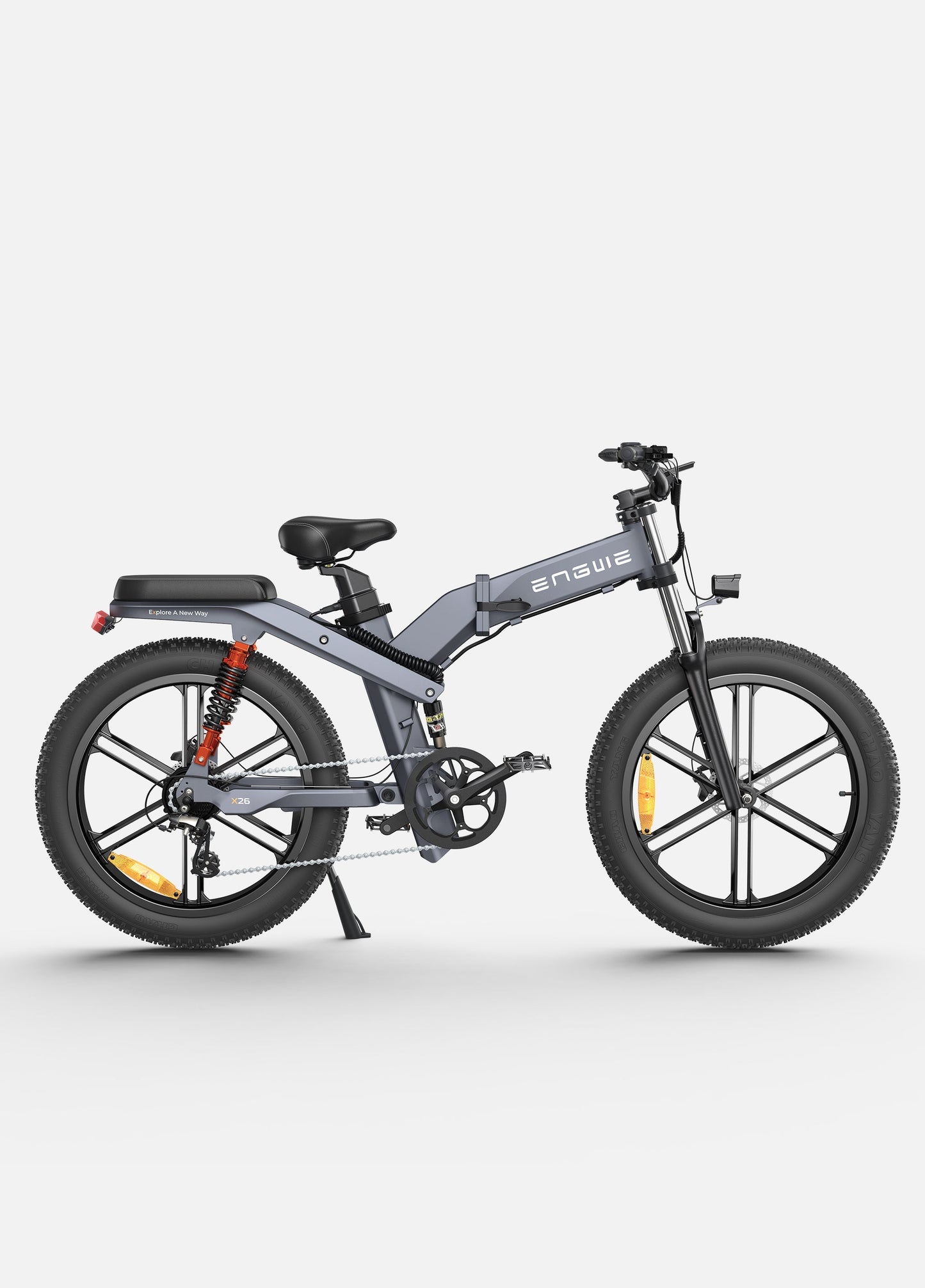

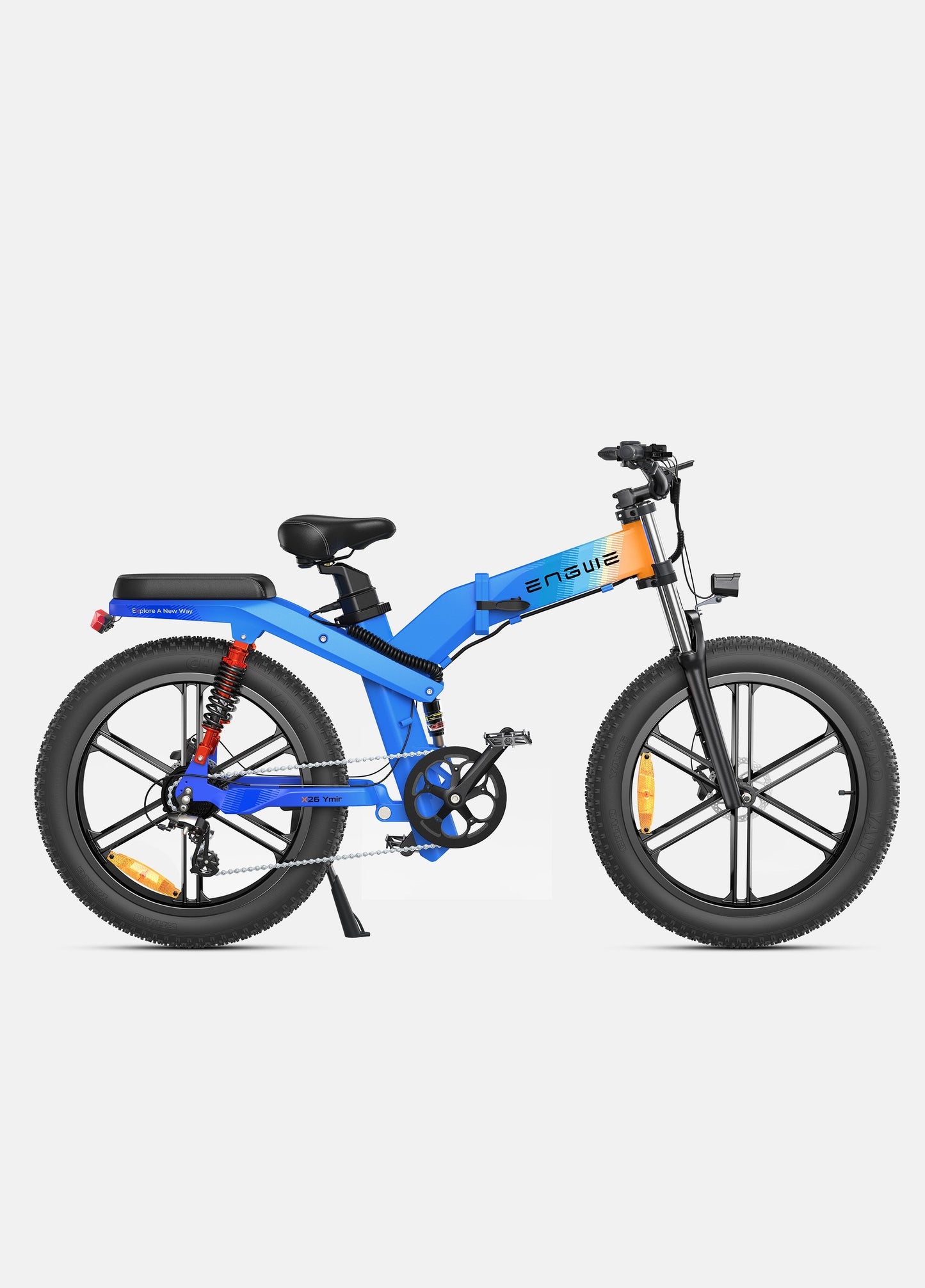

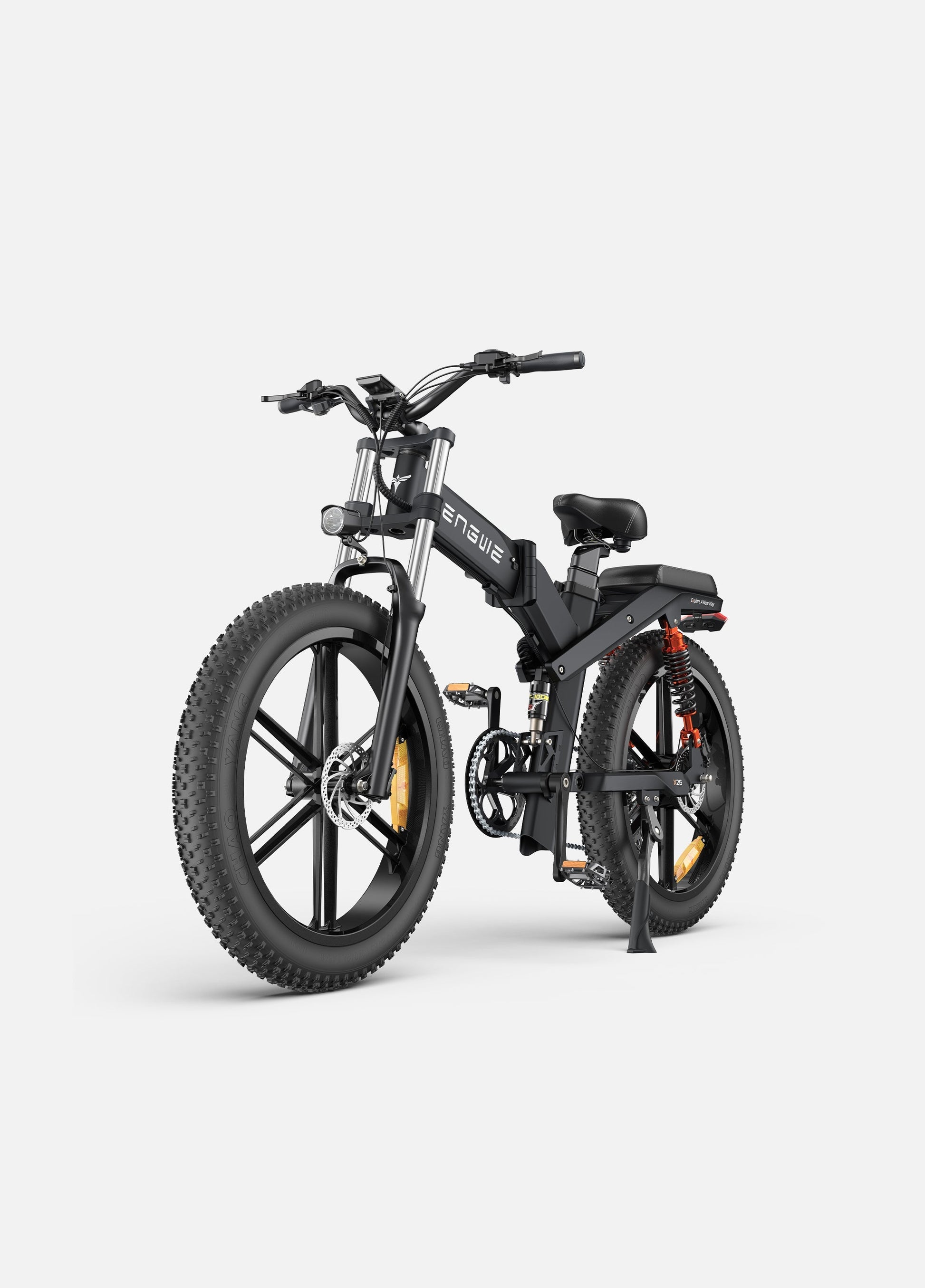

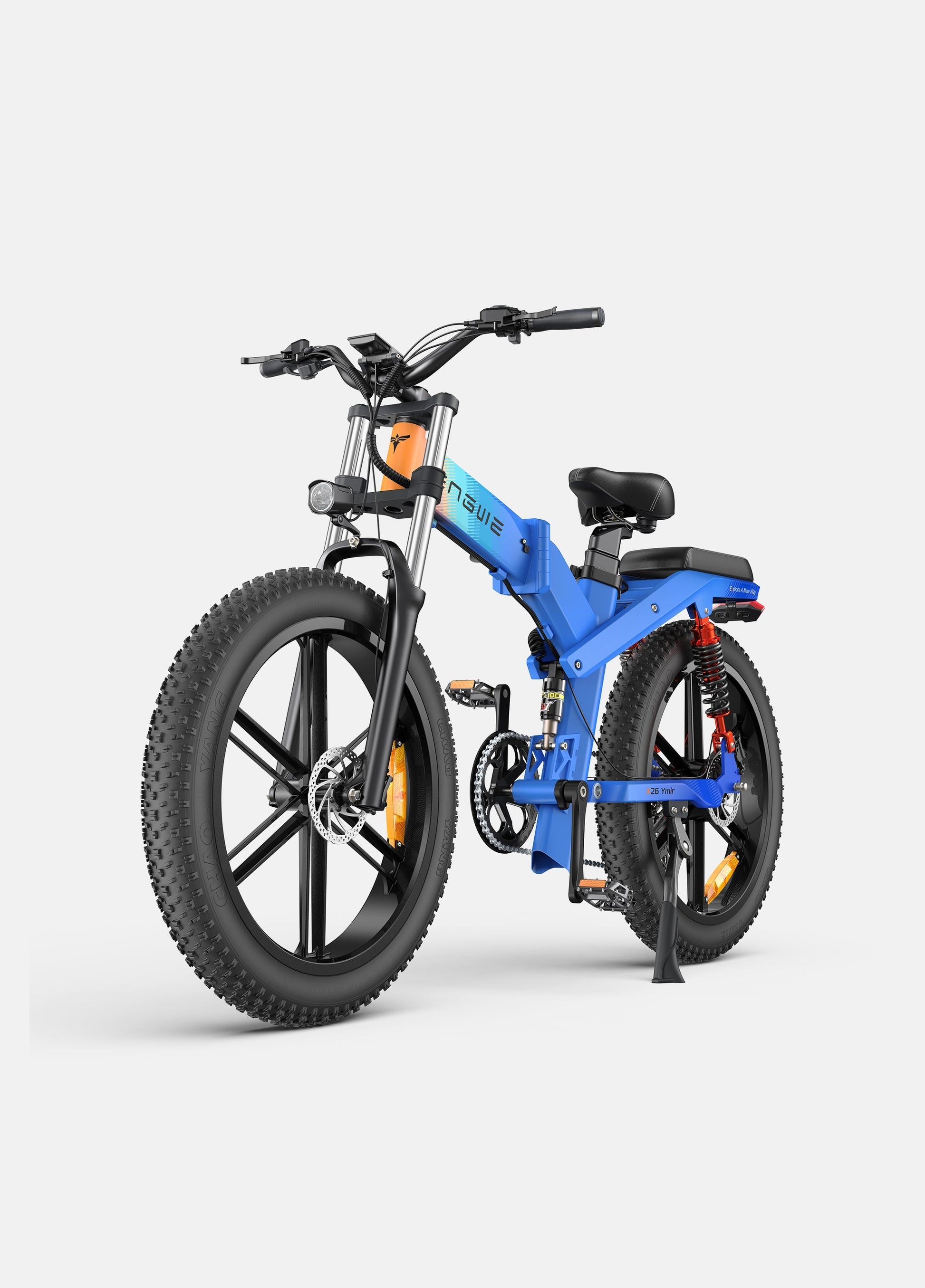

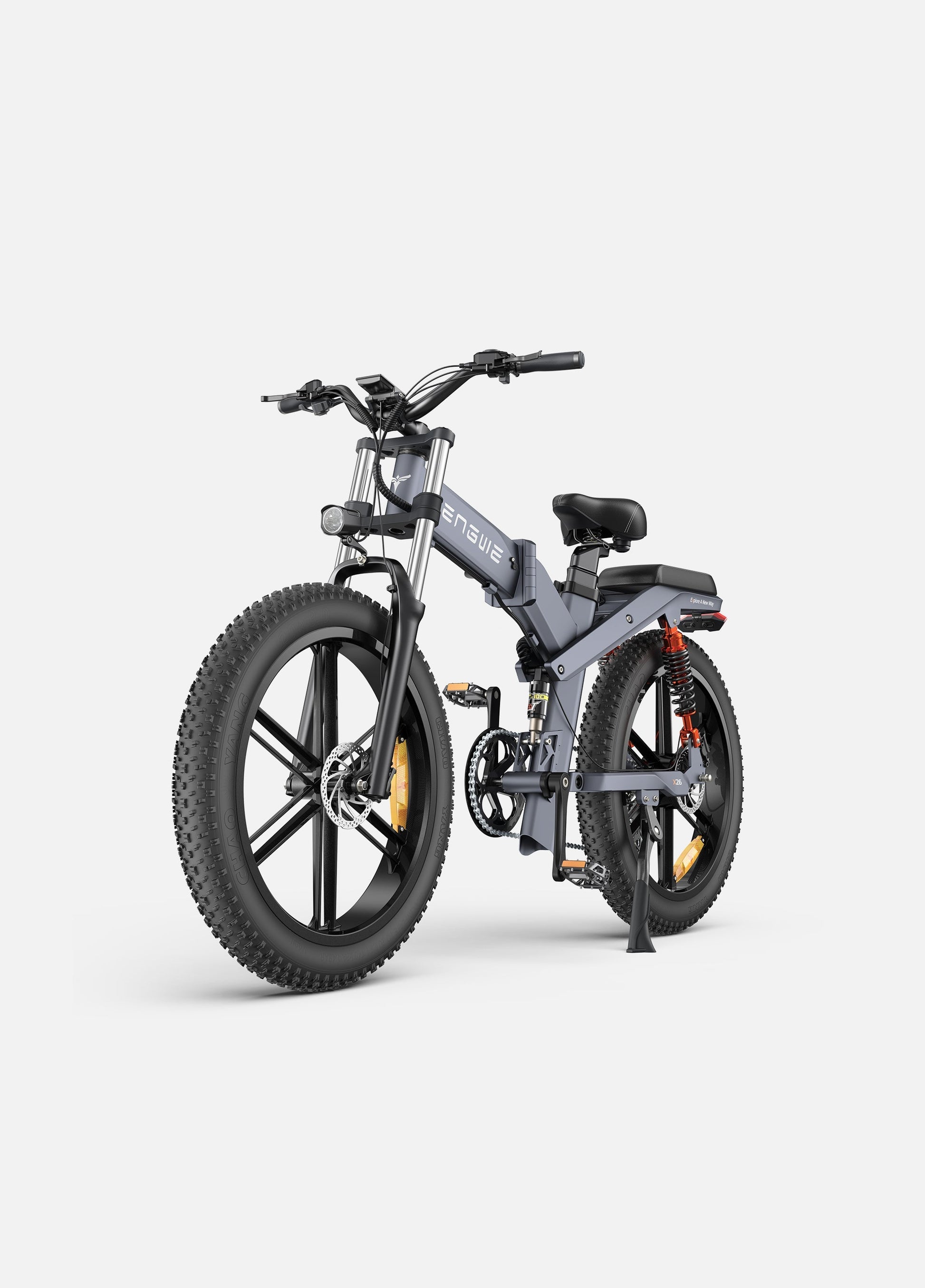

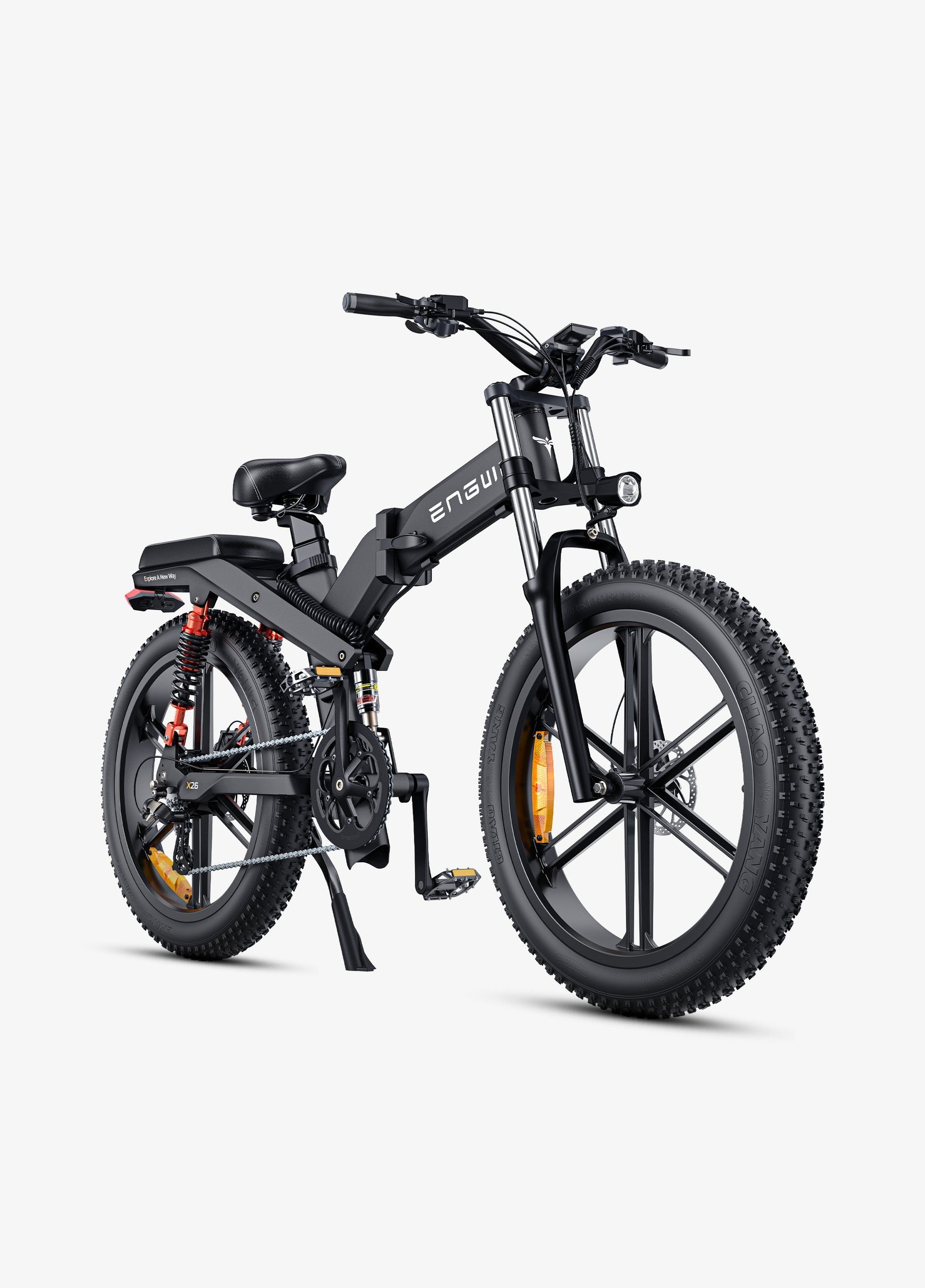

X26

• Material: 6061 Aluminum Alloy
• Tire Size: 26 x 4.0 Inches
• Motor: 1200W (peak) High-Speed Brushless Motor
• Torque: 70 N.m (Why Torque Matters?)
• Battery 1: 48V 19.2Ah Lithium-Ion Battery
• Battery 2: 48V 10Ah Lithium-Ion Battery
• Mileage: 100 km (ECO Mode) / 150 km (ECO Mode)
• Charging Time: About 8 hours
• Maximum Climbing Degree: 30°
• Brake: Hydraulic Disc Brakes
• Hub & Power: Integrated Hub Motor with 1000W power
• Transmission System: Shimano 8 Gears
• Bike Weight: 43.6 kg
• Gross Weight: 52.5 kg
• Maximum Load: 150 kg

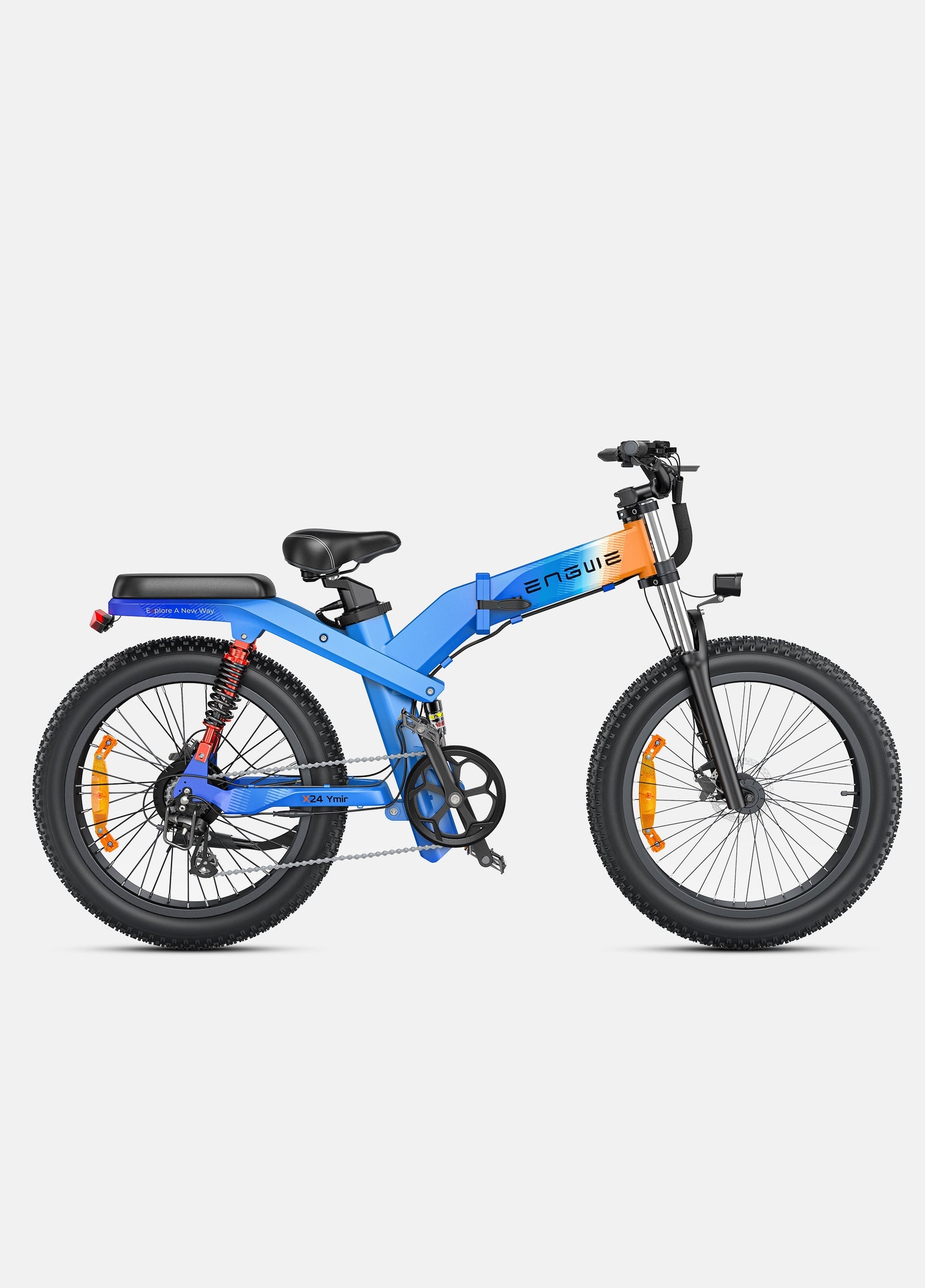

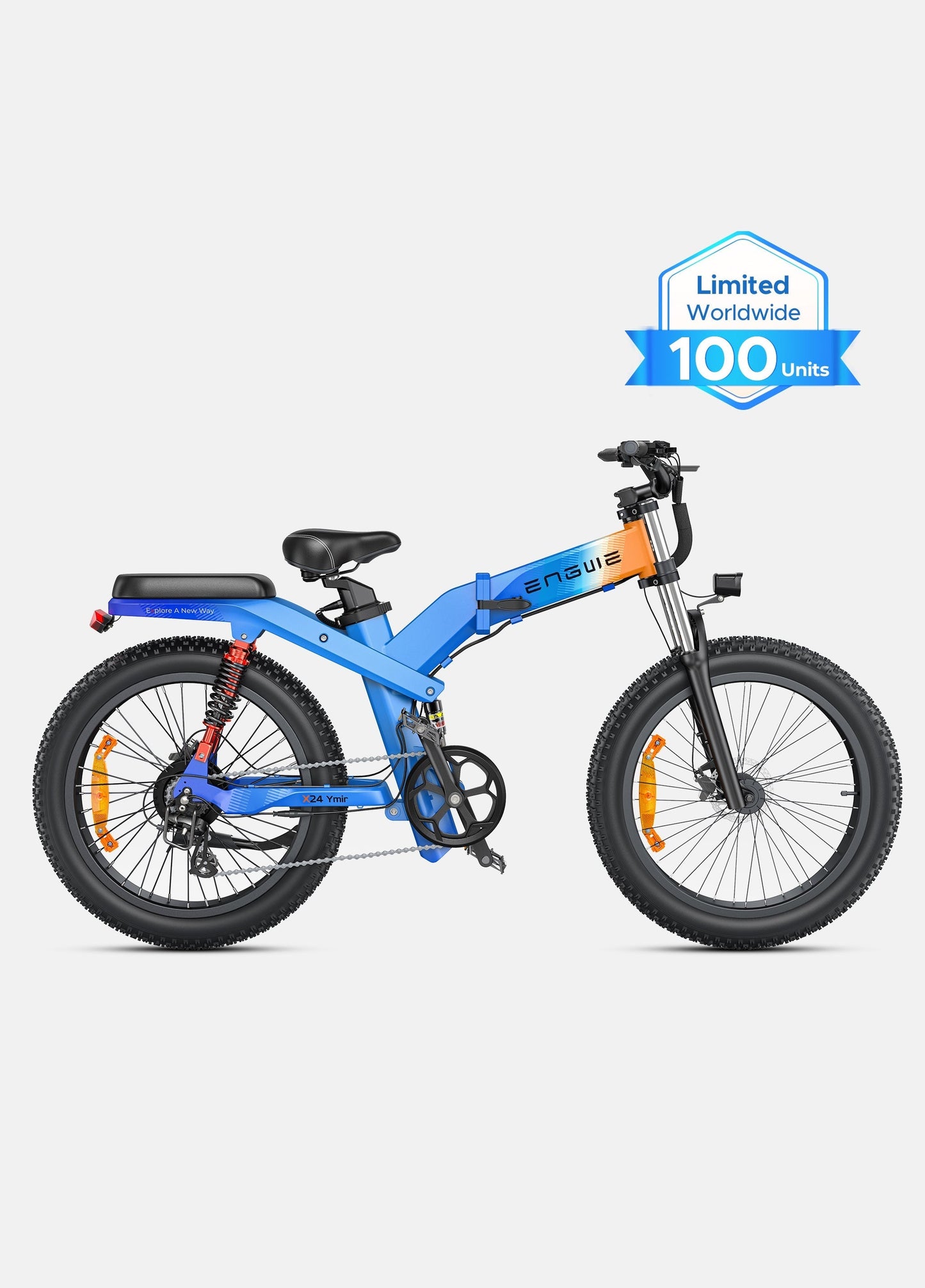

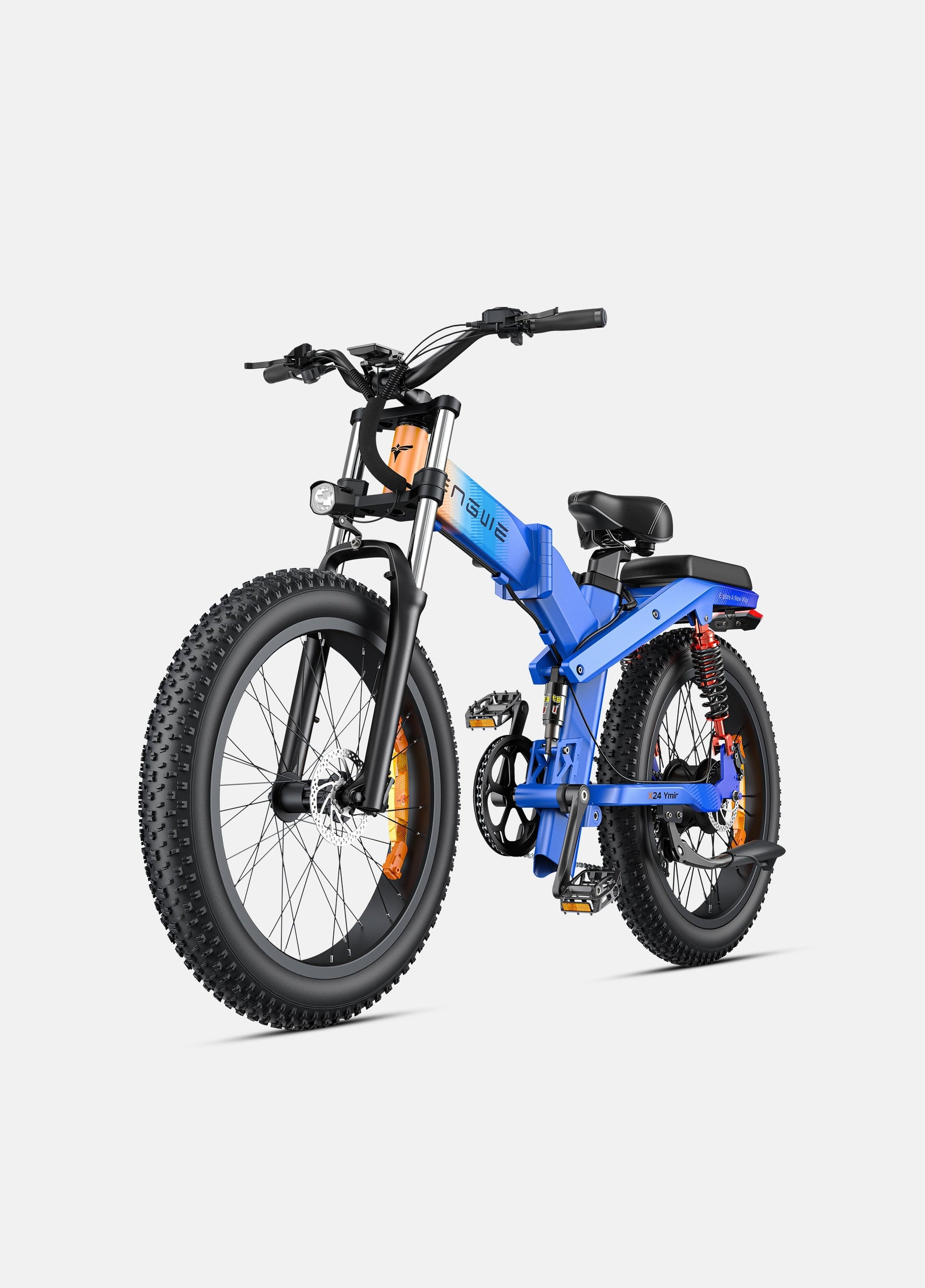

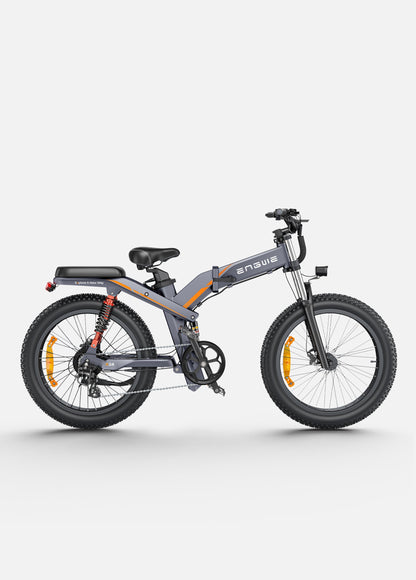

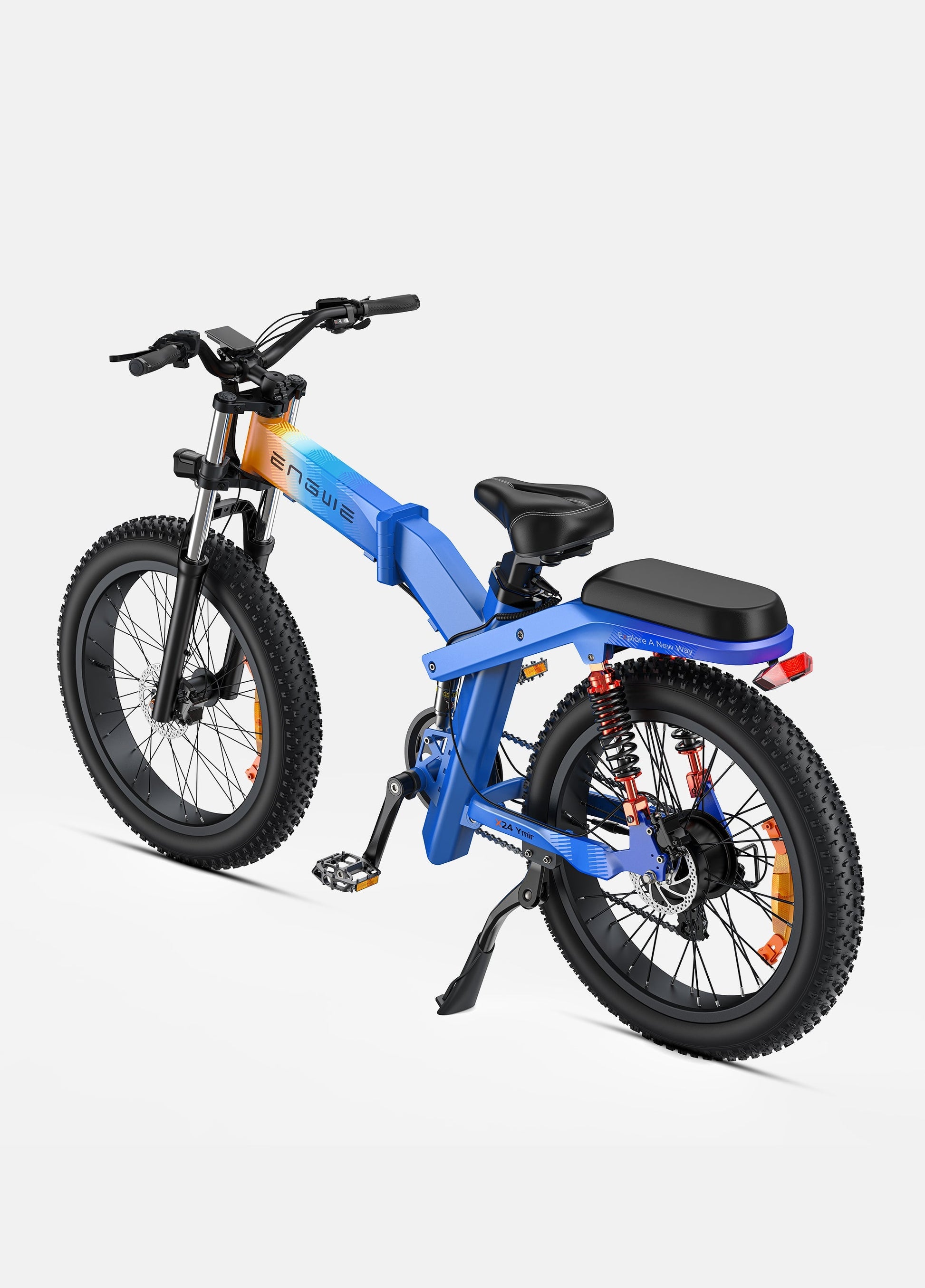

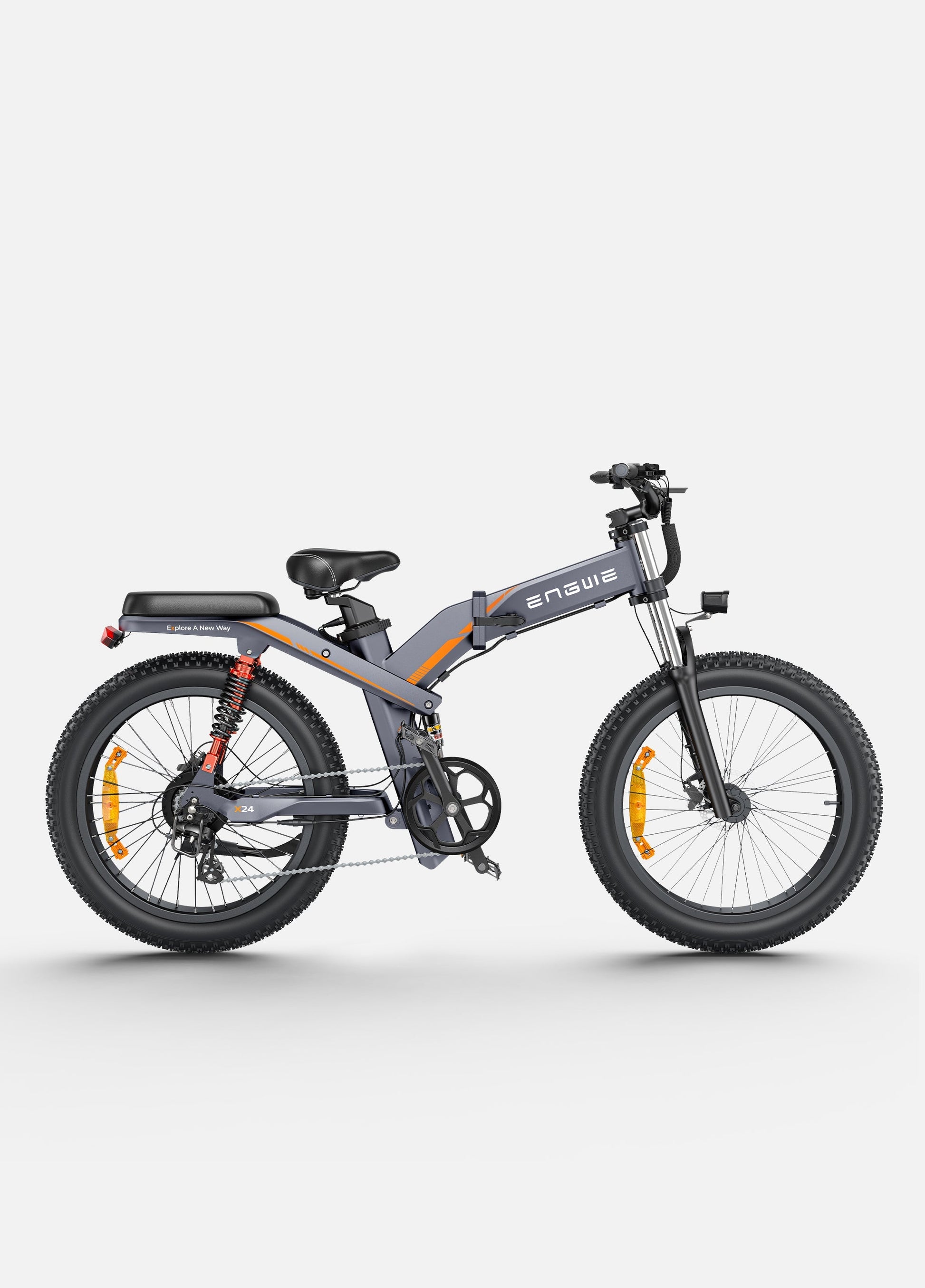

X24

• Material: 6061 Aluminum Alloy
• Tire Size: 24 x 4.0 Inches
• Motor: 1200W (peak) High-Speed Brushless Motor
• Torque: 70 N.m (Why Torque Matters?)
• Battery 1: 48V 19.2Ah Lithium-Ion Battery
• Battery 2: 48V 10Ah Lithium-Ion Battery
• Mileage: 100 km (ECO Mode) / 150 km (ECO Mode)
• Charging Time: About 8 hours
• Maximum Climbing Degree: 30°
• Brake: Hydraulic Disc Brakes
• Hub & Power: Spoke Motor with 1000W power
• Transmission System: Shimano 8 Gears
• Bike Weight: 41.9 kg
• Gross Weight: 49.32 kg
• Maximum Load: 150 kg

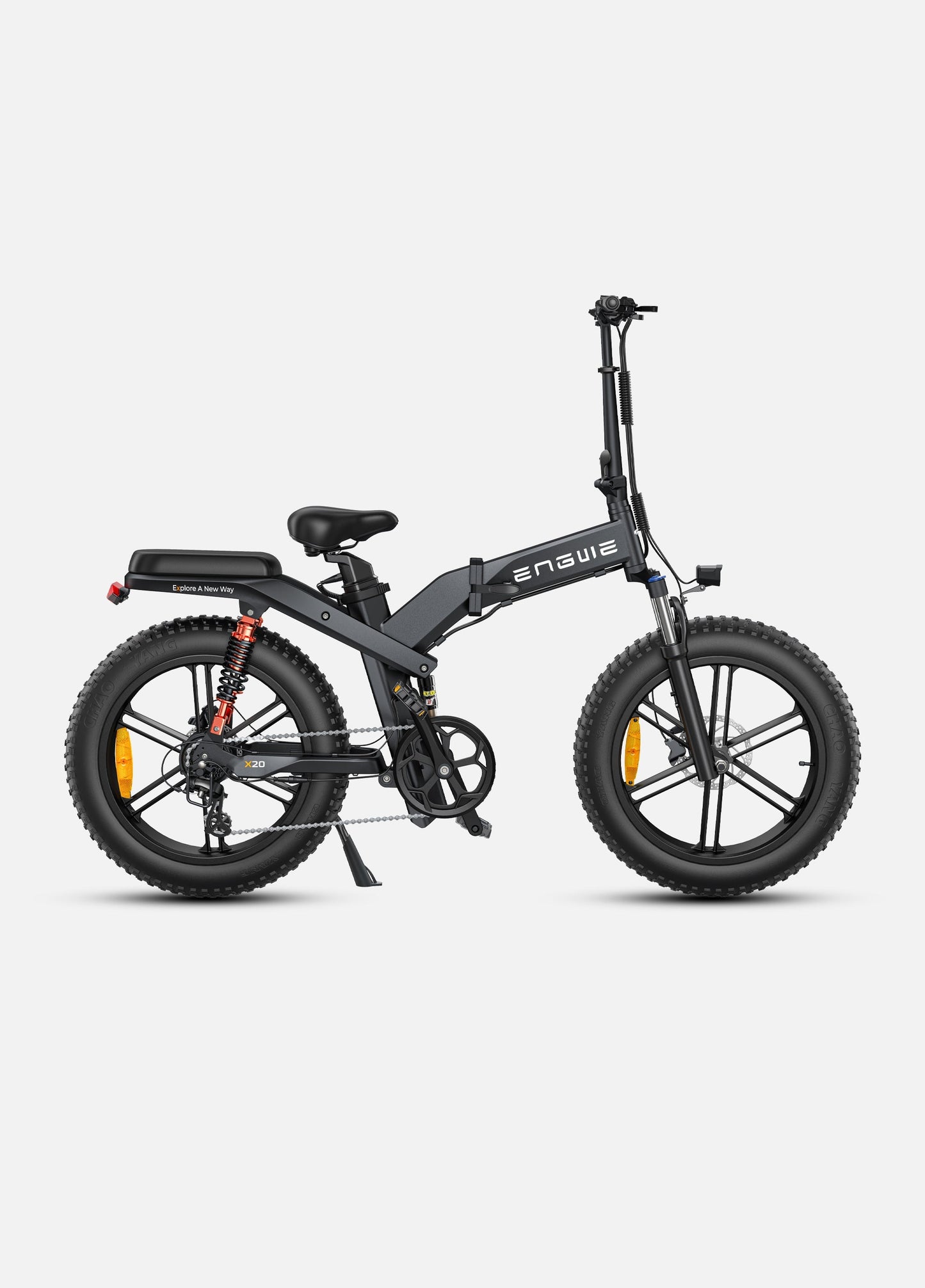

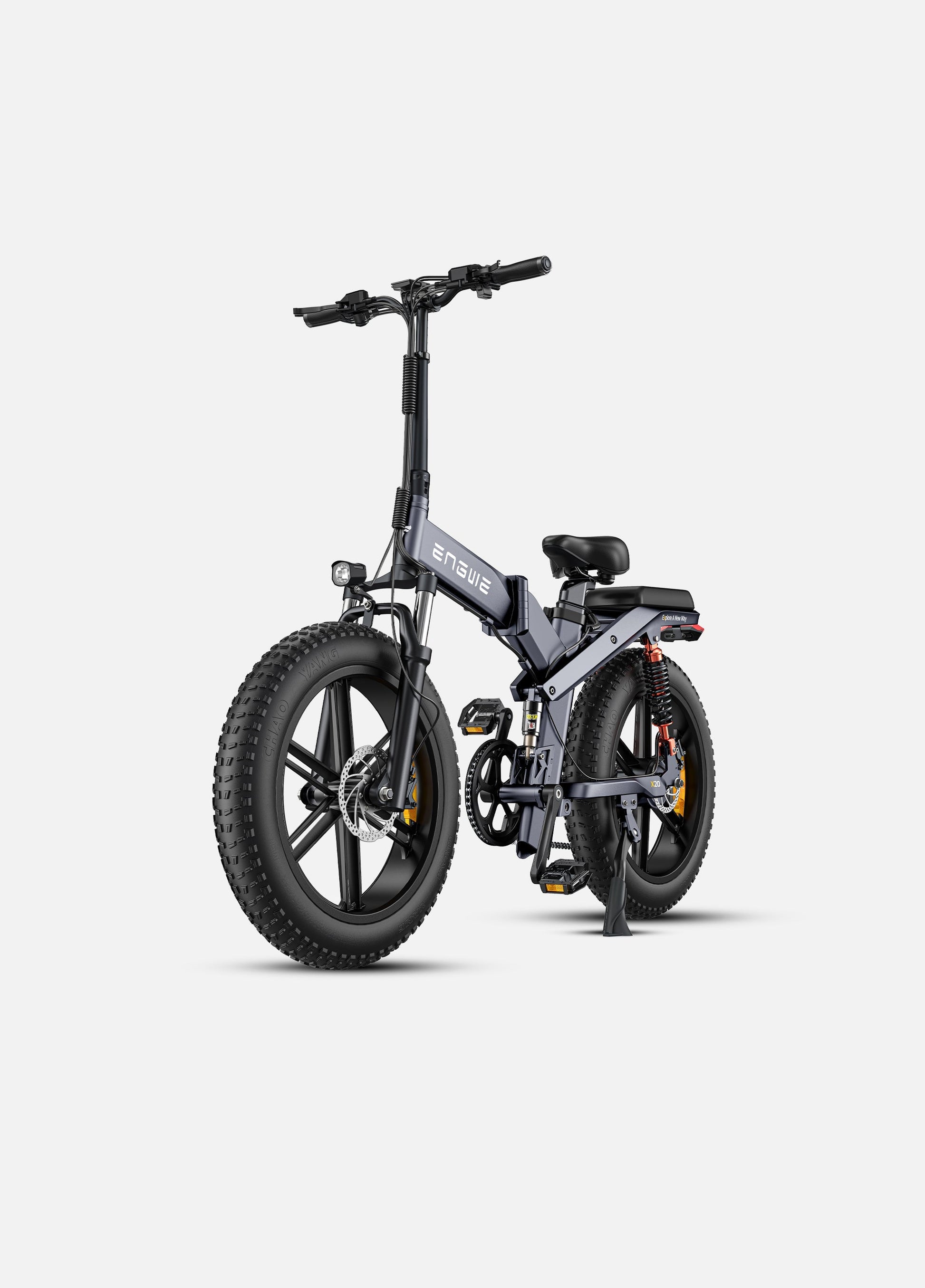

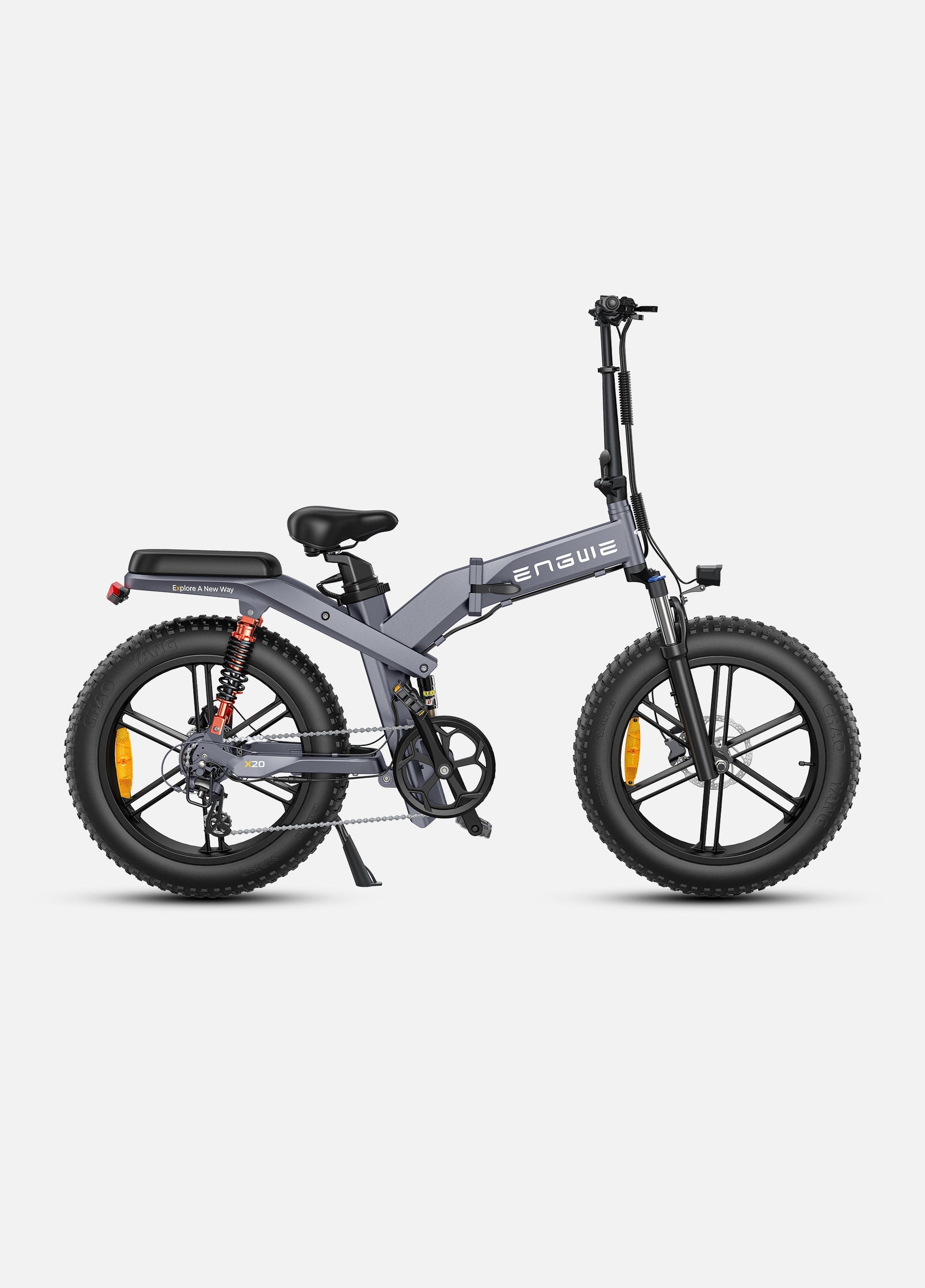

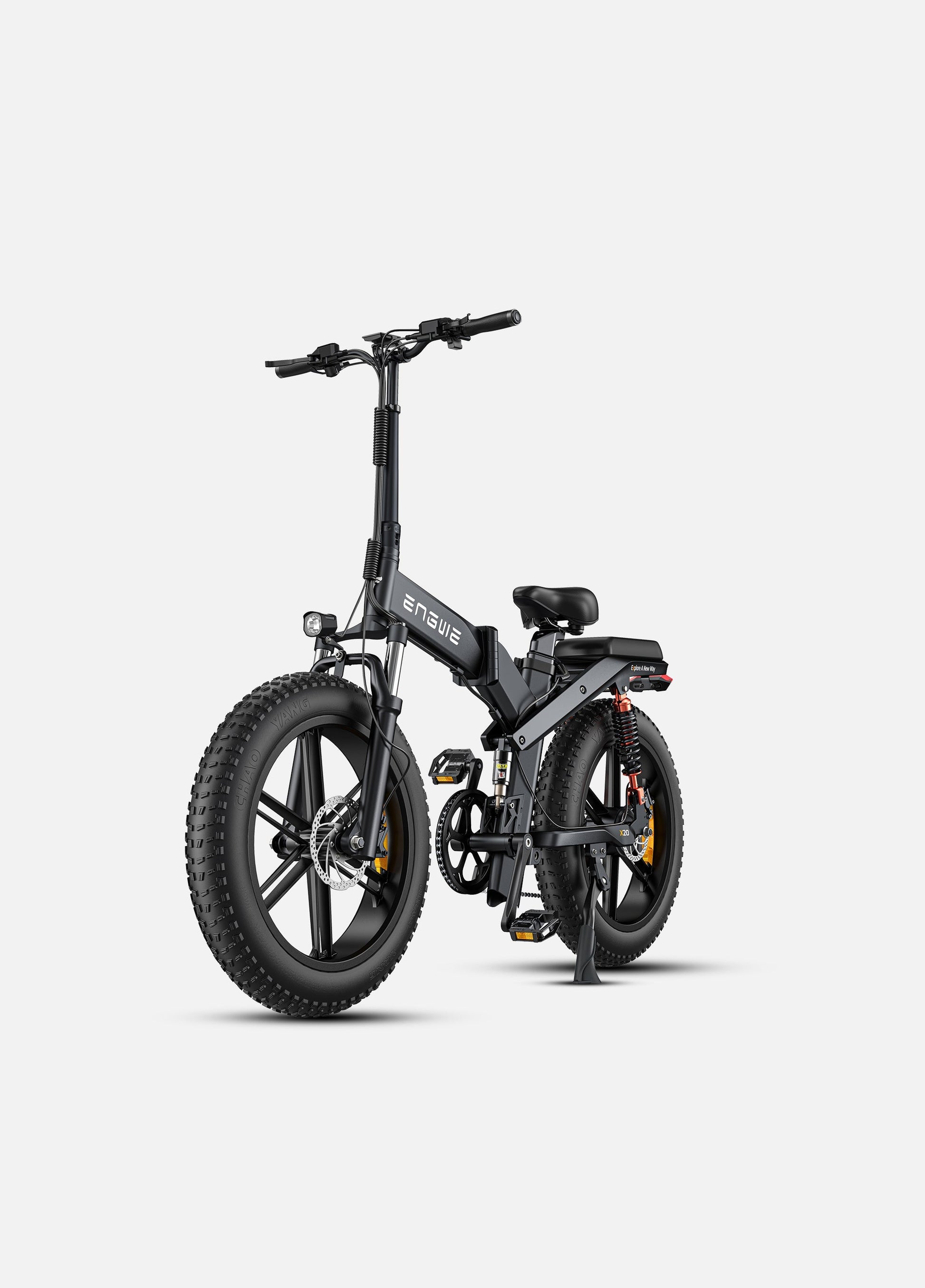

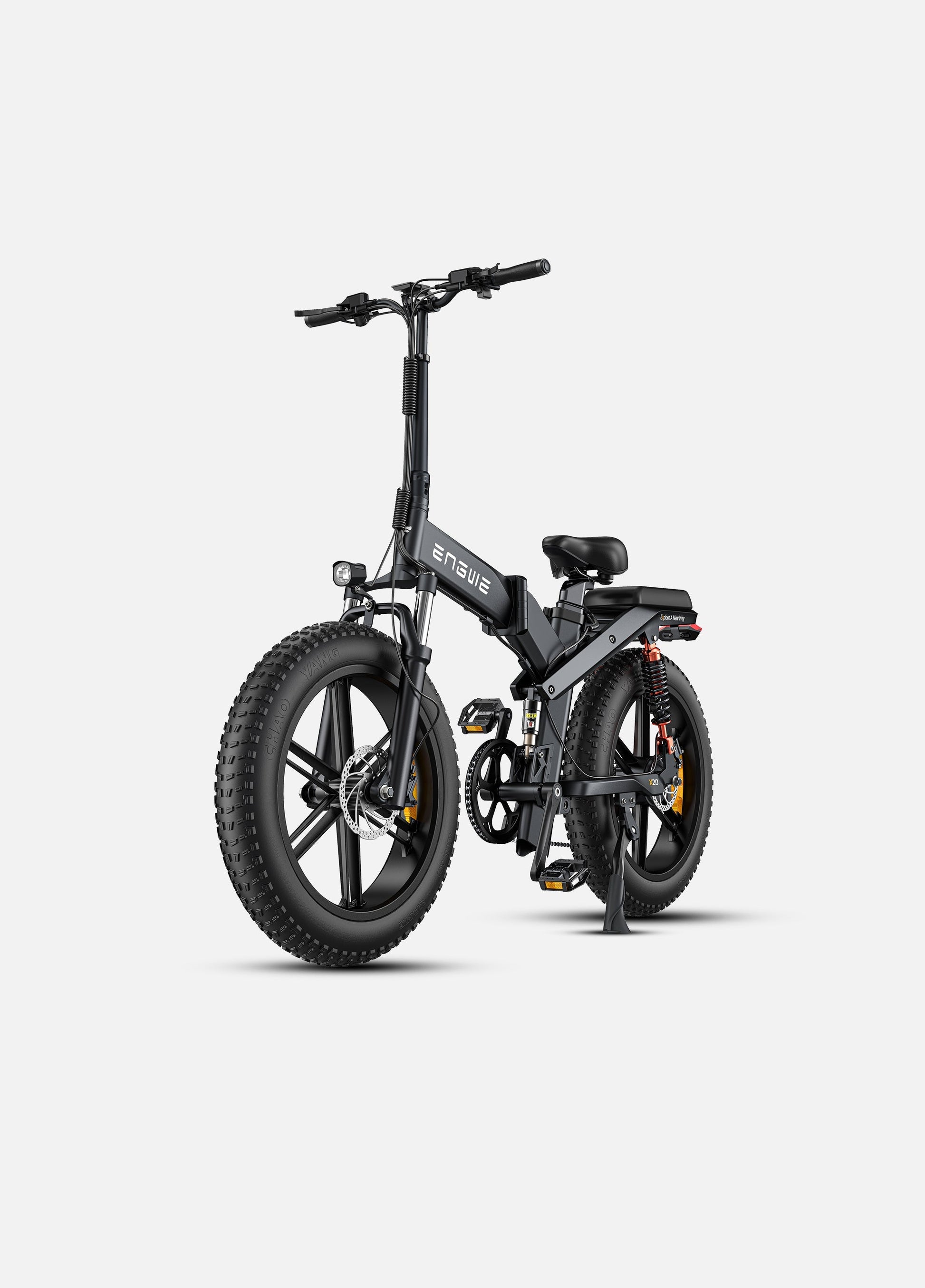

X20

• Material: 6061 Aluminum Alloy
• Tire Size: 20 x 4.0 Inches
• Motor: 1000W (peak) High-Speed Brushless Motor
• Torque: 65 N.m (Why Torque Matters?)
• Battery 1: 48V 14.4Ah Lithium-Ion Battery
• Battery 2: 48V 7.8Ah Lithium-Ion Battery
• Mileage: 100 km (ECO Mode) / 150 km (ECO Mode)
• Charging Time: About 7 hours
• Maximum Climbing Degree: 30°
• Brake: Hydraulic Disc Brakes
• Hub & Power: Integrated Hub Motor with 750W power
• Transmission System: Shimano 8 Gears
• Bike Weight: 37.2 kg
• Gross Weight: 46.32 kg
• Maximum Load: 330 lbs (150 kg)

Size

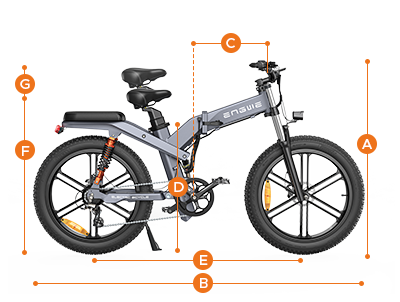

X26

Rider Height:5.5 (ft) -6.5 (ft)
Payload Capacity: 150KG (330lbs)
Package Dimensions (LWH): 158*35*87CM

• A -- Height: 114.7 cm
• B -- Total Length: 196.1 cm
• C -- Reach: 41.1 cm
• D -- Standover Height: 76.1 cm
• E -- Wheelbase: 122.1 cm
• F -- Minimum Saddle Height: 93.8 cm
• G -- Maximum Saddle Height: 127 cm

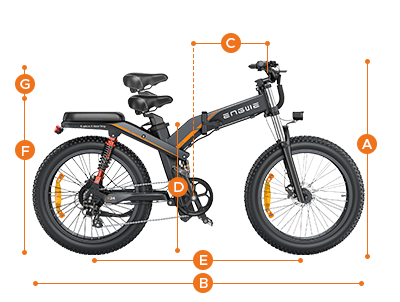

X24

Rider Height:5.6 (ft) -6.4 (ft)
Payload Capacity: 150KG (330lbs)
Package Dimensions (LWH): 162*32*79CM

• A -- Height: 108 cm
• B -- Total Length: 187.4 cm
• C -- Reach: 41.2 cm
• D -- Standover Height: 73.6 cm
• E -- Wheelbase: 118.4 cm
• F -- Minimum Saddle Height: 90.2 cm
• G -- Maximum Saddle Height: 121.5 cm

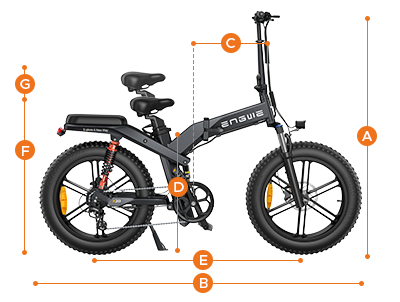

X20

Rider Height:5.4 (ft) -6.2 (ft)
Payload Capacity: 150KG (330lbs)
Package Dimensions (LWH): 152*32*73CM

• A -- Height: 113.5 cm
• B -- Total Length: 170.5 cm
• C -- Reach: 43.7 cm
• D -- Standover Height: 63.3 cm
• E -- Wheelbase: 112.5 cm
• F -- Minimum Saddle Height: 84.5 cm
• G -- Maximum Saddle Height: 106 cm

Please note: There may be a difference of 0~5 CM between measured and actual data.

What's the Box ?

FAQ

Q1: About shipping
*In Stock: Once your order confirmation is complete, we will begin shipping within the next 2 business days. This means that your item will start shipping on the 3rd business day after your order is confirmed.
*Pre Sale: Please refer to the product page for detailed pre-order shipping times.
*Out Of Stock: This means there is no stock in recently half a month.

*Shipped from UK warehouse, it takes approximately 5-7 working days to receive your e-bike. (Remote areas and islands are excluded from delivery.)
*If you have other special requirements or urgent delivery date, please communicate with our customer service team when placing your order, we will try our best to meet your needs.

• Important:
  Please make sure your delivery address and phone number are accurate and available when placing an order.

  If your order is shipped by BJS carrier, the delivery person will contact the recipient twice by phone to reserve a delivery time.

  Change the delivery time for free(Please call the BJS carrier at 01922 645 650):
  You must change the new delivery time 1 day before the reserved delivery time. (For example, if you reserved a delivery at 1 pm today, you must reserve a new delivery time before 1 pm yesterday).

  You have to bear the re-delivery cost:
  Under the premise that the delivery time has been agreed upon with you if the delivery person arrives at the delivery address and no one receives the goods, the goods will be returned to the warehouse. You need to pay the re-delivery cost. To avoid the cost of re-delivery, you can call the delivery person and ask your family or neighbors to sign for the package if you are inconvenient to sign the package at that time.
  If you change the delivery time between 24 hours from the agreed delivery time, the re-delivery cost will be incurred. (For example, if you reserved a delivery at 1 pm today, your reserve request was made after 1 pm yesterday).

  Please note: The express delivery company cannot be specified. We will arrange the most suitable express delivery for your delivery address.

Please Note: Remote areas will incur additional shipping charges, our free shipping policy does not cover this additional freight. You need to pay for the additional freight.
Please click here to learn if your location is the remote areas.
We will contact you after you place the order regarding to the details of the freight through email. Please pay close attention to your email after you place the order.

Q2: X26 User Manual:
Please click here to view the X26 User Manual.

Q3: X24 User Manual
Please click here to view the X24 User Manual.

Q4: X20 User Manual
Please click here to view the X20 User Manual.

Q5: How to install X26 e-bike?
Please click here to view the instructional bike assembly video for the X26.

Q6: Unboxing and general bike setup:
Unboxing the X26
How to restore the X26 to factory default
How to change between KM and Miles on the X26
Dual battery installation sequence on the X26

Unboxing and general bike setup:
Unboxing the X20
How to restore the X20 to factory default
X20 Throttle activation
X20 Throttle deactivation
How to change between KM and Miles on the X20

Q7: Where and how to buy the parts that you need:
We recommend reaching out to the corresponding seller of your e-bike purchase for information. If you cannot get the information you require, feel free to reach out to our Customer Service email at service@engwe-bikes.com

Q8: My X26/X24/X20 won’t turn on or is losing power while riding:
Please click here to view an instructional video on solving these issues.
