MAPFOUR N1 AIR

£1,299.00 GBP

~~£1,399.00 GBP~~ £1,299.00 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Color Ink Green Charcoal Gray

Style N1 Air N1 Air ST

Quantity

Specs

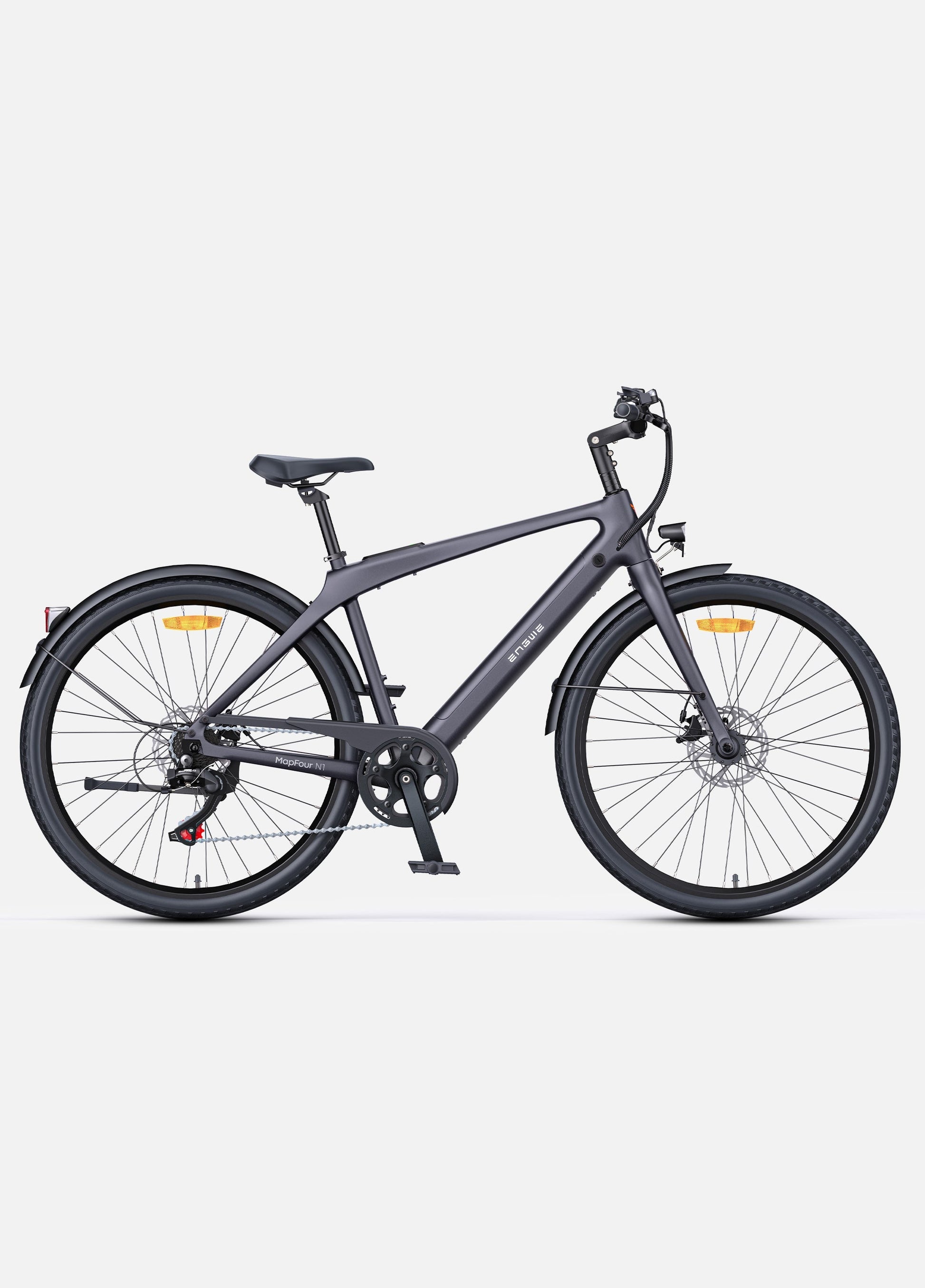

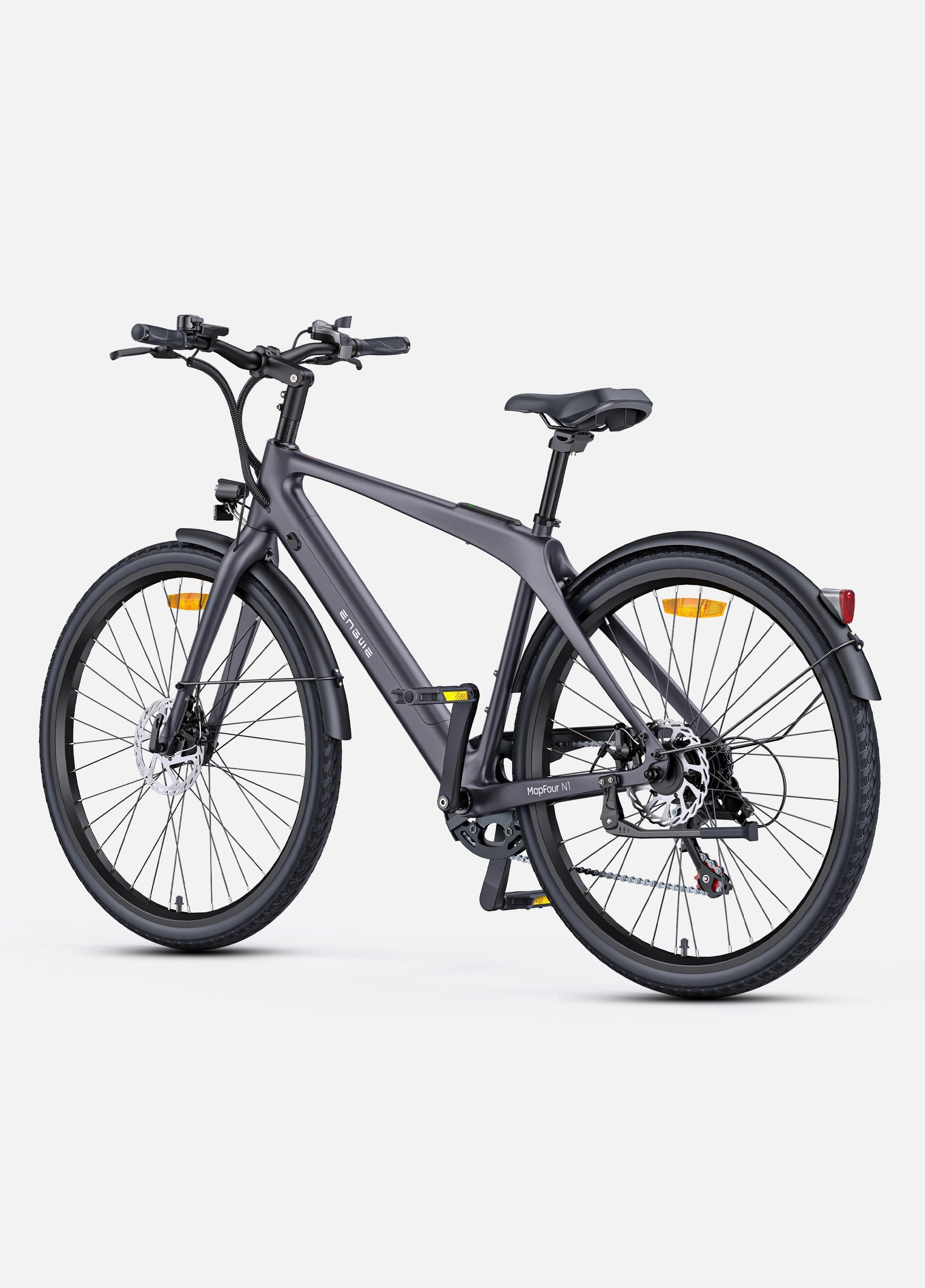

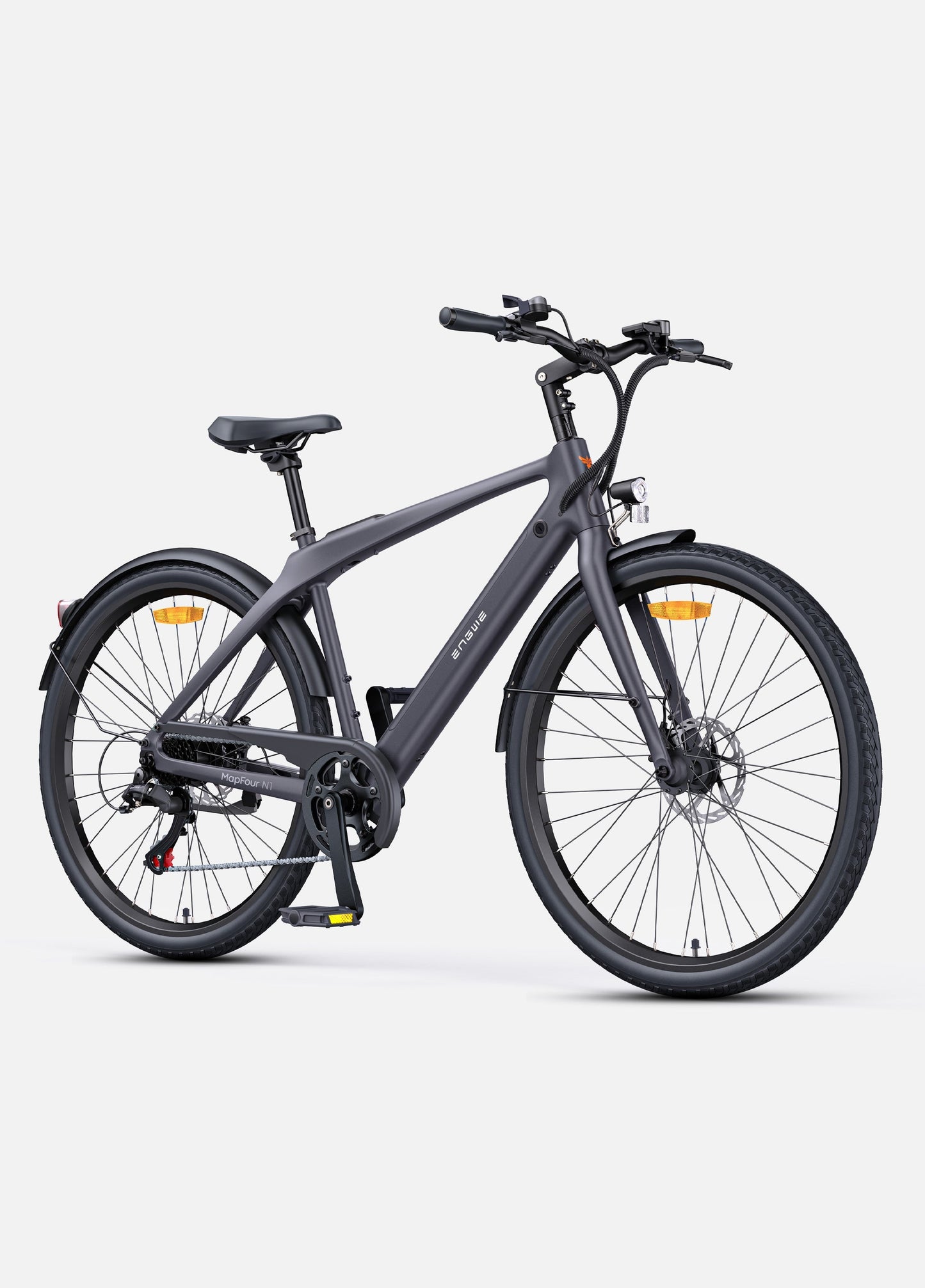

N1 Air

Frame Material: Carbon Fiber
Fork: Aluminum
Motor: MIVICE M070 Rear Hub Motor
Sensor: Torque Sensor
Max Torque: 40 Nm
Tires: 700*38C Spoke Tires
Lights: Front Light & Solar Tail Light

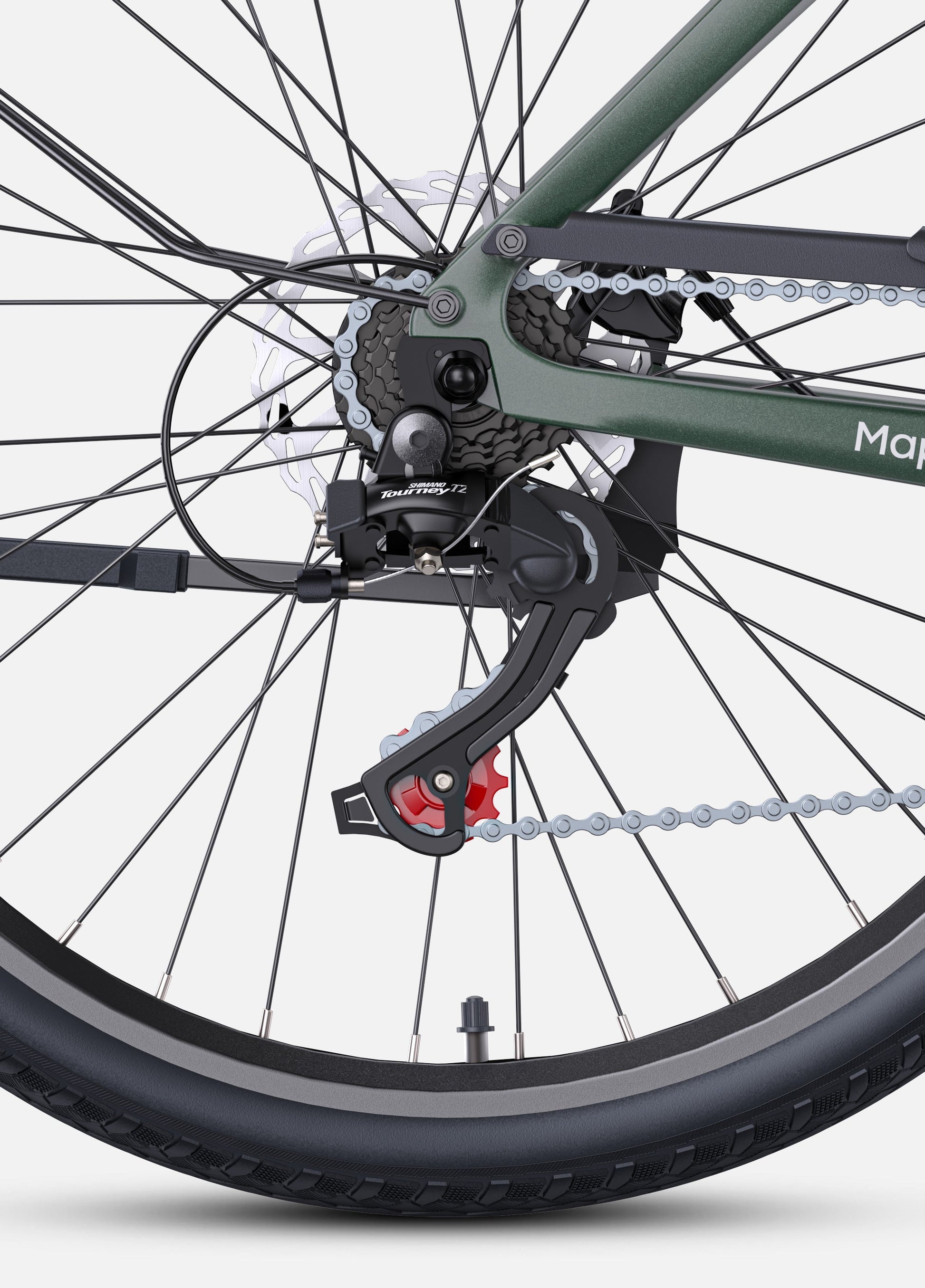

Transmission: SHIMANO 7-Speed
Brakes: 160 mm Front & Rear Mechanical Disc Brakes
Battery: 36V 10Ah Samsung Removable Lithium-Ion
Max Speed: 25 km/h
Mileage: Up to 100 km (PAS 1 Level)
Charging Time: About 5-8H (The charging time of the battery depends on the usage of the battery.)
Maximum Climbing degree: 10°
Display: LCD Color Display
Bike Weight: 15.6 kg (34.39 lbs)
Gross Weight: 25.4 kg (55.99 lbs)

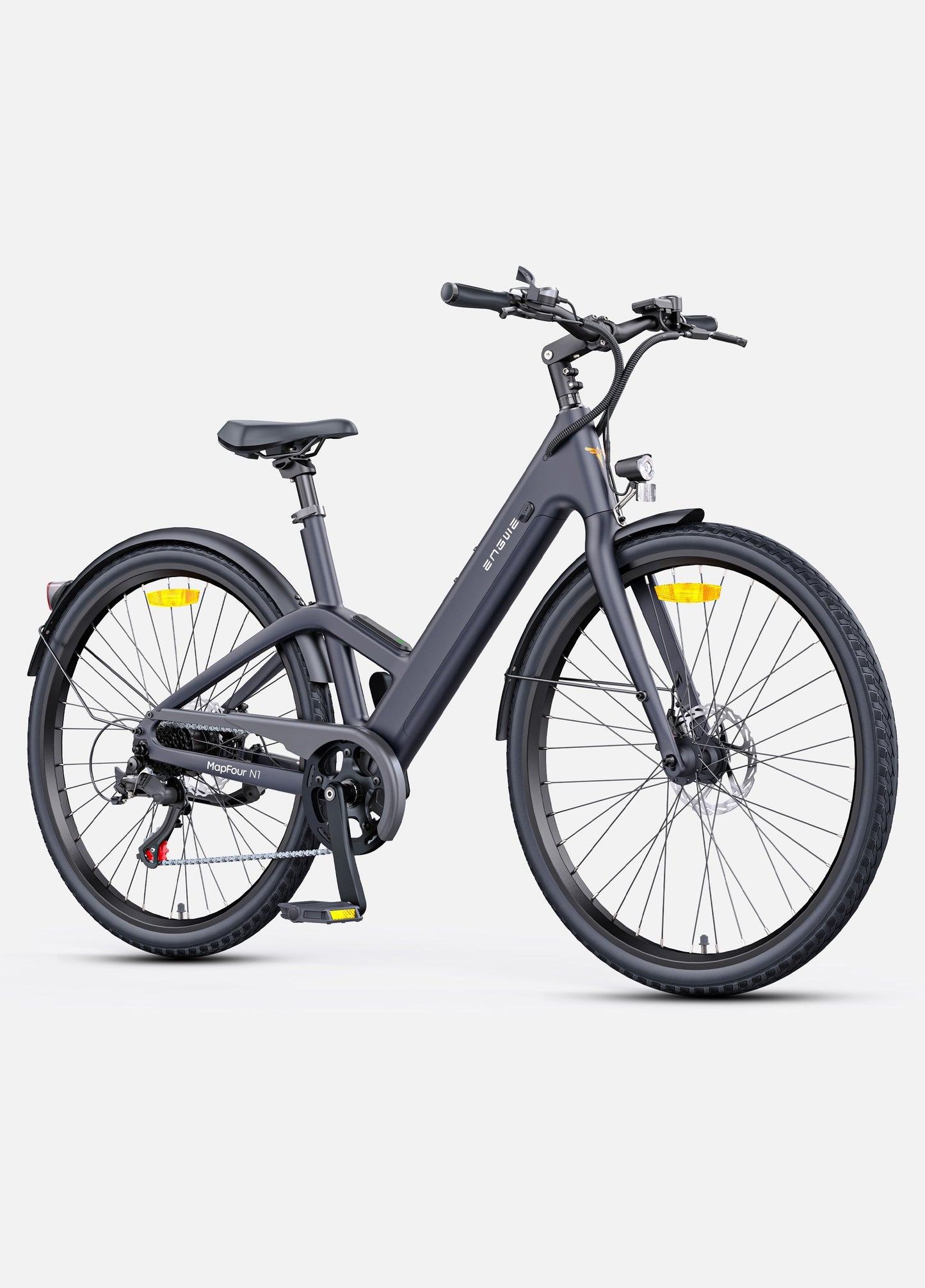

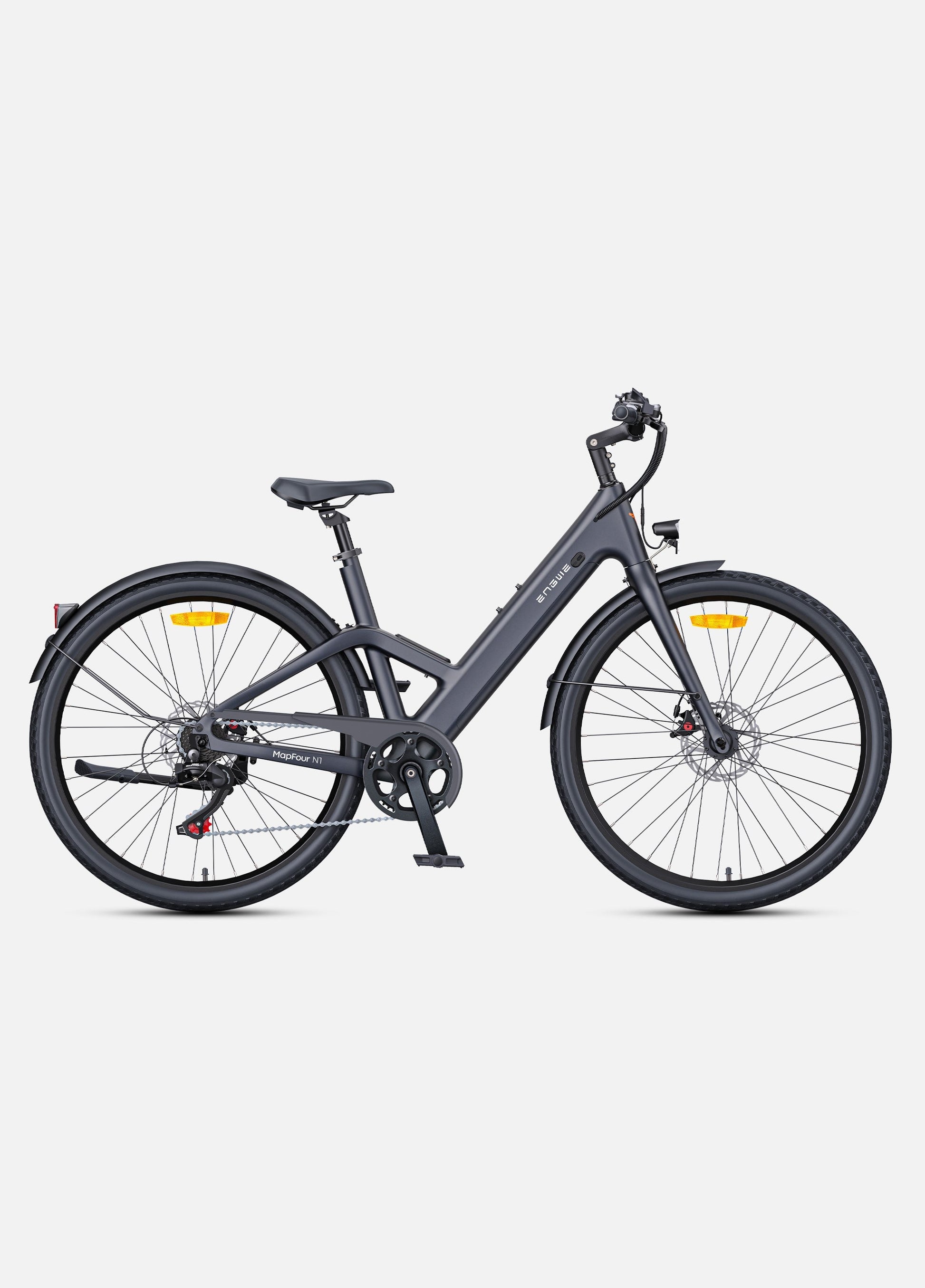

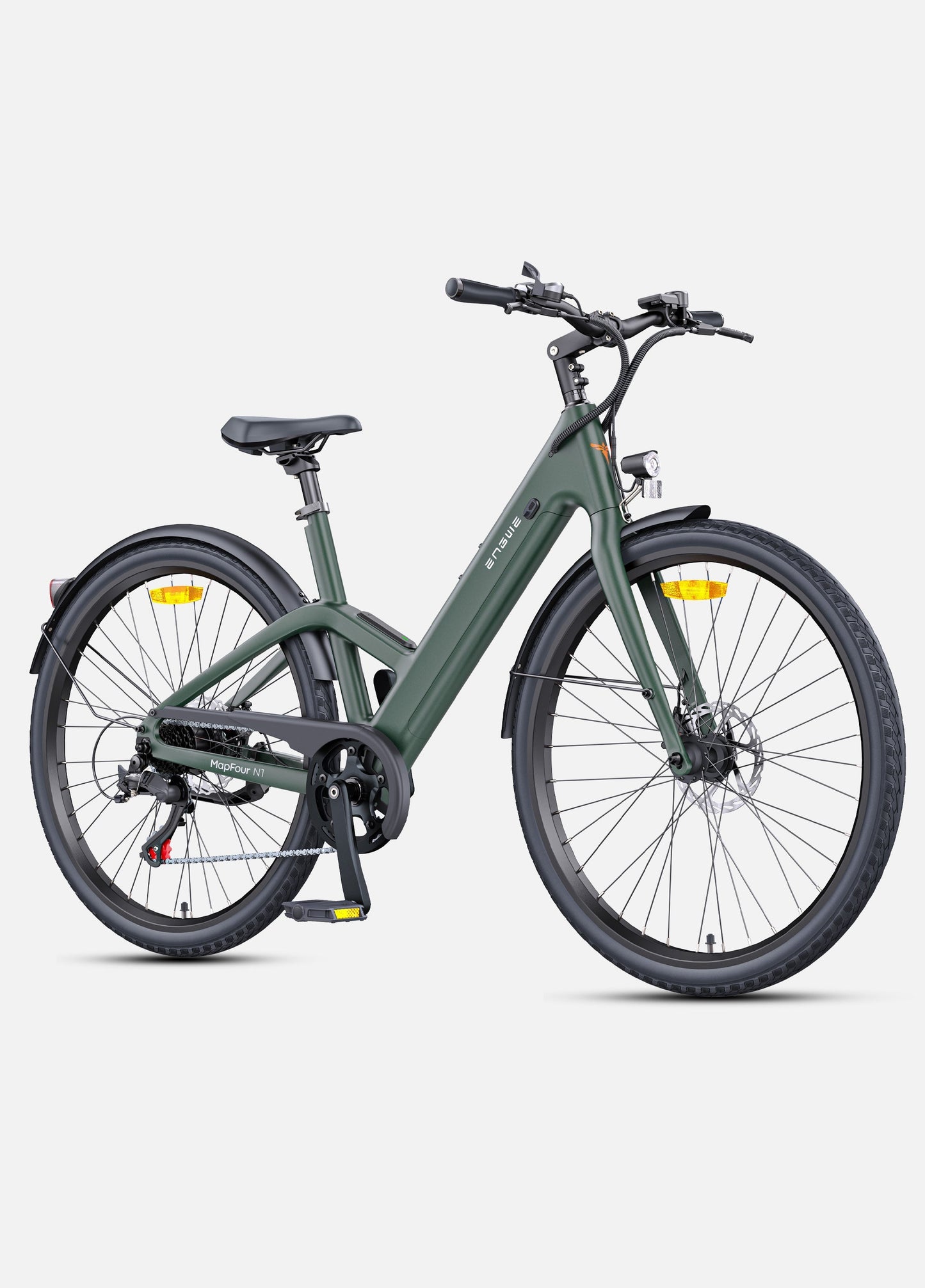

N1 Air ST

Material: Carbon Fiber Frame, Aluminium Fork
Motor: MIVICE M070 Rear Hub Motor
Torque: 40 N.m
Sensor: Torque Sensor
Tires: 700*38C Spoke Tires
Lights: Front light & Solar Tail Light
Transmission System: SHIMANO 7-Speed
Brake: 160mm Front & Rear Mechanical Disc Brake
Battery: 36V10Ah SAMSUNG Removable Lithium-ion Battery
Speed: 25KM/H
Mileage: 100 km (PAS 1 level)
Charging Time: About 5-8H (The charging time of the battery depends on the usage of the battery.)
Maximum Climbing Degree: 10°
Display: LCD Color Display
Bike Weight: 16.4 kg(36.15lbs)
Gross Weight: 25.4 kg (55.99 lbs

All stated weight numbers have a +/- 3%-5% tolerance. Bike weight includes the battery but excludes all accessories.

Size

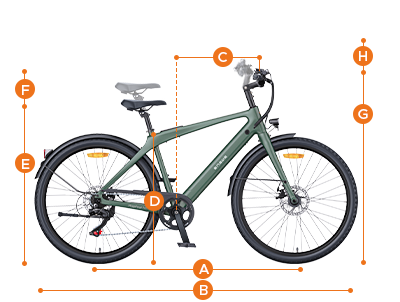

N1 Air

Rider Height of N1 Air: 5.25 (ft)- 6.4(ft)
Rider Height of N1 Air ST: 5.1 (ft)-6.2(ft)
Payload Capacity: 120KG (264.5lbs)
Package Dimensions (LWH):148.4*22.5*73CM

A--Wheelbase: 110.5 cm
B--Total Length: 181 cm
C--Reach: 44 cm
D--Standover Height: 75.5 cm
E--Minimum Saddle Height: 82.5 cm
F--Maximum Saddle Height: 95 cm
G--Min Handlebar Height: 105 cm
H--Max Handlebar Height: 112 cm

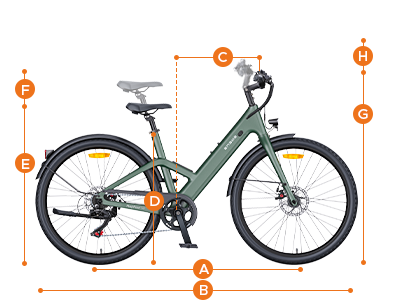

N1 Air ST

Rider Height: 5.41(ft)-6.56(ft)
Payload Capacity: 120KG (264.5lbs)
Package Dimensions (LWH):146.4*22.5*73CM

A--Wheelbase: 109.1 cm
B--Total Length: 179.7 cm
C--Reach: 42 cm
D--Standover Height: 75.8 cm
E--Minimum Saddle Height: 84.5 cm
F--Maximum Saddle Height: 100 cm
G--Min Handlebar Height: 105 cm
H--Max Handlebar Height: 112 cm

Please note: There may be a difference of 0~5 CM between measured and actual data.

What's in the box?

N1 Air E-bike *1
36V 10Ah SAMSUNG Lithium-Ion Battery *1
48V 2Ah Battery Charger *1
Pedals *2
Front & Rear Fenders *1
Bike Kickstand *1
Assembly Tools *1

FAQ

Q1: About shipping
*In Stock: Once your order confirmation is complete, we will begin shipping within the next 2 business days. This means that your item will start shipping on the 3rd business day after your order is confirmed.
*Pre Sale: Please refer to the product page for detailed pre-order shipping times.
*Out Of Stock: This means there is no stock in recently half a month.

*Shipped from UK warehouse, it takes approximately 5-7 working days to receive your e-bike. (Remote areas and islands are excluded from delivery.)
*If you have other special requirements or urgent delivery date, please communicate with our customer service team when placing your order, we will try our best to meet your needs.

Important:
Please make sure your delivery address and phone number are accurate and available when placing an order.

If your order is shipped by BJS carrier, the delivery person will contact the recipient twice by phone to reserve a delivery time.

Change the delivery time for free(Please call the BJS carrier at 01922 645 650):
You must change the new delivery time 1 day before the reserved delivery time. (For example, if you reserved a delivery at 1 pm today, you must reserve a new delivery time before 1 pm yesterday).

You have to bear the re-delivery cost:
Under the premise that the delivery time has been agreed upon with you if the delivery person arrives at the delivery address and no one receives the goods, the goods will be returned to the warehouse. You need to pay the re-delivery cost. To avoid the cost of re-delivery, you can call the delivery person and ask your family or neighbors to sign for the package if you are inconvenient to sign the package at that time.
If you change the delivery time between 24 hours from the agreed delivery time, the re-delivery cost will be incurred. (For example, if you reserved a delivery at 1 pm today, your reserve request was made after 1 pm yesterday).

Please note: The express delivery company cannot be specified. We will arrange the most suitable express delivery for your delivery address.

Please Note: Remote areas will incur additional shipping charges, our free shipping policy does not cover this additional freight. You need to pay for the additional freight.
Please click here to learn if your location is the remote areas.
We will contact you after you place the order regarding to the details of the freight through email. Please pay close attention to your email after you place the order.

Q2: Compliance with EU regulations
Please here to view the N1 Air and N1 Air ST certified CE by TÜV Rheinland.

Q3: ENGWE Mapfour N1 Air User Manual
Please click here to view Mapfour N1 Air User Manual.

Q4: ENGWE Mapfour N1 Air ST User Manual
Please click here to view Mapfour N1 Air ST User Manual.

Q5: ENGWE APP Manual
Please click here to view ENGWE APP User Manual.
