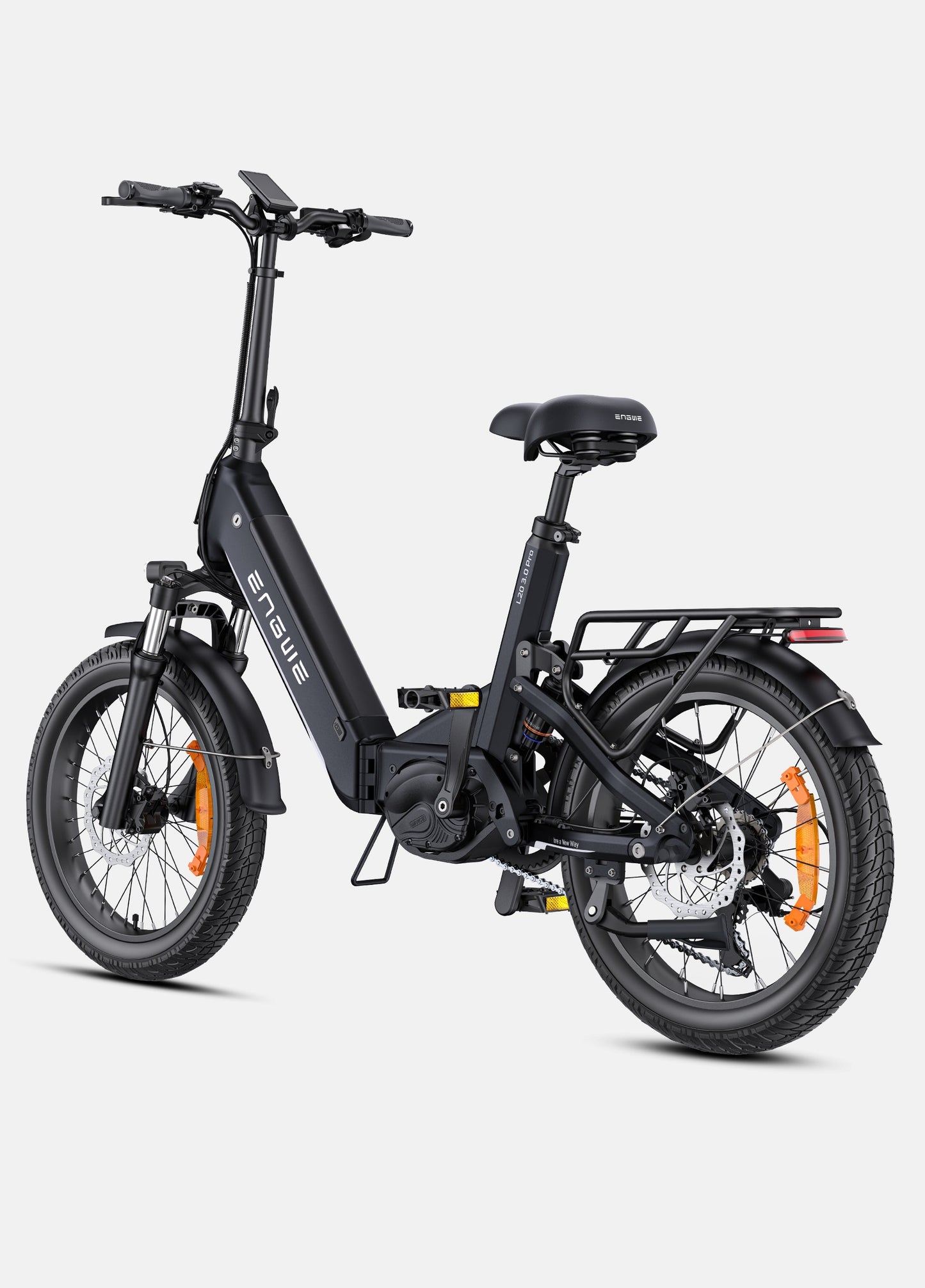

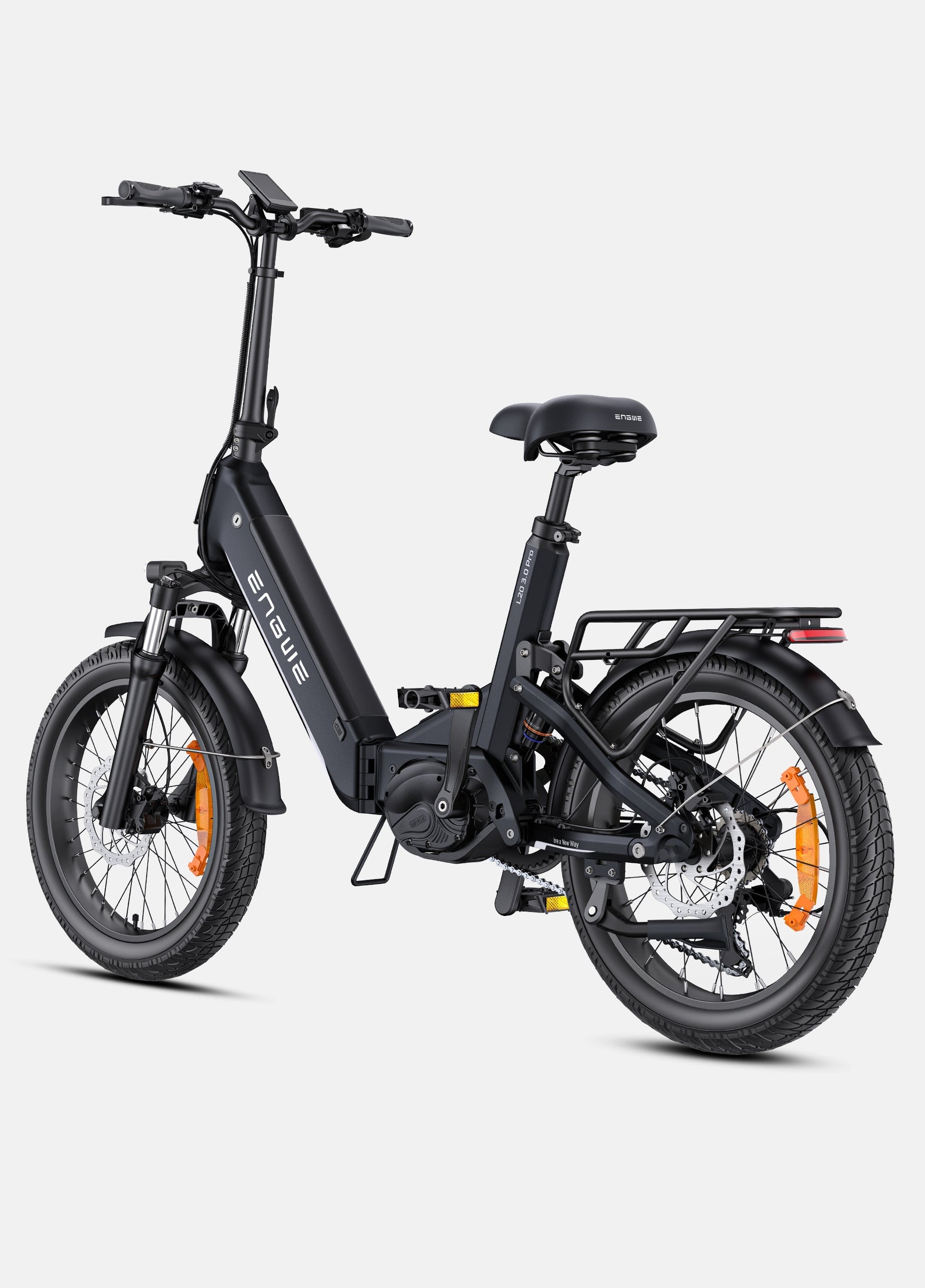

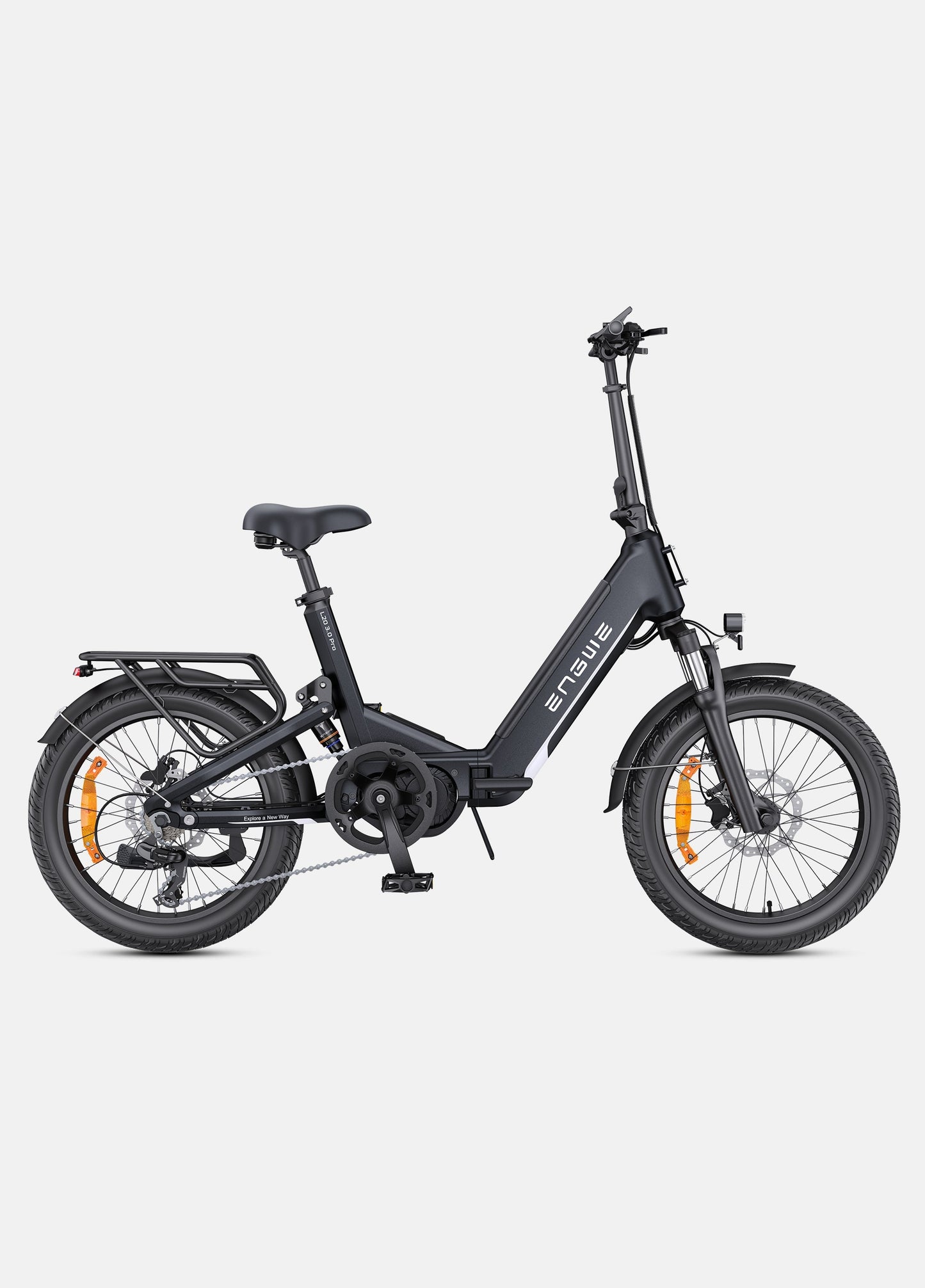

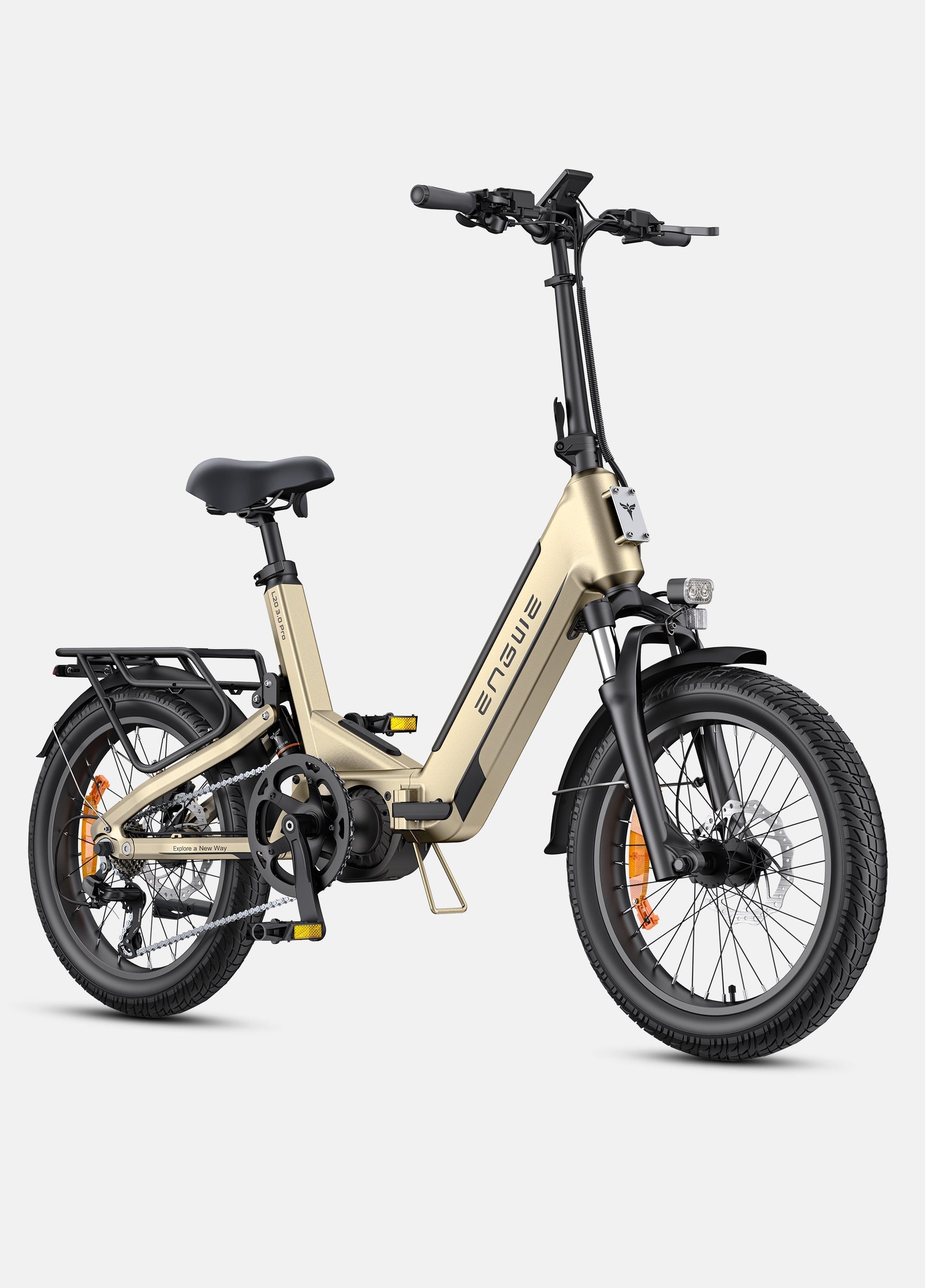

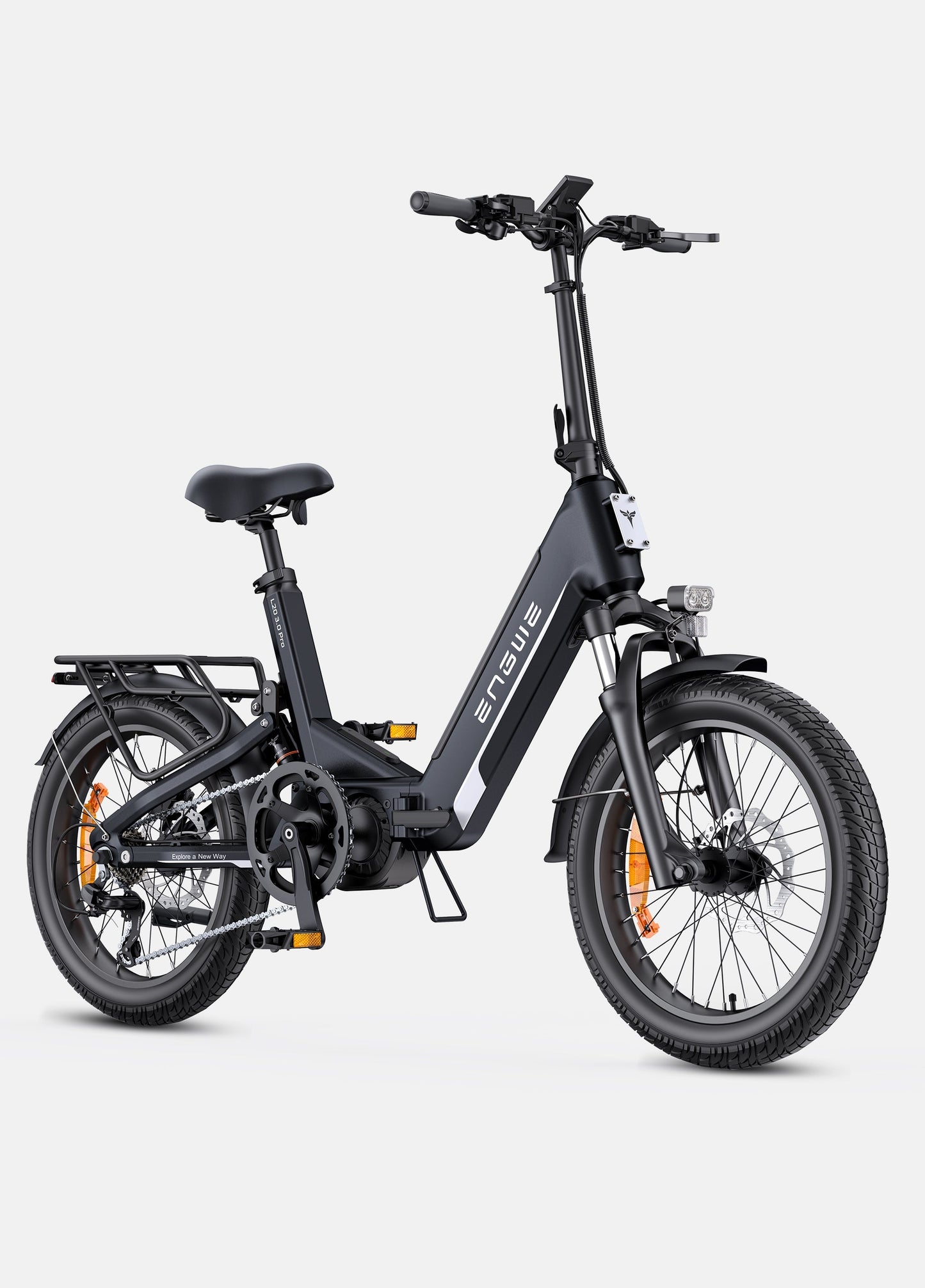

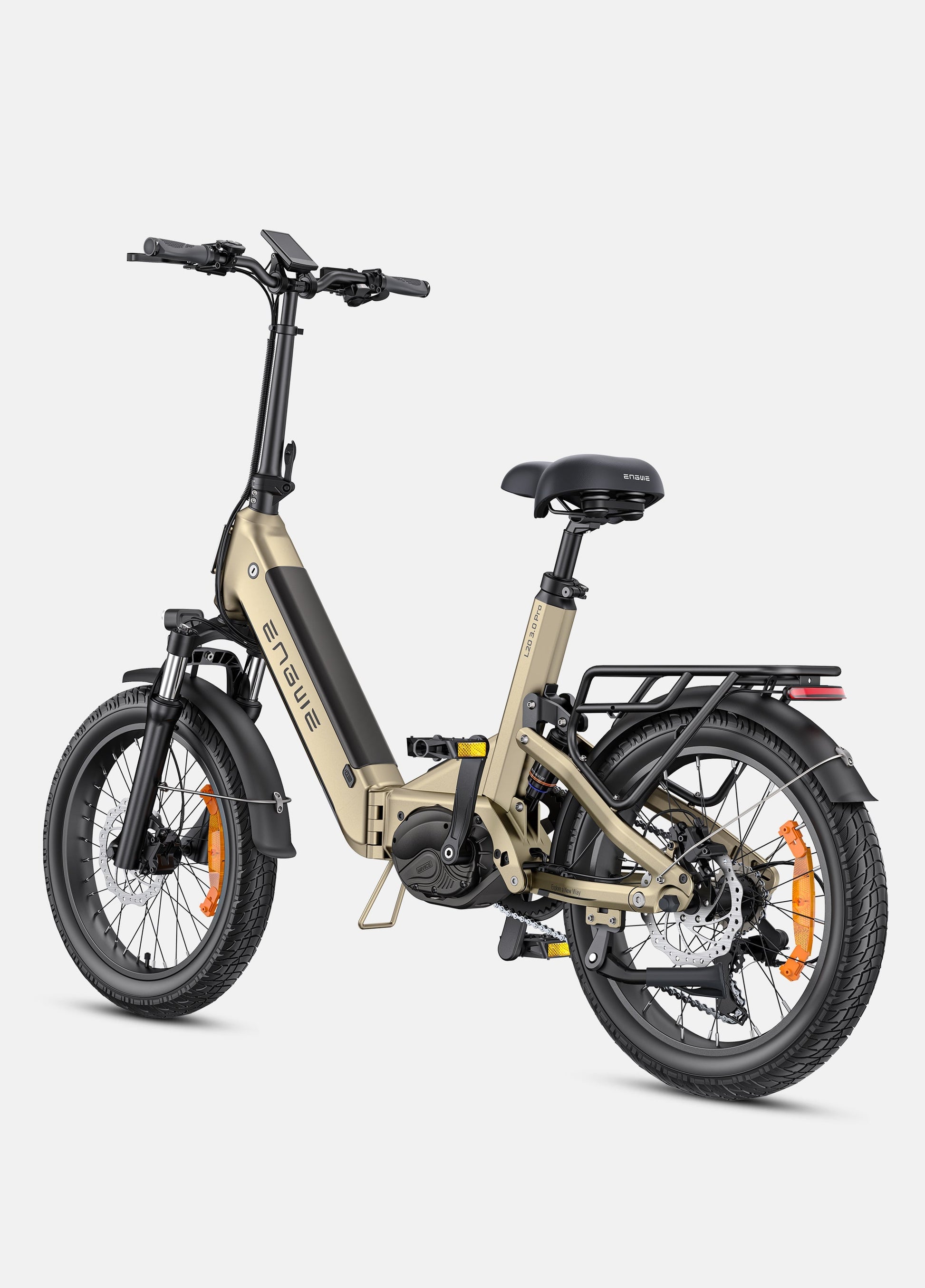

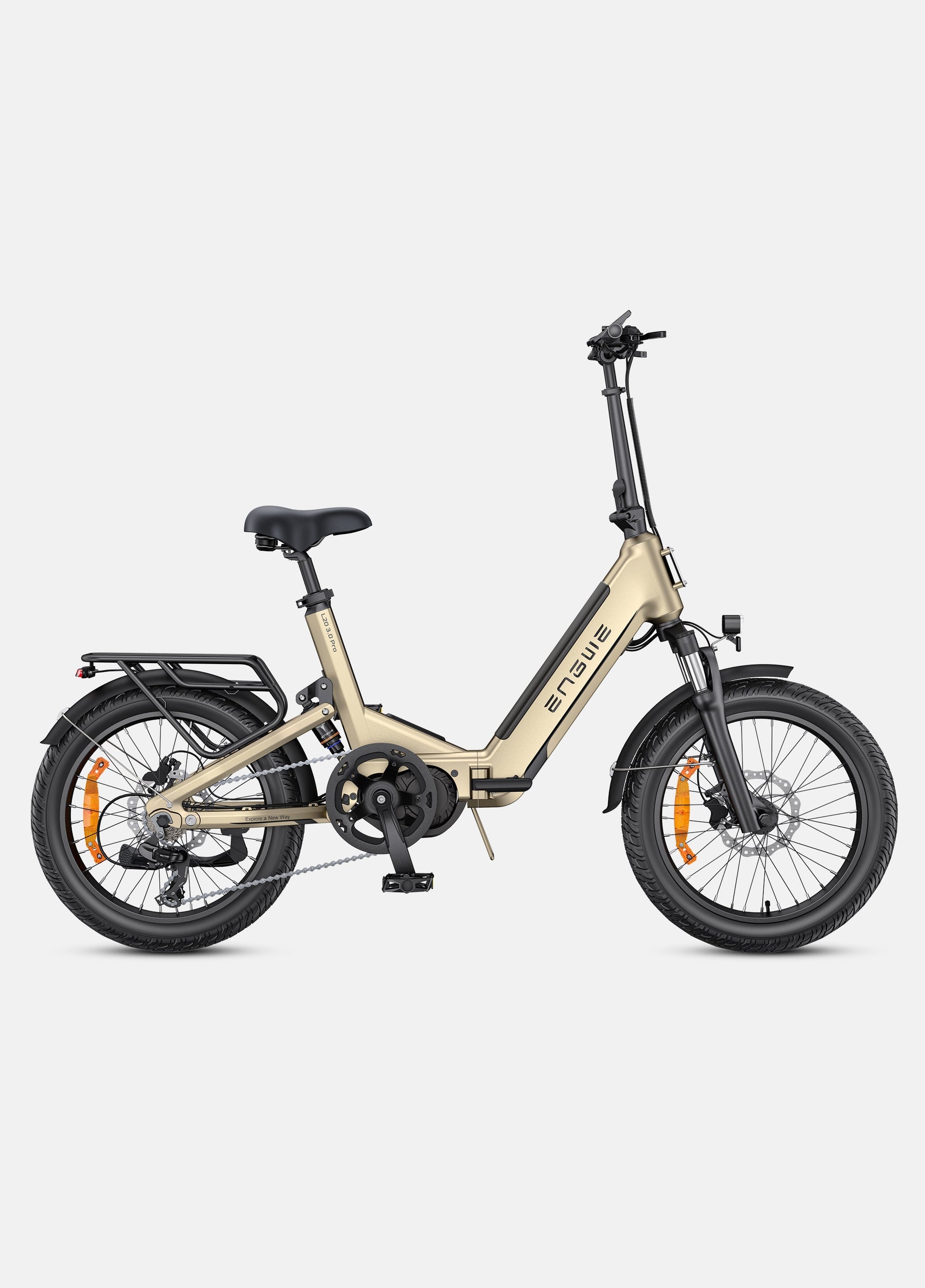

L20 3.0 Pro

Specs

General Info

• Model: L20 3.0 Pro
• Max Load Capacity: 150kg (330 lbs)
• Ride Height: 5'1" - 6'3" (155cm - 190cm)
• Certification: CE (EN15194)
• Pedal Assist: 5 Levels
• Fold: Yes
• Lab Tested Range: 160 km (Fully Charged)
• Real-World Range:
  • 140 km (PAS 1)
  • 110 km (PAS 3)
  • 96 km (PAS 5)
• Waterproof Ratings:
  • IPX7 (Waterproof Wiring)
  • IPX6 (Display & Lights)
  • IPX5 (Motor & Controller)
  • IPX4 (Battery Box)
• Terrain:
  • Tarmac Roads & Bicycle Routes
  • Gravel-Paved Paths
  • Sandy Beaches & Grass
  • Country Roads & Paved Trails
• Bike Weight: 32.8 kg (72.3 lbs)
• Gross Weight: Approx. 42kg (92.6 lbs)

Frameset:

• Frame Material: 6061 Aluminum Alloy, Internal Battery, Step-Through Design
• Frame Style: Compact, Full Suspension
• Fork: Hydraulic, Adjustable Lockout, One-Piece Die-Cast Aluminum
• Rear Suspension: 30mm Travel

Wheel Set:

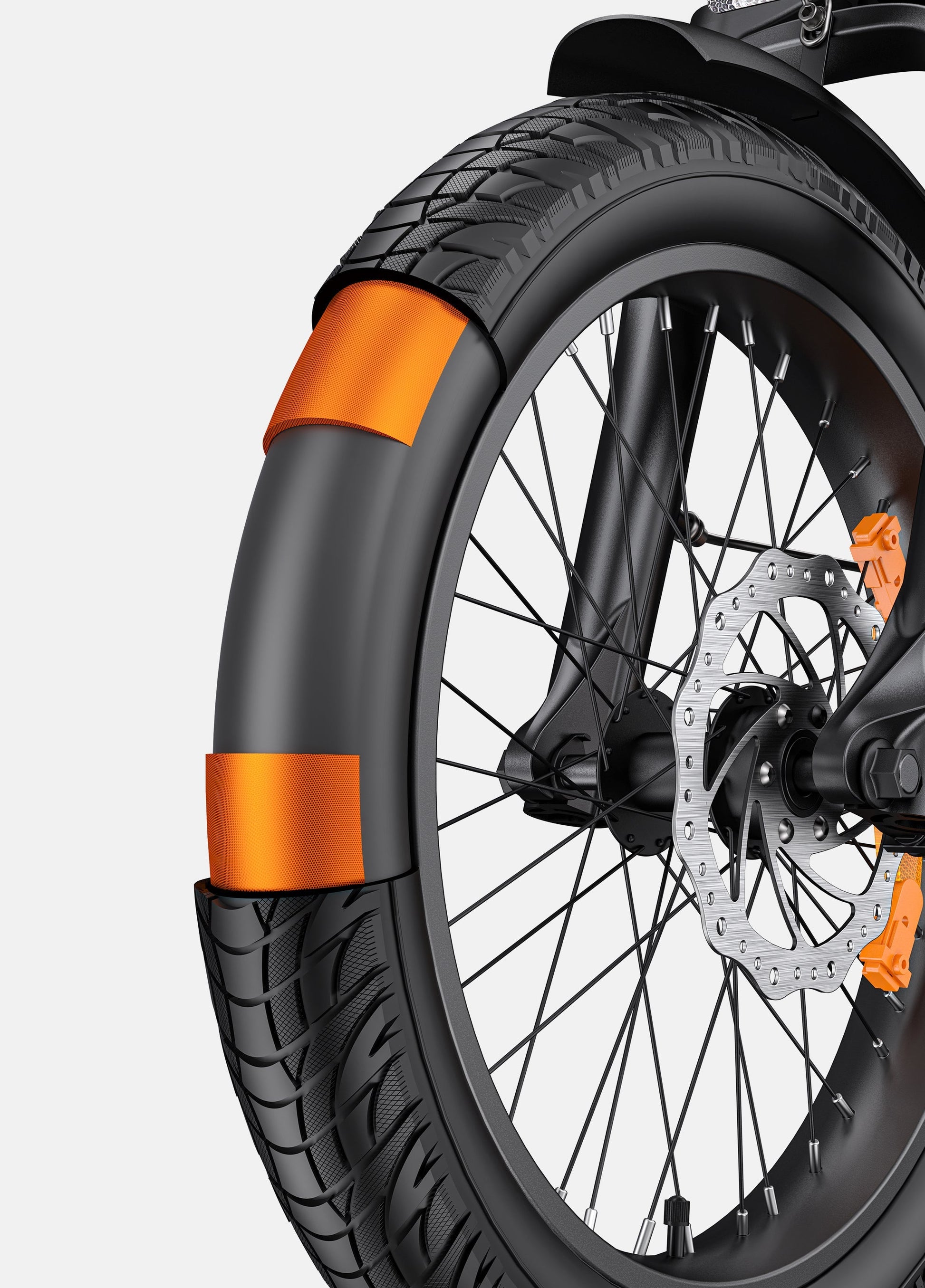

• Tires: 20" × 3.0" Urban Hybrid Tires
• Puncture Protection: 3mm Anti-Puncture Layer
• Wheels: 20-inch, 12-gauge Spokes, 36-hole, Double-Wall Aluminum, Black

E-Bike System:

• Motor: Mivice X700 Mid-Drive, 48V
• Max Torque: 100Nm
• IOT: ENGWE IOT Module with GPS, 4G & Bluetooth
• Assist System: Torque Sensor
• Battery: 48V 15Ah (720Wh), Samsung 21700 Cells with BMS

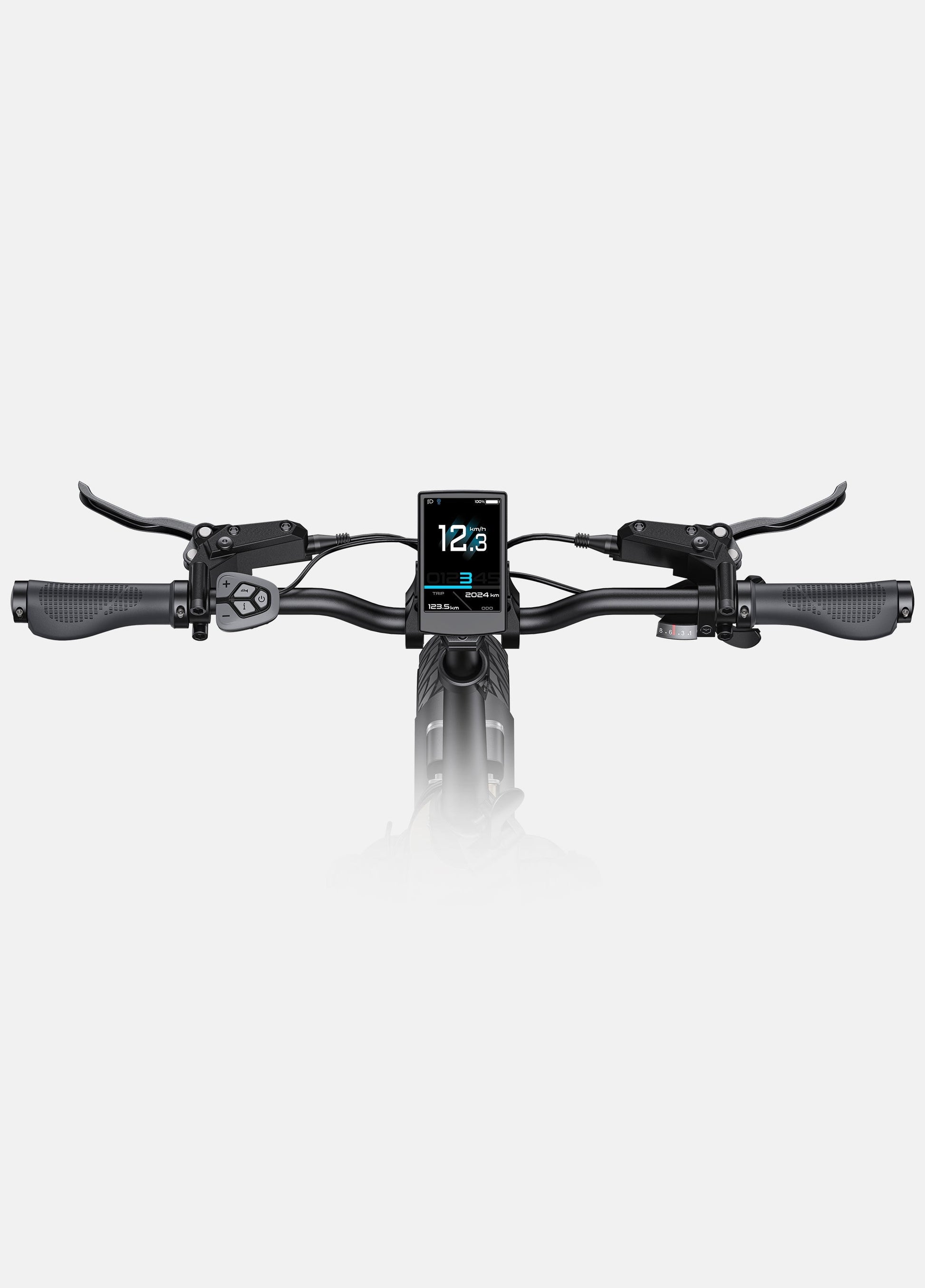

• Display: 3.5" LCD Color Display, ENGWE-Designed, Mid-Position
• ENGWE App: App Control Available
• Charger: 54.6V 8A Output
• Front Light: 30 Lux with Integrated E-Horn
• Rear Light: Automatically brightens When Braking or Shaking

Brakes:

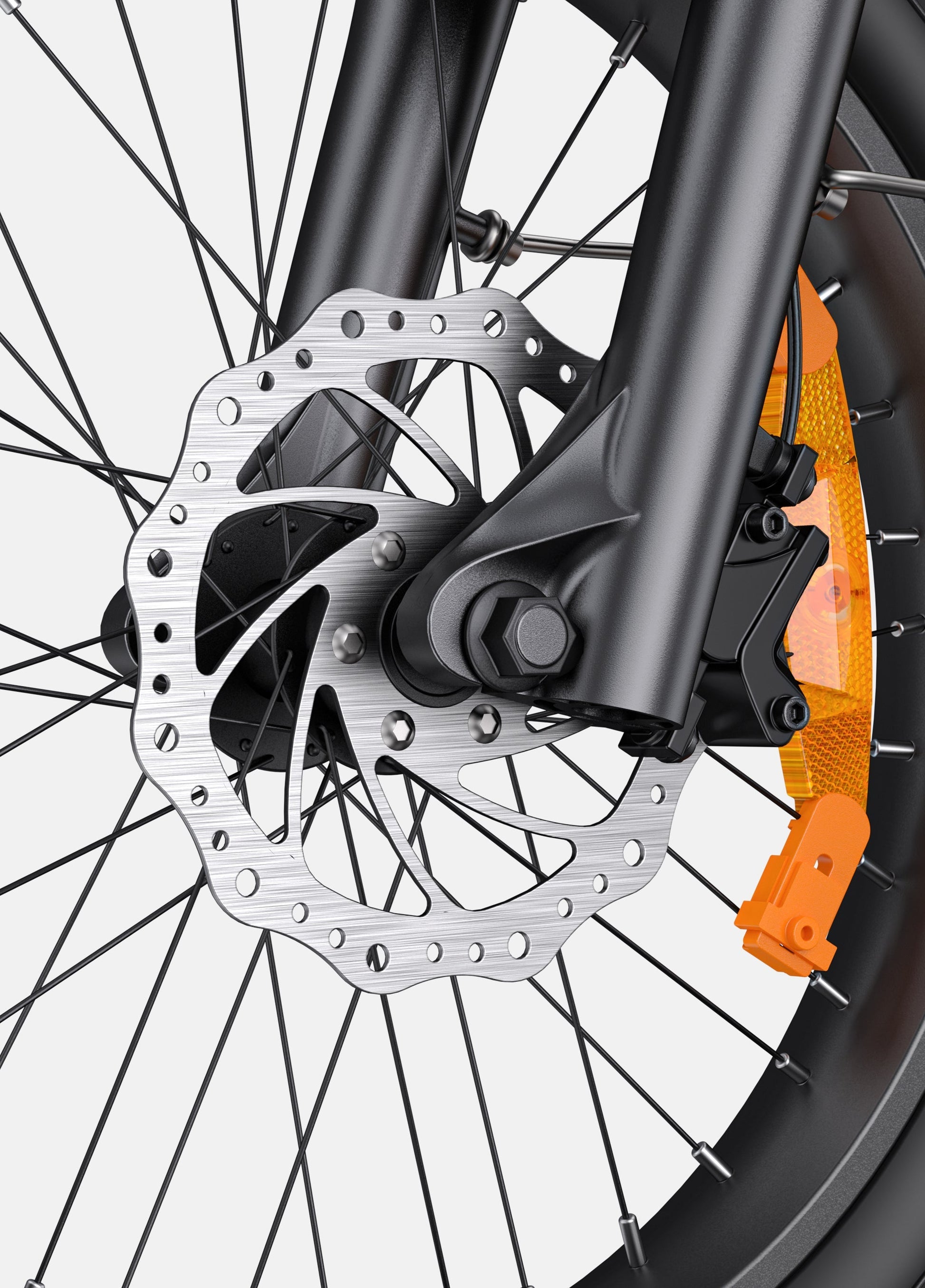

• Brake Type: Hydraulic, Dual-Piston
• Disc Rotor: 180mm Front & Rear

Drivetrain:

• Chain: KMC E8S Anti-Rust, 112 Links
• Chainring: 48T
• Crank: 170mm

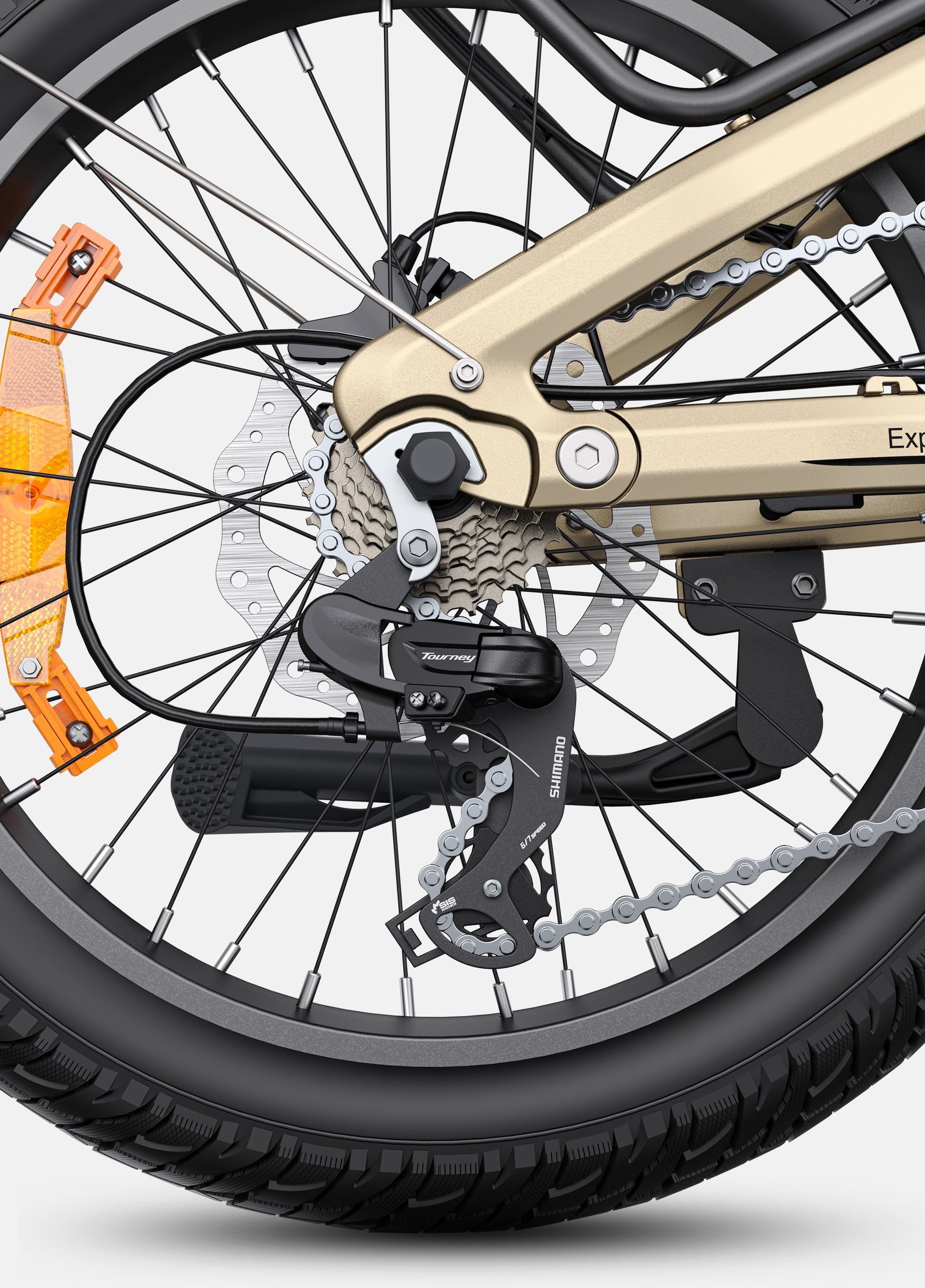

• Rear Derailleur: Shimano Tourney RD-TY300, 7-Speed
• Shifter: Shimano SL-M315-7R
• Cassette: 7-Speed, 14T-28T
• Pedals: Boron Steel, Non-Foldable

Cockpit:

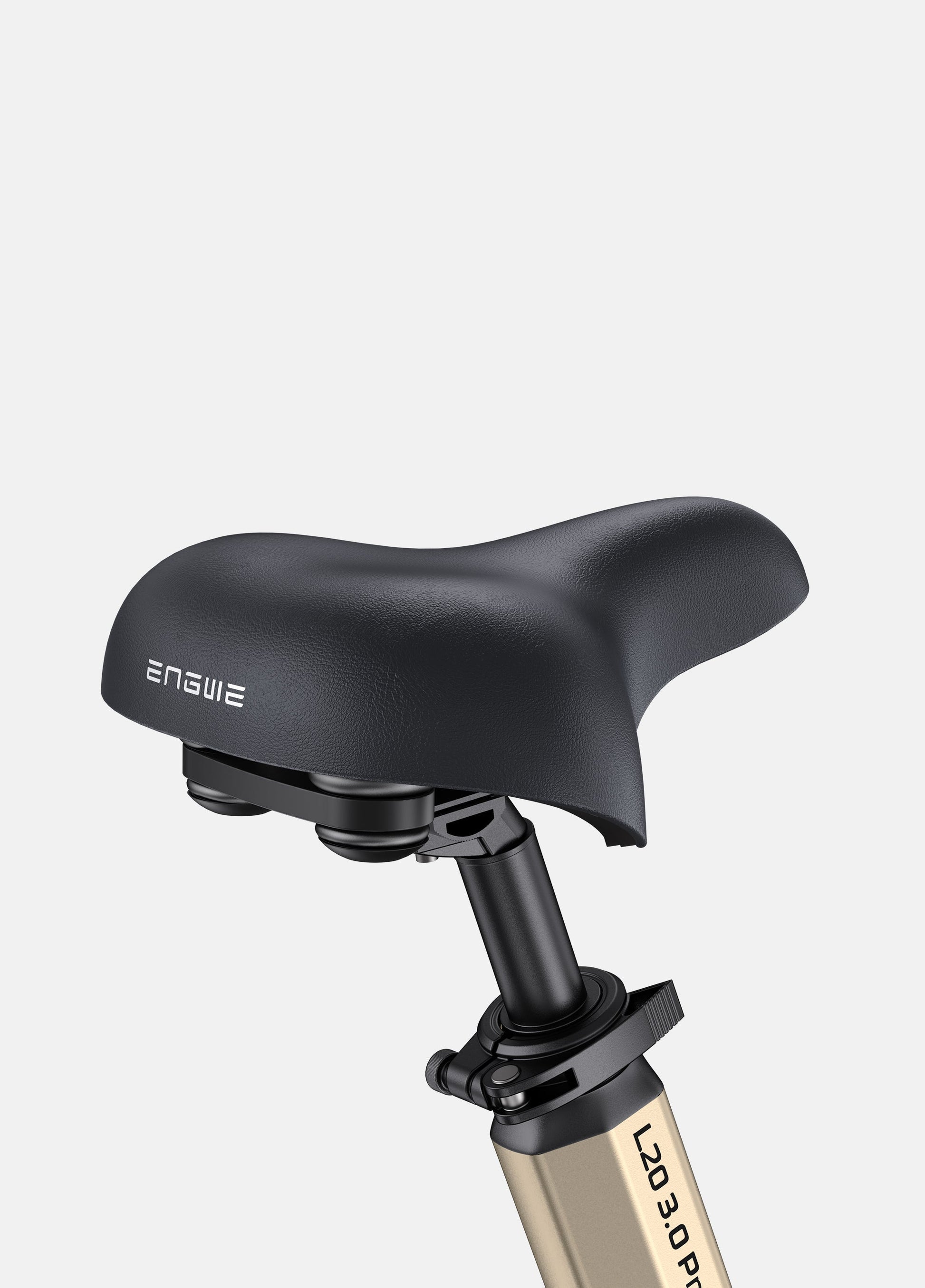

• Saddle: ENGWE Soft Saddle
• Seat Post: 10-Level Adjustable
• Handlebars: 680mm Width
• Stem: Foldable
• Seat Clamp: Quick-Release

Size

Unfolded

Ride Height: 5'1" - 6'3" (155cm - 190cm)
Max Load Capacity: 150kg (330 lbs)
Package Dimensions: 144*27*64 cm

• A - Handlebar Height: 110.2 cm
• B - Total Length: 172.0 cm
• C - Reach: 51.2 cm
• D - Standover Height: 38.0 cm
• E - Wheelbase: 116.5 cm
• F - Minimum Saddle Height: 82.0 cm
• G - Maximum Saddle Height: 102.0 cm

Please note: There may be a difference of 0~5 cm between measured and actual data.

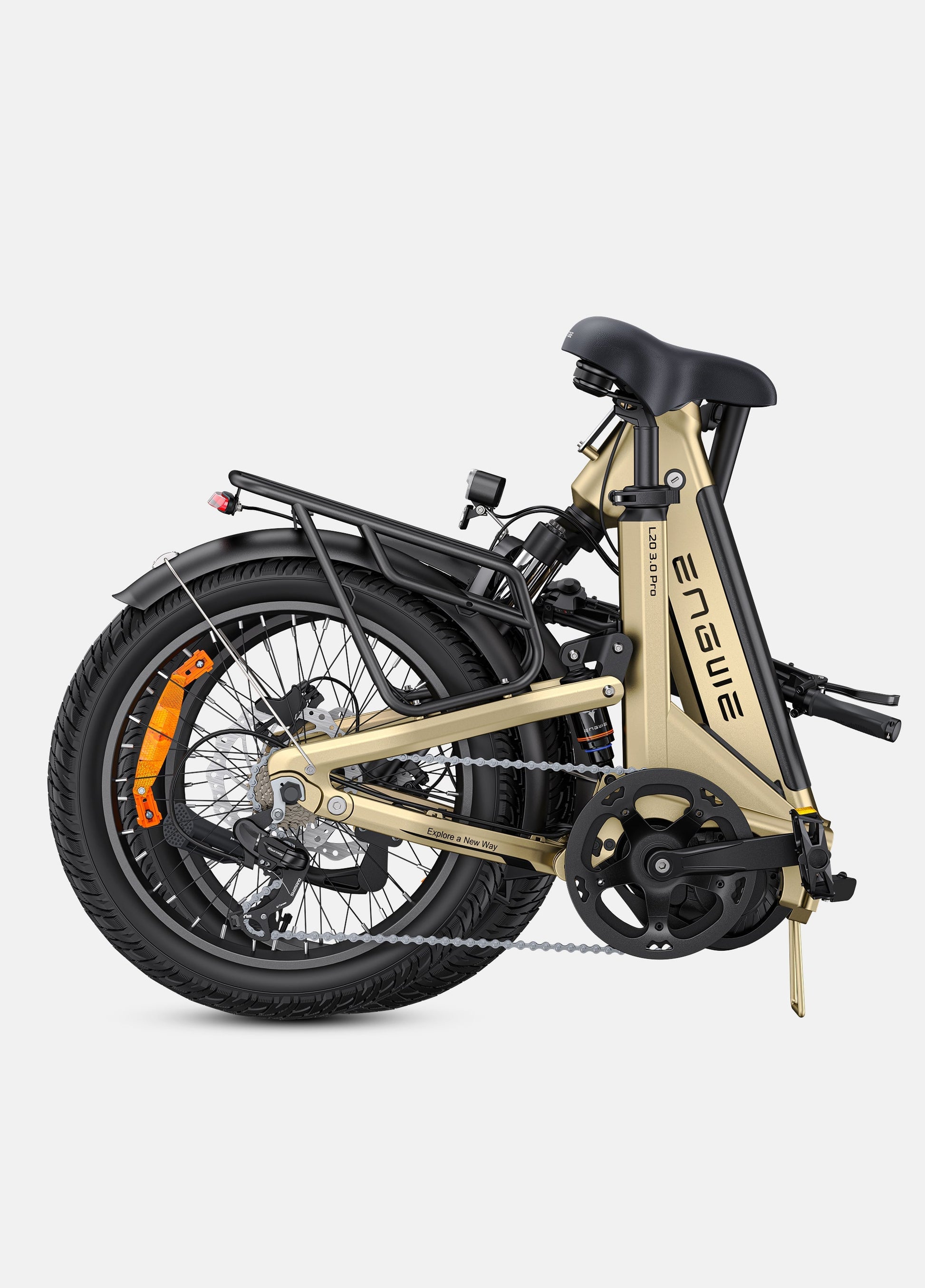

Folded Size: 102*53*78 cm

• A - Height: 78 cm
• B - Length: 102 cm
• C - Width: 53 cm

Please note: There may be a difference of 0~5 cm between measured and actual data.

What's in the box?

• L20 3.0 Pro E-Bike *1

• Battery 48V 15Ah Samsung Lithium-Ion*1

• Charger 54.6V 8A *1

• Pedals *2

• Front & Rear Fenders *1

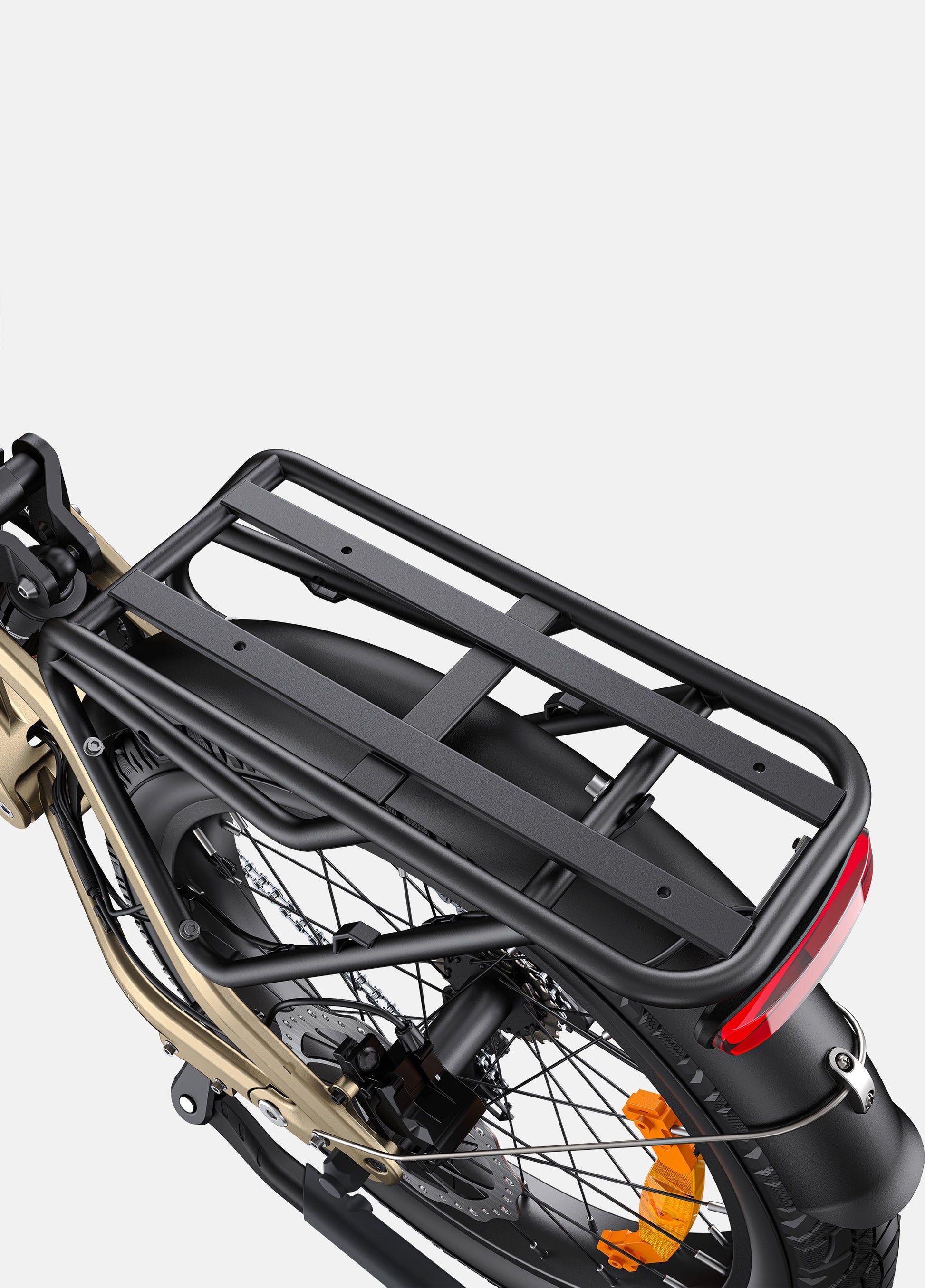

• Rear Rack *1

• Bike Kickstand *1

• Assembly Tools *1

• User Manual *1

FAQ

Q1: About shipping
*In Stock: Once your order confirmation is complete, we will begin shipping within the next 2 business days. This means that your item will start shipping on the 3rd business day after your order is confirmed.
*Pre Sale: Please refer to the product page for detailed pre-order shipping times.
*Out Of Stock: This means there is no stock in recently half a month.

*Shipped from UK warehouse, it takes approximately 5-7 working days to receive your e-bike. (Remote areas and islands are excluded from delivery.)
*If you have other special requirements or urgent delivery date, please communicate with our customer service team when placing your order, we will try our best to meet your needs.

• Important:
  Please make sure your delivery address and phone number are accurate and available when placing an order.

  If your order is shipped by BJS carrier, the delivery person will contact the recipient twice by phone to reserve a delivery time.

  Change the delivery time for free(Please call the BJS carrier at 01922 645 650):
  You must change the new delivery time 1 day before the reserved delivery time. (For example, if you reserved a delivery at 1 pm today, you must reserve a new delivery time before 1 pm yesterday).

  You have to bear the re-delivery cost:
  Under the premise that the delivery time has been agreed upon with you if the delivery person arrives at the delivery address and no one receives the goods, the goods will be returned to the warehouse. You need to pay the re-delivery cost. To avoid the cost of re-delivery, you can call the delivery person and ask your family or neighbors to sign for the package if you are inconvenient to sign the package at that time.
  If you change the delivery time between 24 hours from the agreed delivery time, the re-delivery cost will be incurred. (For example, if you reserved a delivery at 1 pm today, your reserve request was made after 1 pm yesterday).

  Please note: The express delivery company cannot be specified. We will arrange the most suitable express delivery for your delivery address.

Please Note: Remote areas will incur additional shipping charges, our free shipping policy does not cover this additional freight. You need to pay for the additional freight.
Please click here to learn if your location is the remote areas.
We will contact you after you place the order regarding to the details of the freight through email. Please pay close attention to your email after you place the order.

Q2: Compliance with EU regulations
Please click here to view the CE certificate for the L20 3.0 Pro.

Q3: ENGWE L20 3.0 Pro User Manual
Please click here to view L20 3.0 Pro User Manual.
