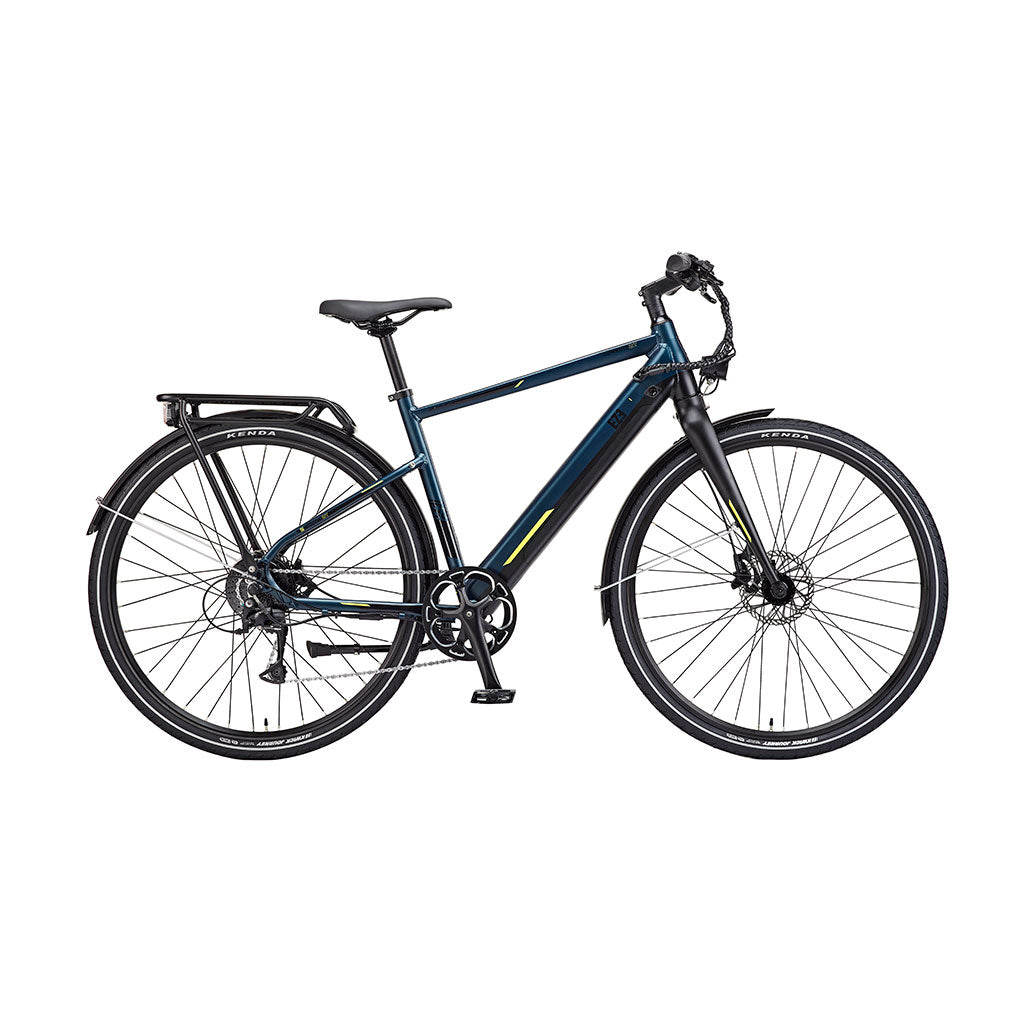

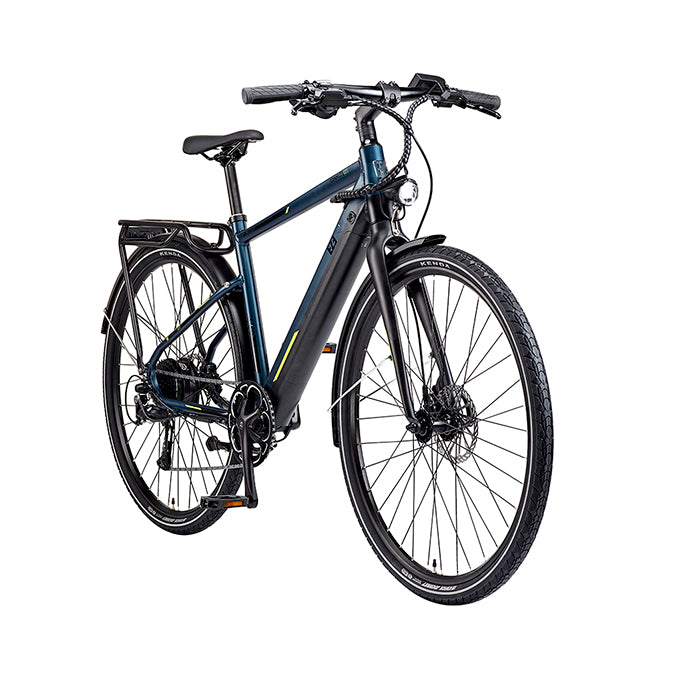

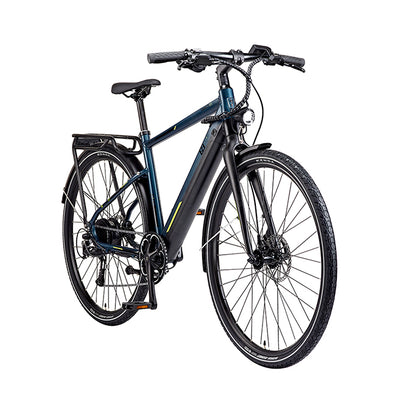

This year we have really upgraded this e-bike. Along with all the benefits from 2020, a new sleak mudguard and carrier combination along with hydraulic disc brakes really make this e-bike the perfect all-round riding companion. Featuring our latest integrated design, the 400Wh battery will keep you going for a good 40 miles, especially when coupled with this e-bike’s 9 speed gears and large 11-34T cassette.
Electric System

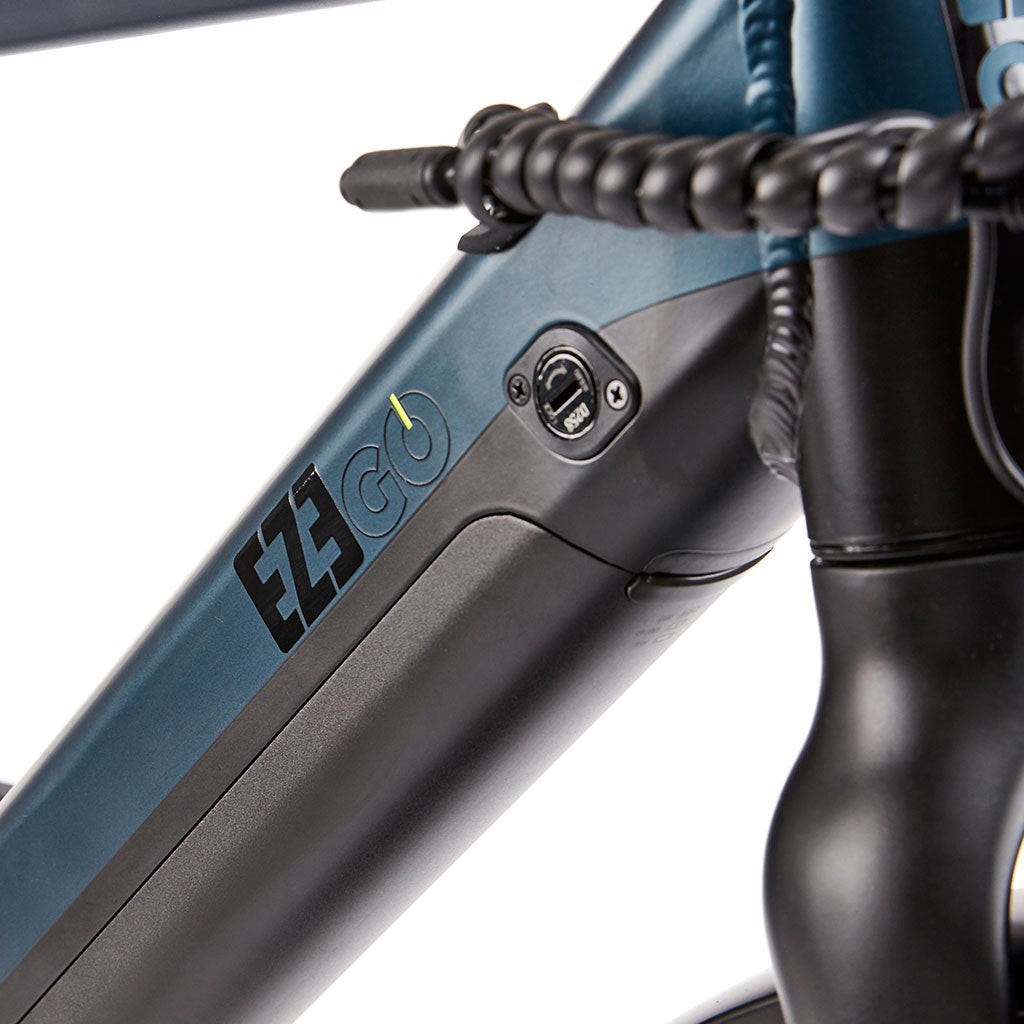

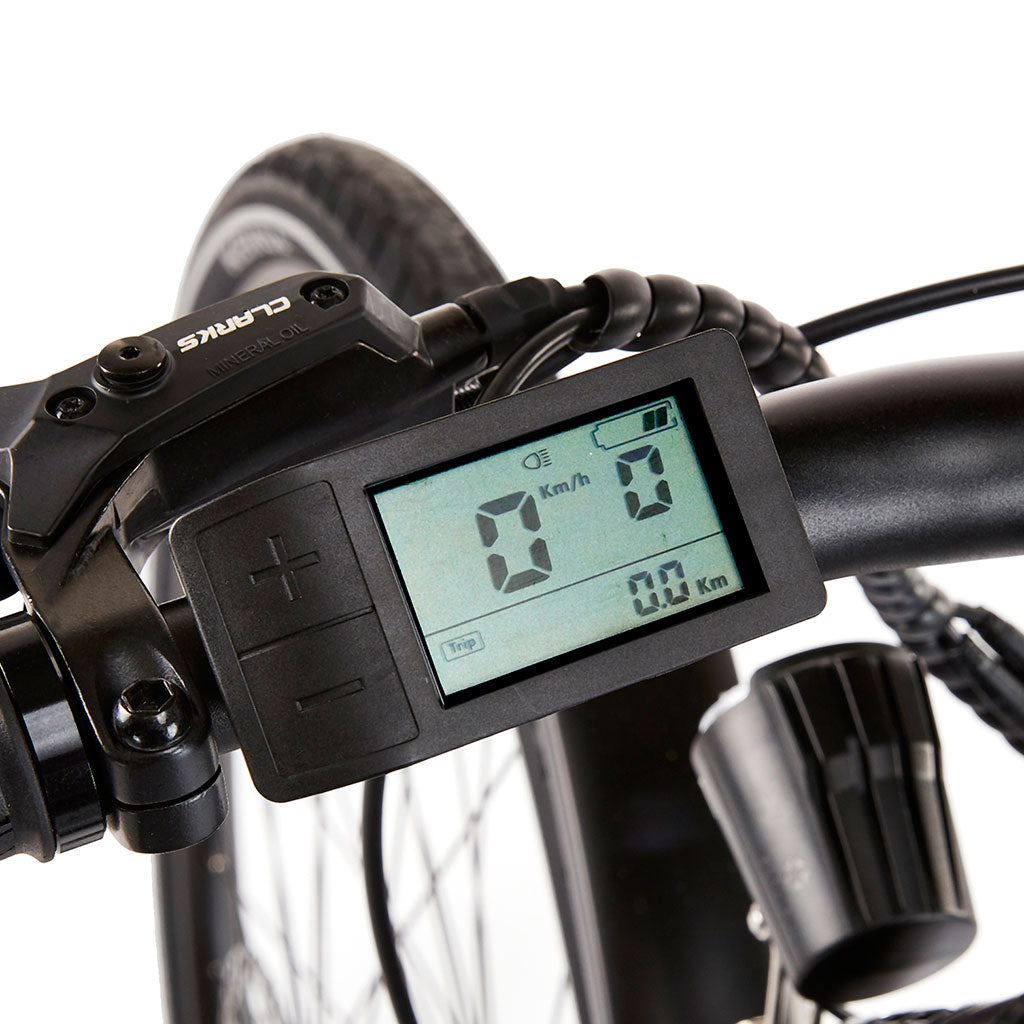

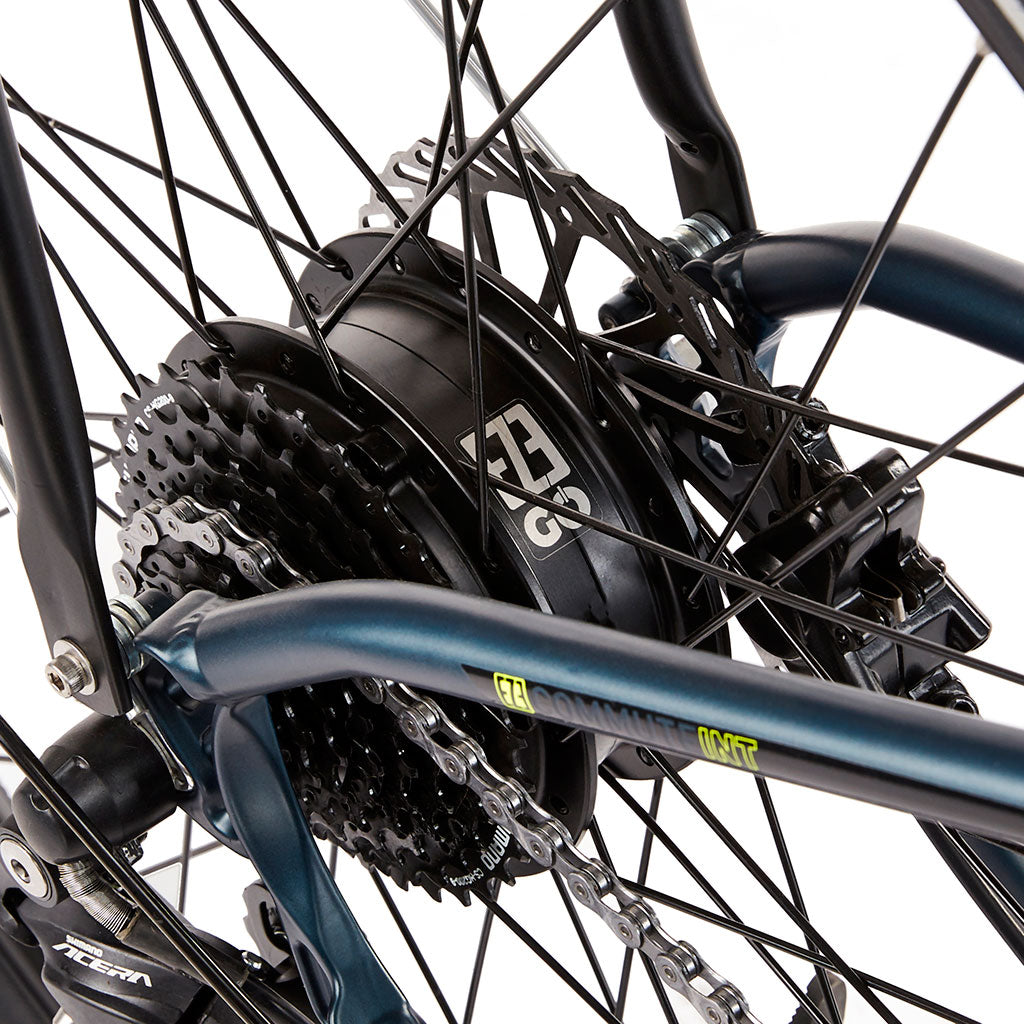

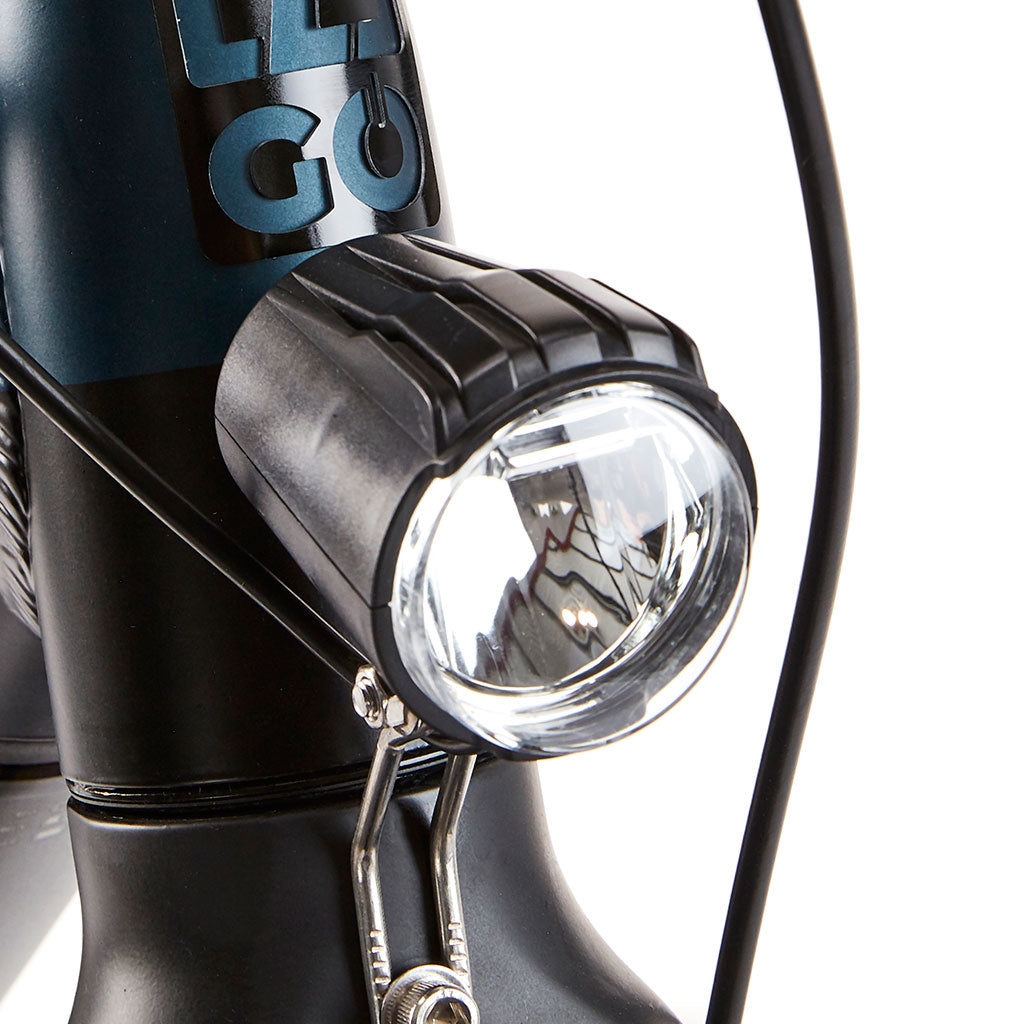

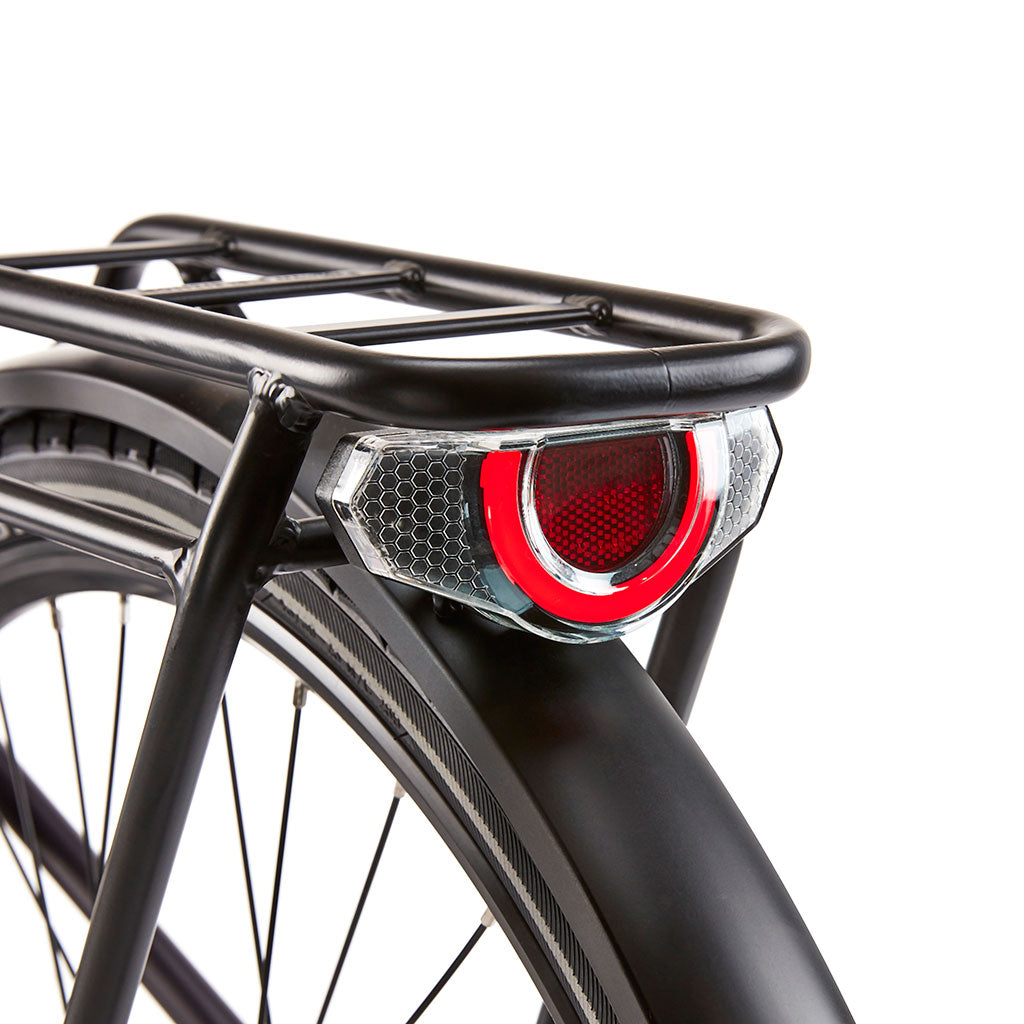

Motor 250w 36v rear hub brushless gear drive Torque Powerful 45Nm regulated to 15.5mph Battery 504Wh (14Ah) 36v internal with LG cells Range 45 miles (60km) based on average conditions Controller 540Wh (15Ah) 36v with throttle cable option Sensor 12 magnetic point speed sensor Display 5 mode LCD module with walk assist Charger 2Ah 36v smart charger - 4 hours charge time Cables Waterproof IP67 with quick connectors Lights Front & rear integrated lights
Components

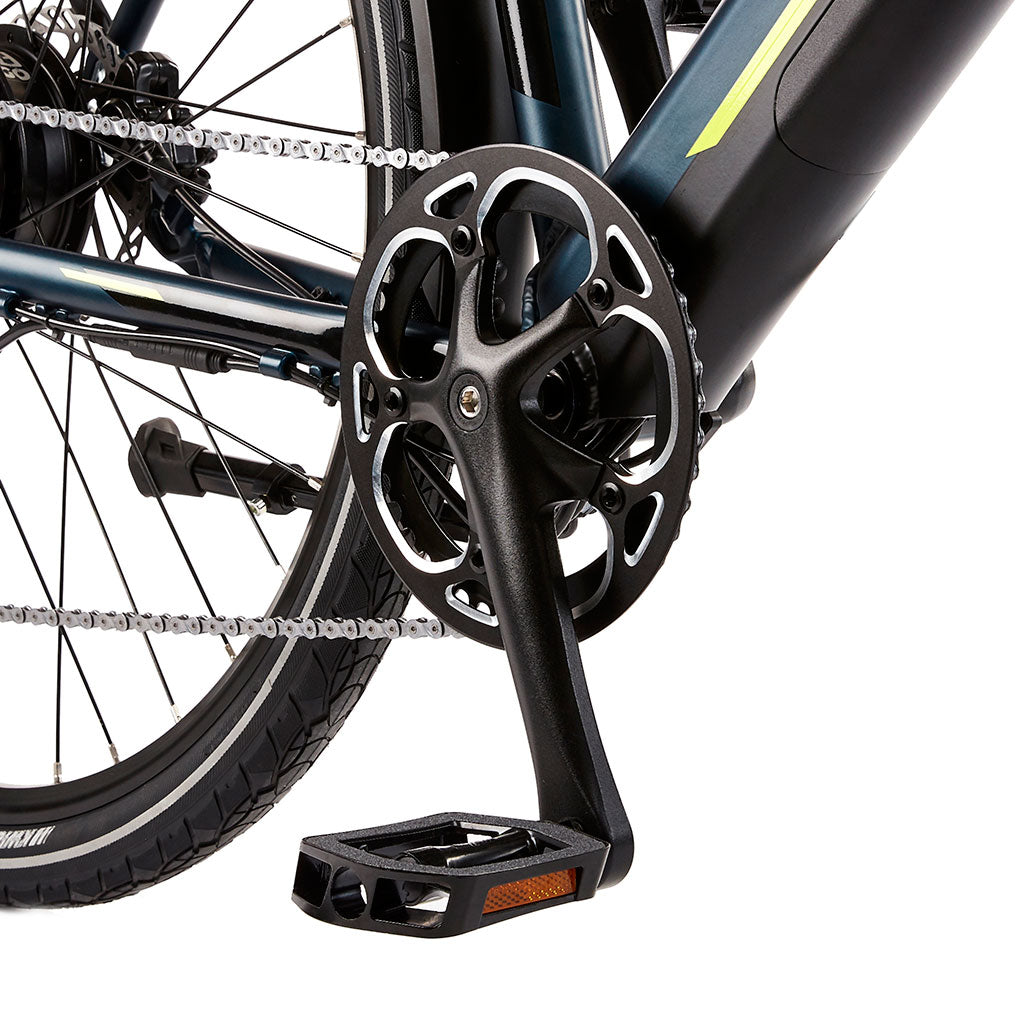

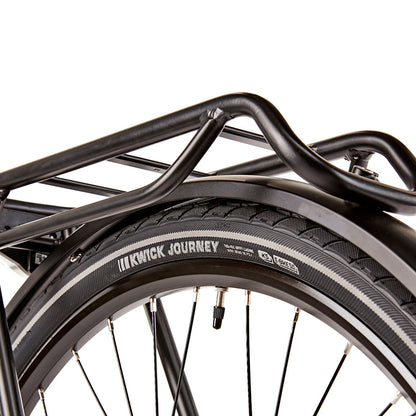

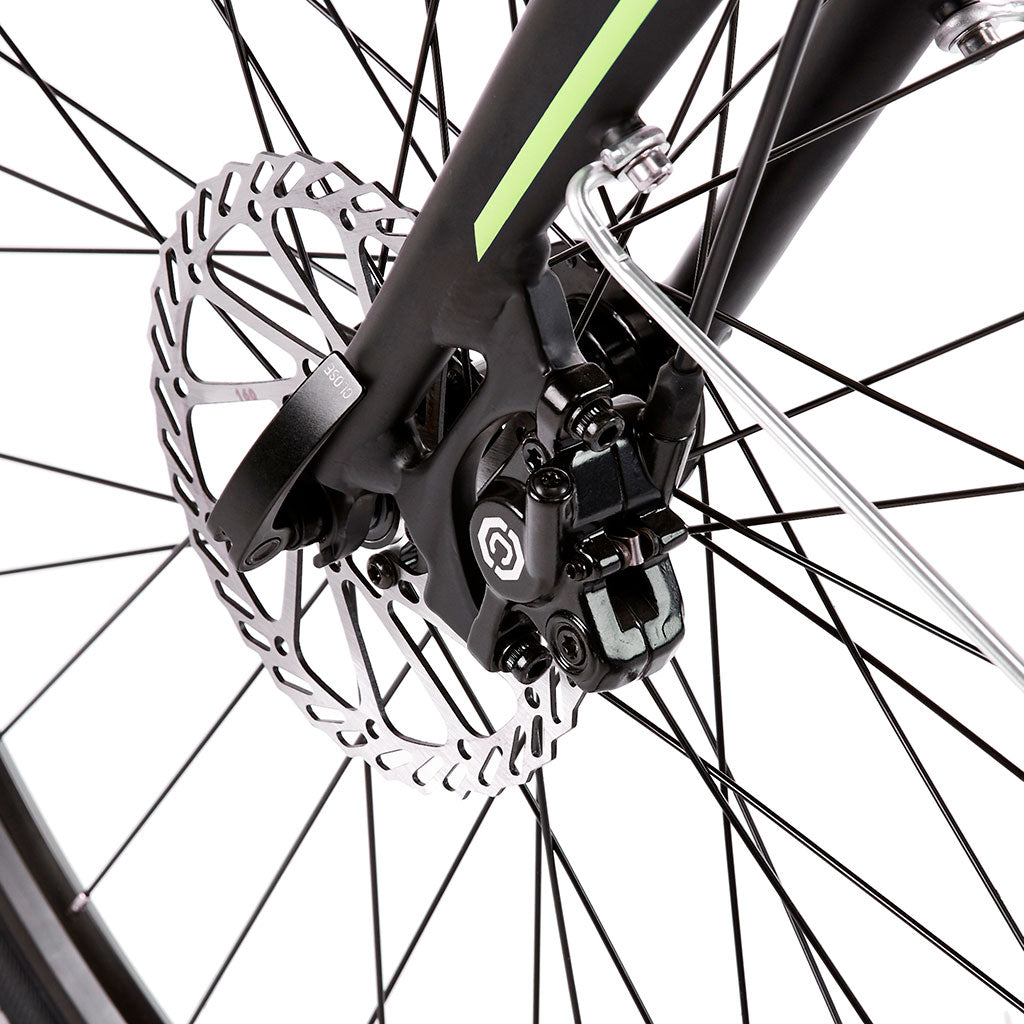

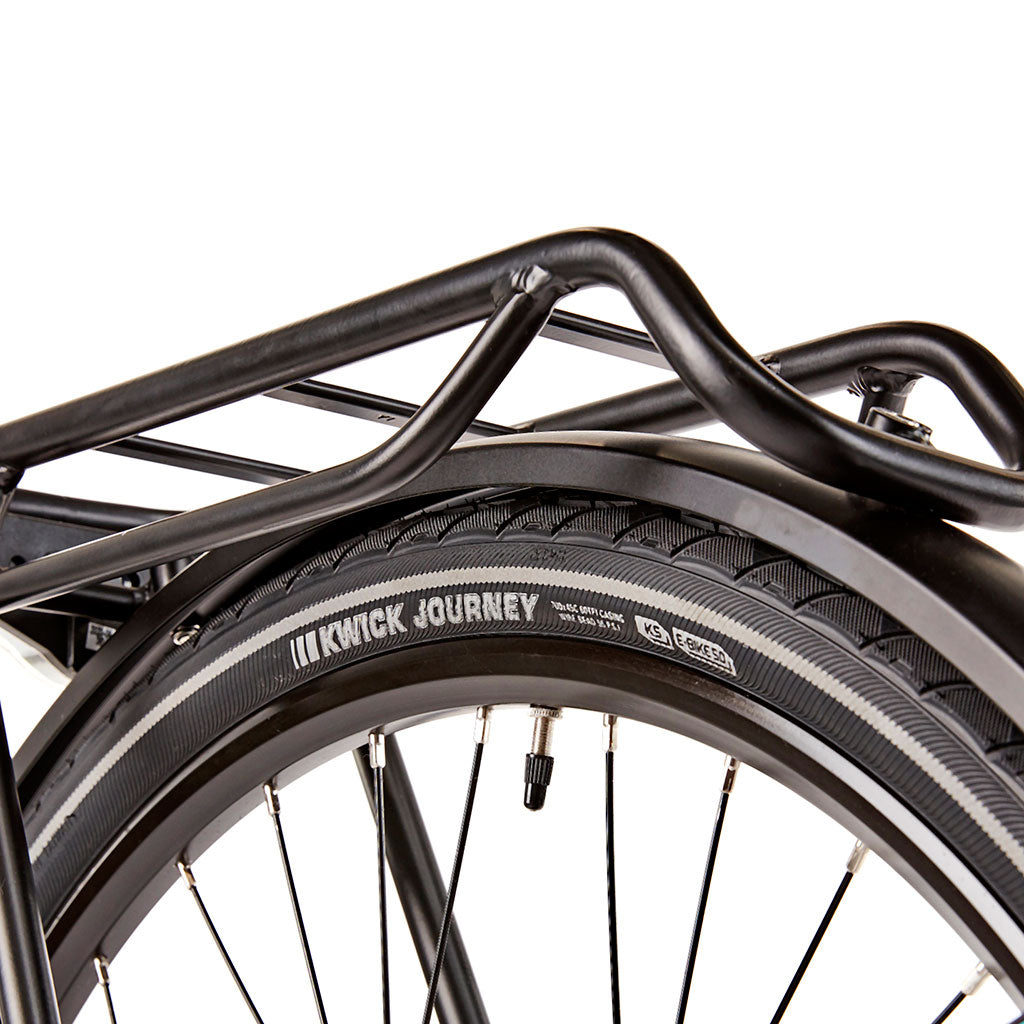

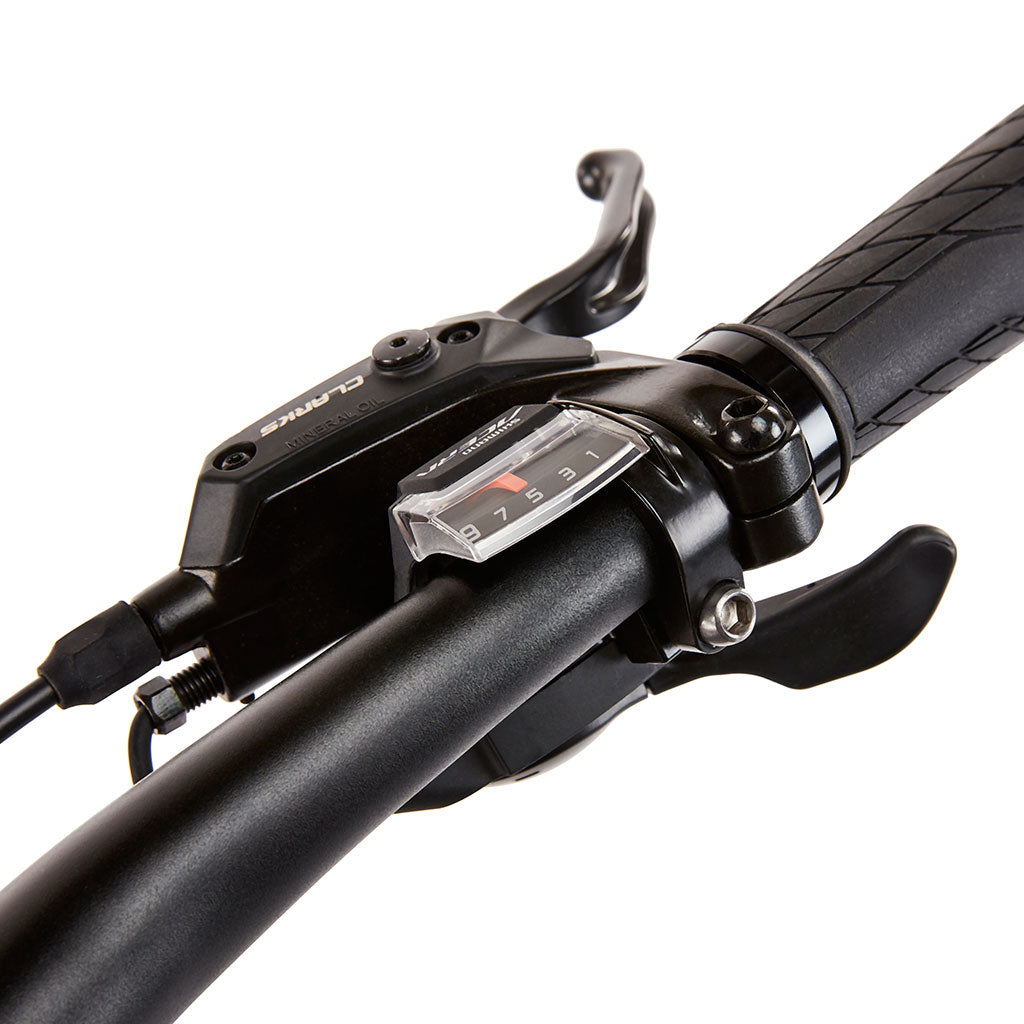

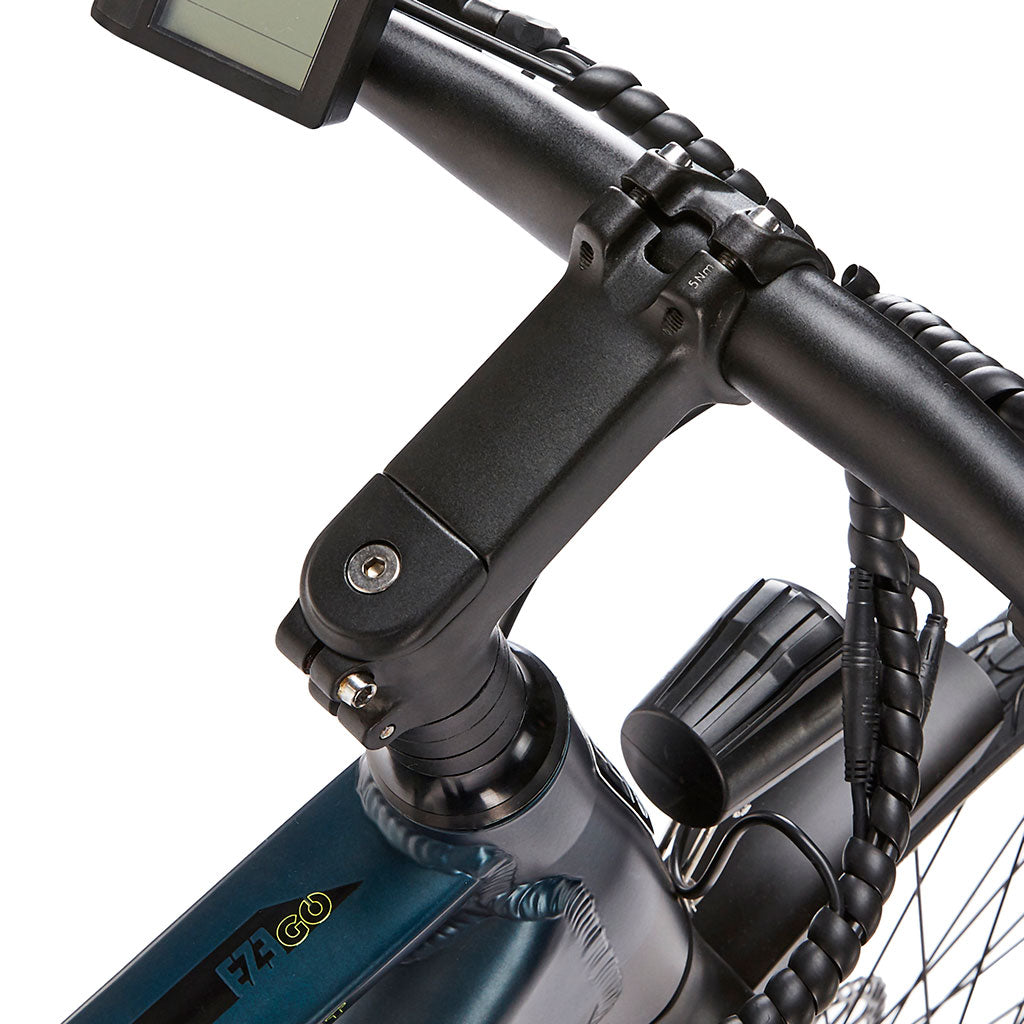

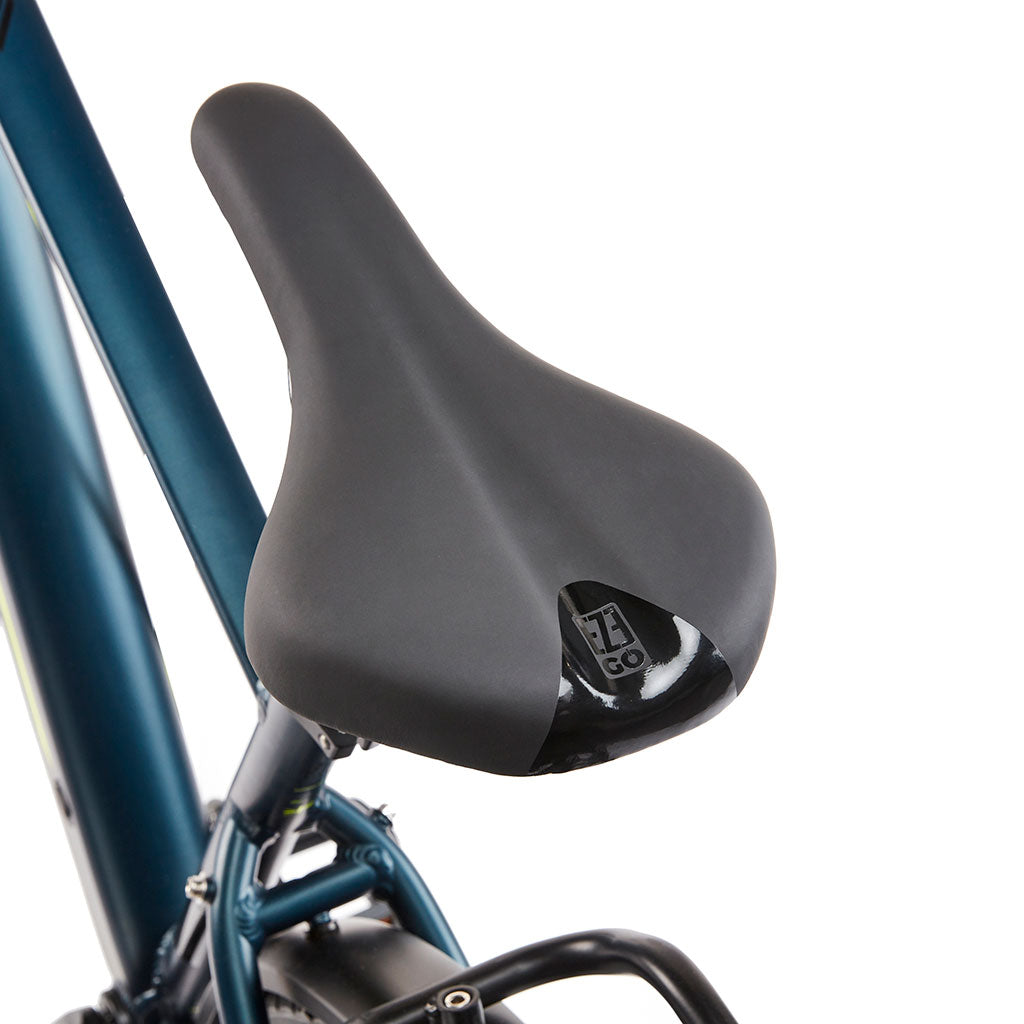

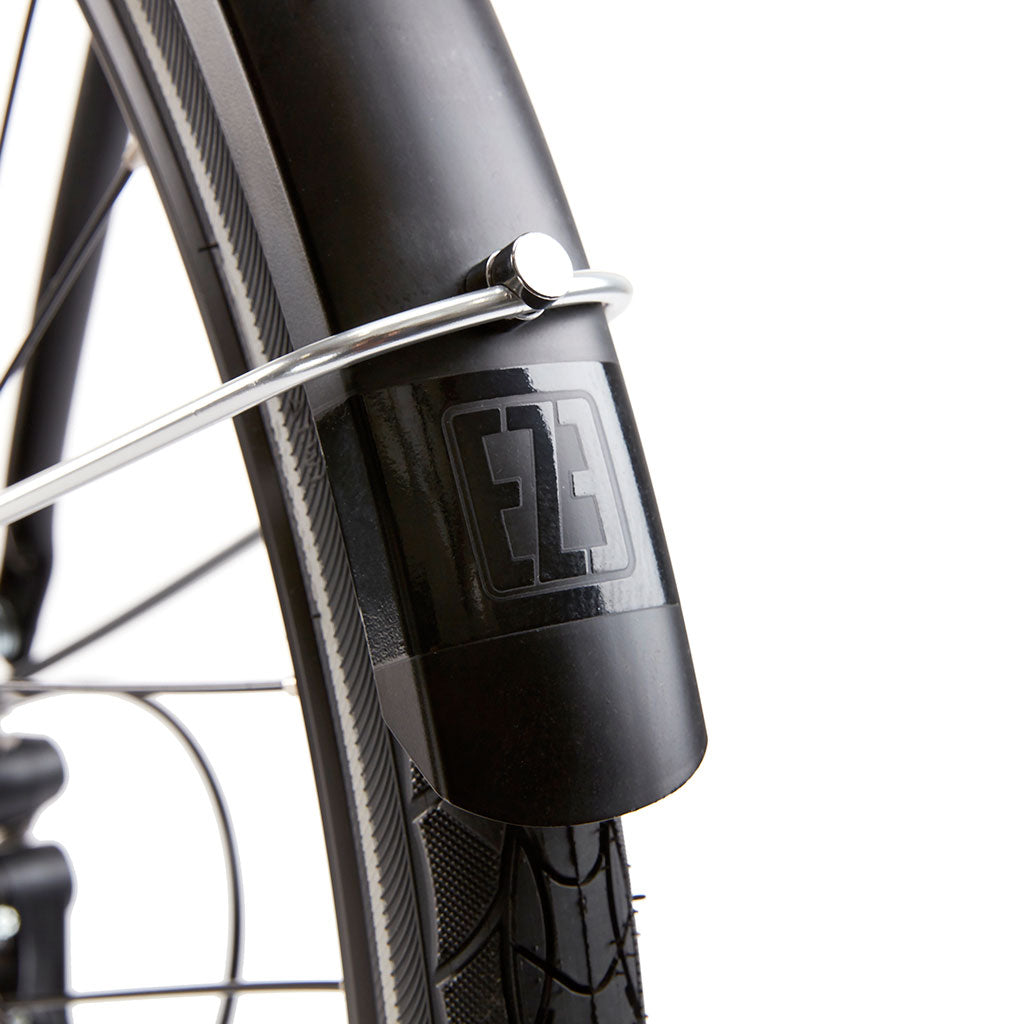

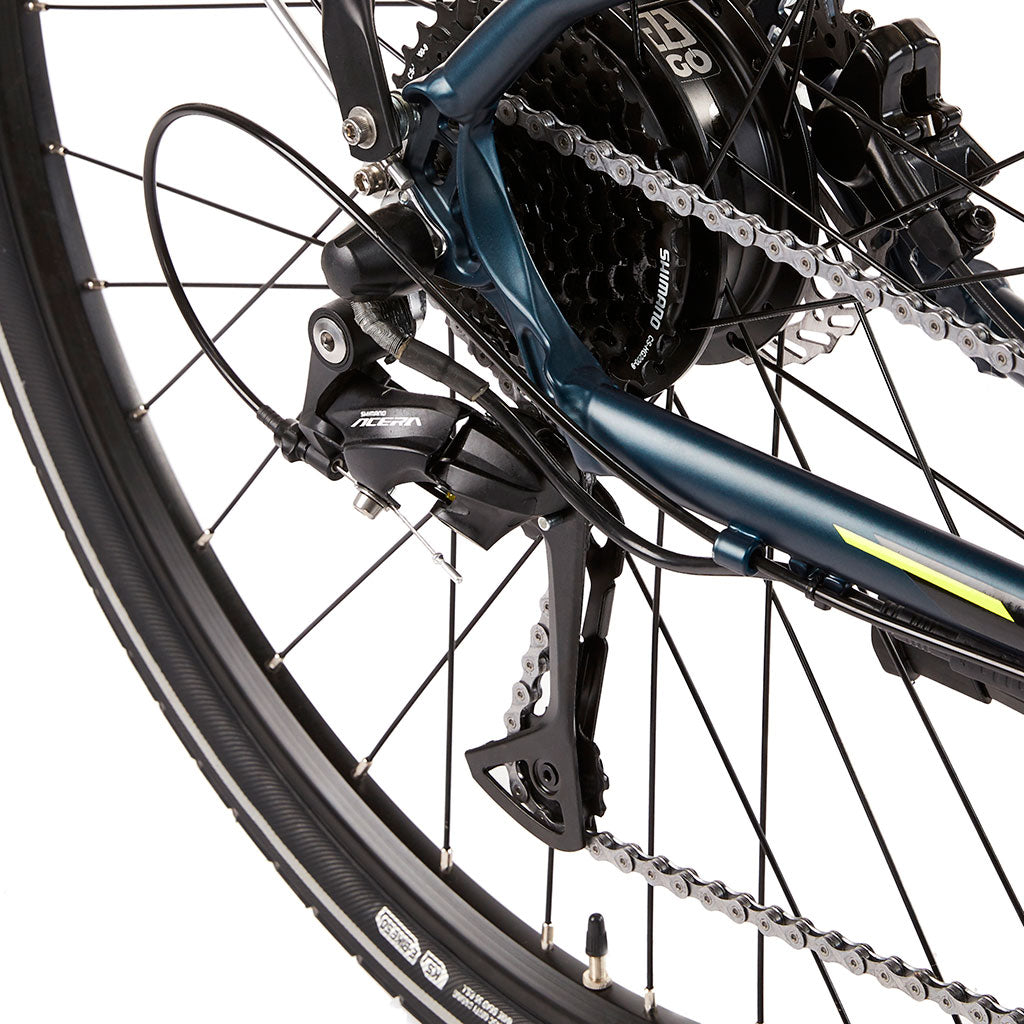

Frame Size 19" - suitable for 29.5" to 37.5" inside leg Frame Alloy urban with internal routed cables & battery Fork Alloy - carrier compatible Brakes Clarks hydraulic disc brakes Brake Levers Alloy 2 finger with safety power cut-off Brake Rotors 160mm front & rear Gear Shifters Shimano ALTUS RapidFire Plus Gear Derailleur Shimano ACERA 9 Speed Cassette Shimano 11-34 tooth Chainset Alloy 44 tooth 170mm with CNC finish Pedals Alloy with non-slip sandpaper finish Bottom Bracket Sealed cartridge Chain KMC X9 anti-rust Tyres Kenda Kwick Journey 700 x 45c puncture protect Inner Tubes High pressure Presta valve Rims Alloy double wall 36 hole Front Hub Alloy quick release with sealed bearings Spokes Stainless with brass nipples - 14 gauge front / 13 gauge rear Saddle Velo sports urban Seat Post Alloy dual adjust 350mm Seat Clamp Alloy with allen key bolt Handlebar Alloy 600mm - 31.8 bar bore Stem Alloy 70mm Grips Velo double density Palmwing with lockrings Headset Alloy semi-integrated with 4 spacers Mudguards Alloy with adjustable stays Rear Carrier Alloy integrated rear pannier with bungees straps Kickstand Alloy centre mounted
Information
Total Weight 20kgs eBike Weight 16.5kgs Battery Weight 3.5kgs Battery Life 75% after 500 cycles / 70% after 1000 cycles Colour Matt metallic green / black frame with black fork Assembly 99% - attach pedals, straighten / tighten handlebars
Warranty
Battery 500 cycles (approx. 2 years) Electrics 1 year Components 1 year (except wear & tear items)
Upgrades Available
Battery 504wh (14Ah) Stem Adjustable Display TFT Charger 4Ah fast charger & car adaptor travel charger
