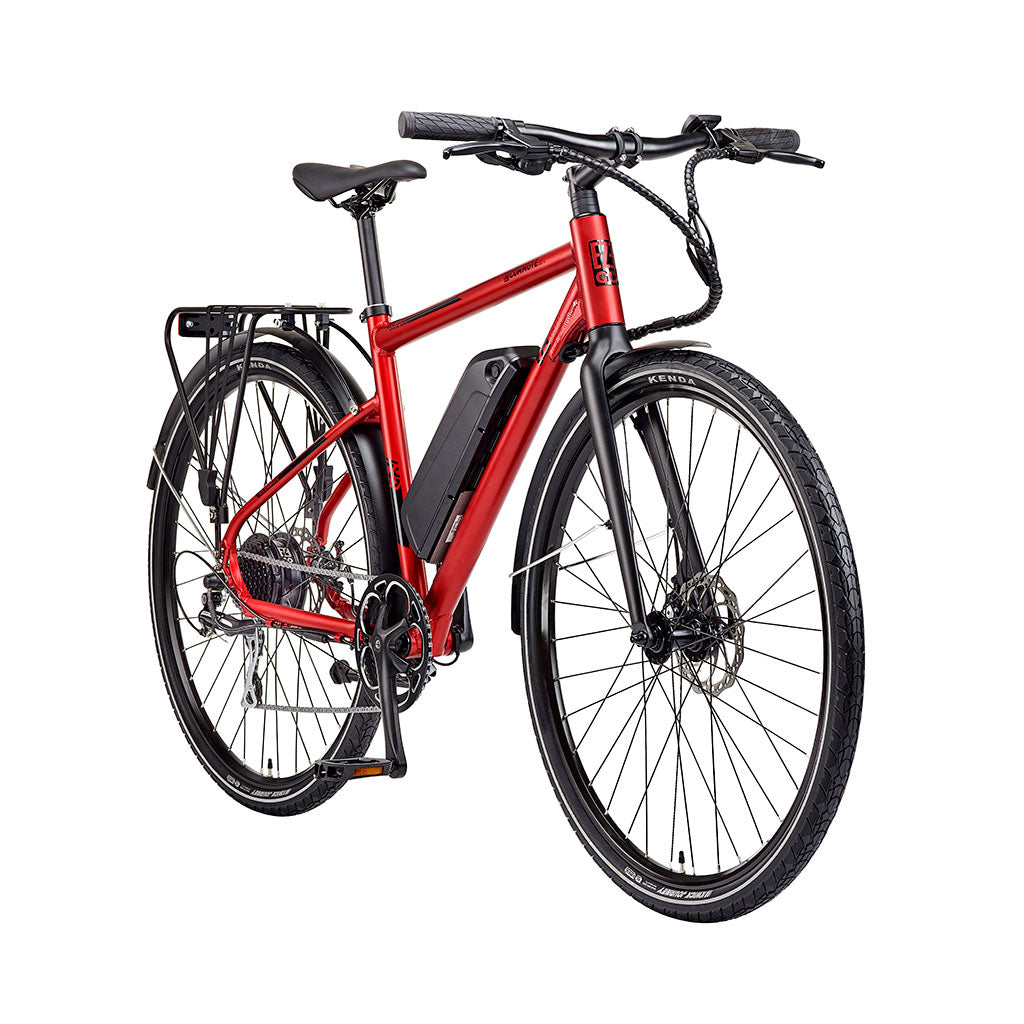

Commute EX Gents 19"

Don’t be fooled by this e-bike’s name, the Commute EX is just at home on those picturesque country trails as it is on the streets! Big tyres ensure a comfy ride, and a more upright position eases stress points on those long weekend jaunts, made so much easier by the large 400Wh Samsung powered battery.

Electric System

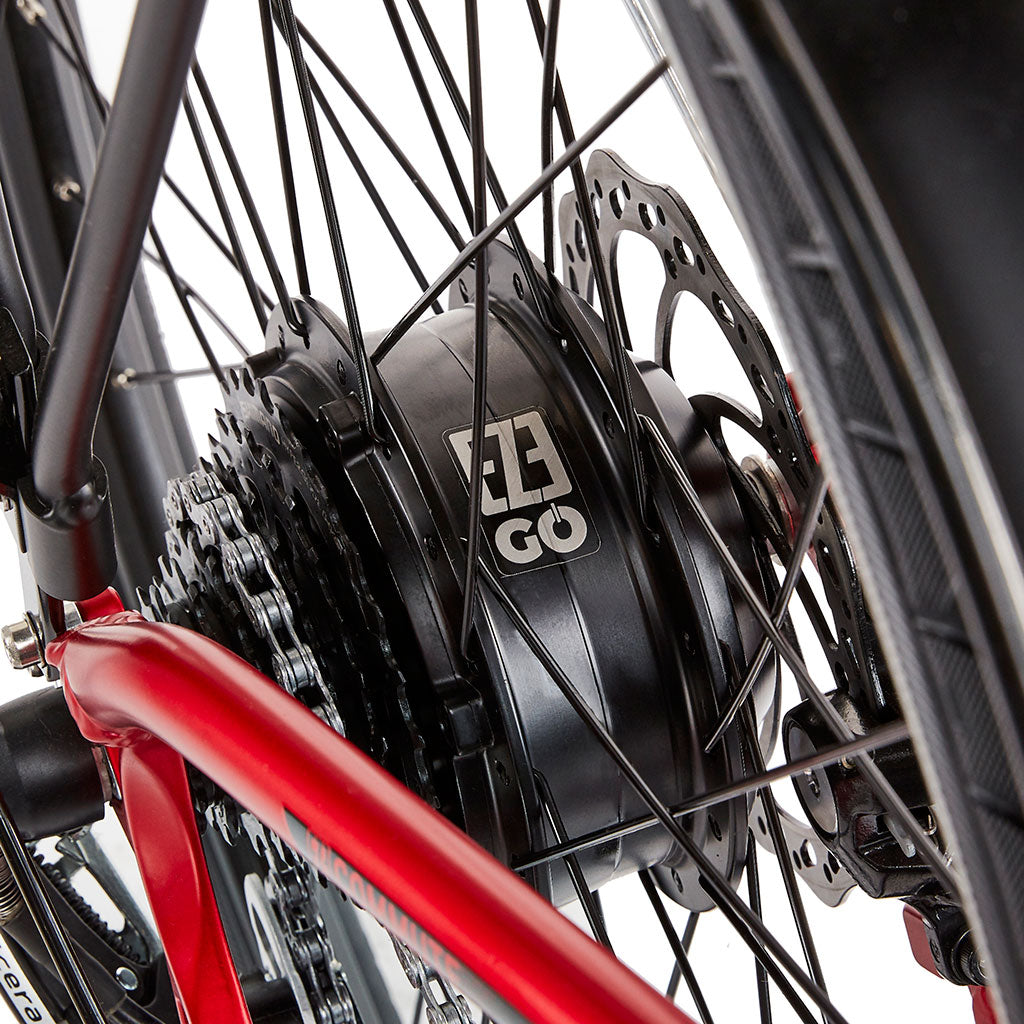

Motor 250w 36v rear hub brushless gear drive
Torque Powerful 45Nm regulated to 15.5mph
Battery 460Wh (11.6Ah) 36v with LG cells
Range 45 miles (60km) based on average conditions
Controller 540Wh (15Ah) 36v with throttle cable option
Sensor 12 magnetic point speed sensor
Display 5 mode LED module with walk assist
Charger 2Ah 36v smart charger - 4 hours charge time
Cables Waterproof IP67 with quick connectors

Components

Frame Size 19" - suitable for 29.5" to 37.5" inside leg
Frame Alloy urban with internal routed cables
Fork Alloy - lightset & carrier compatible
Brakes Promax mechanical disc brakes
Brake Levers Alloy 3 finger with safety power cut-off
Brake Rotors 160mm front & rear
Gear Shifters Shimano ALTUS RapidFire Plus
Gear Derailleur Shimano ACERA 8 Speed
Cassette Shimano 11-30 tooth
Chainset Alloy 44 tooth 170mm with CNC finish
Pedals Alloy with non-slip sandpaper finish
Bottom Bracket Sealed cartridge
Chain KMC X8 anti-rust

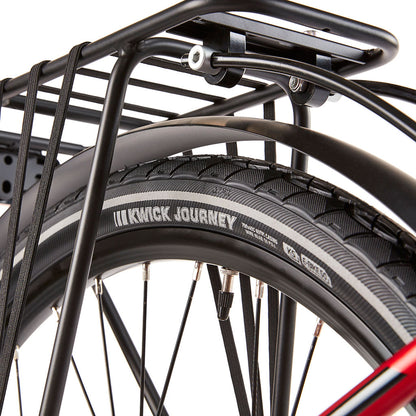

Tyres Kenda Kwick Journey 700 x 45c puncture protect
Inner Tubes High pressure Presta valve
Rims Alloy double wall 36 hole
Front Hub Alloy quick release with sealed bearings
Spokes Stainless with brass nipples - 14 gauge front / 13 gauge rear
Saddle Velo sports urban
Seat Post Alloy dual adjust 350mm
Seat Clamp Alloy with allen key bolt
Handlebar Alloy 600mm - 31.8 bar bore
Stem Alloy 100mm
Grips Velo double density Palmwing with lockrings
Headset Alloy semi-integrated with 4 spacers
Mudguards Alloy with adjustable stays
Rear Carrier Alloy rear pannier with bungees straps
Kickstand Alloy centre mounted

Information

Total Weight 19kgs
eBike Weight 15.5kgs
Battery Weight 3.5kgs
Battery Life 75% after 500 cycles / 70% after 1000 cycles
Colour Matt metallic red frame with black fork
Assembly 99% - attach pedals, straighten / tighten handlebars

Warranty

Battery 500 cycles (approx. 2 years)
Electrics 1 year
Components 1 year (except wear & tear items)

Upgrades Available

Battery 504wh (14Ah)
Stem Adjustable
Display LCD or TFT
Suspension Fork Suntour alloy with 63mm travel
Charger 4Ah fast charger & car adaptor travel charger
